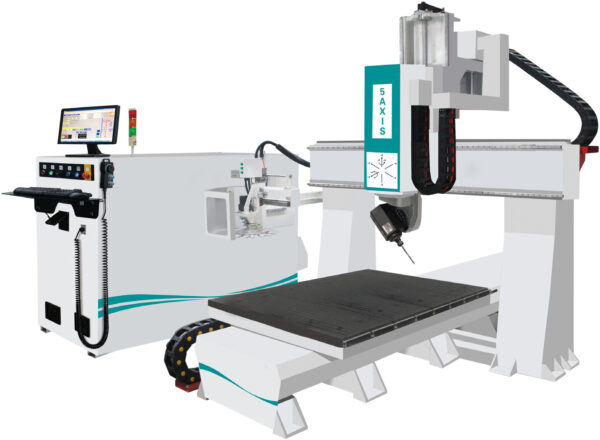

Techno CNC Systems 5-Axis CNC Working Center
Inventory # 9952
Model: 5-Axis
View the Techno CNC 5-Axis CNC Router PDF Here
Description:
The Techno Five-Axis CNC Working Center is designed for high-volume production shops with demanding applications that require high throughputs. The five synchronizing interpolated axes are well suited for 3D curved surface positioning and simultaneous motion for trimming formed parts, patterns, or molds. The machine is available in single or twin moving tables and is designed to double the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle
Features include all steel construction, THK HSR caged linear guide rails, precision helical rack-n-pinion on the X-axis with a ballscrew Y/Z axis drive, PC based Osai industrial CNC controller with easy-to-use system interface, 9 HP precision HSD Italian spindle, and multi-zone vacuum t-slot table, to name a few. The Y drive includes a precision gearbox that is directly coupled to the Servo motor and pinion. This provides high-speed, precision motion. All of the electronic components are housed in the NEMA double-door cabinet, which allows for easy access. This engineered masterpiece is the result of experience in the CNC router market
Specifications:
Process Area:
X-Axis Travel: 48″
Y-Axis Travel: 96″
Z-Axis Travel: 20″
Gantry Clearance: 29 1/2″
A-Axis Travel: +40° / -100°
C-Axis Travel: +/- 400° / -40°
Single Table Size: 50″ x 98″
Drive: Y Helical Rack and Pinion Drive, X/Z Ball Screw Drive
Table Structure: Vacuum
Spindle Speed: 18,000r /Min.
Tool Magazine: Carousel
Tool Position: 8
Travelling Speed:
X-Axis: 1,500″ /Min.
Y-Axis: 1,500″ /Min.
Z-Axis: 800″ /Min.
Spindle Motor: 9 HP
Standard Features:
Gantry – The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting
Gantry Support (Uprights) – The gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, and wiring harnesses
Vacuum Table – The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller parts processing (which requires a smaller segmented area)
Spindle – Comes standard with a 9 HP HSD high-frequency automatic tool changer. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders with fully programmable speeds from 6,000 to 24,000 RPM, and comes complete with pneumatically retractable vacuum hood
8-Tool Rotary Carousel – Includes an 8-position rotary carousel that moves with the machine while the gantry travels. The use of a carousel speeds up tool changes assuring faster cycle times increasing production capability
Linear Racks – Precision Helical gear racks on the X- and Y-axes. The use of Helical precision rack and pinion assures smooth precision cutting at high feed rates. In addition, the method in which the racks are mounted help reduce maintenance
Drive Motors – Utilizes high-powered AC Servo motors powered by Delta drives. These motors are brushless, therefore, requiring no regular maintenance, thus, reducing any maintenance downtime
Drive Train Assembly – The X-drive includes a precision gearbox which is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately
Bearings – Uses THK HSR bearings. These superior quality components complement the overall construction by providing smooth play-free motion. This results in superior cut quality, requires minimal maintenance, and increases the machines longevity
Electronics – All the electrical components are housed and wired in a double-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required
Vacuum Pump – TEFC (Totally Enclosed Fan-Cooled) Rotary Vane, available in 230v/460v, three phase or single phase. Comes standard with motor starter, vacuum gauge, primary and secondary. Filter, check valve, and all necessary plumbing to connect to router. Rated for ultra quiet operation
Hand-Held Pulse Generator – The hand-held pulse generator allows the operator to maneuver around when setting up tooling
CNC Windows-Based G-Code Interface – Included with each Techno 5-Axis machine and is an indispensable tool in any CNC router application. It’s open architectural design accepts G-Code giles from any industry standard CAD/CAM software package. The jogging buttons, speed controls, and run displays are all visible on the main page. The intuitive single-screen design and functions are easy to use and remember. Customers that are new to automation find the Techno CNC interface easy to learn and operate. Most are up and running in less than one day. Customers soon discover that just because the Techno CNC interface is easy to use does not mean that it is not a comprehensive CNC program
Several Impressive Features Include:
– Built-in editor for shop floor modifications
– Machine feed rate and spindle override control
– Continuous step jogging, or convenient hand-held pulse generator can be used to fine tune positional locations
– Mechanical homing locations controls (at any corner of the machine)
– No DNC link required
– Allows for up to 10 fixture offsets
– I/O machine status display
– Skip function to return to program positions (in case of tool bit failure)
– Convenient vacuum pump switches on interface
– Real time file execution even if overrides used
FOB Factory – Contact us for pricing and availability
