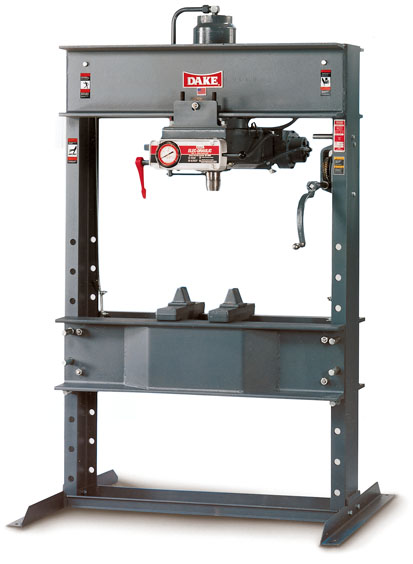

Dake “Elec-draulic” 75 Ton Hydraulic H-Frame Press, 5-075

Shipping: Add to Cart to Calculate

SKU: 5-075

Inventory #: 4925

Categories: ,





Dake “Elec-draulic” 75 Ton Hydraulic H-Frame Press, 5-075

Inventory # 4925

Model: 5-075

MPN # 905075

Made in USA


An advanced design, single-acting press with fingertip control


Capacity: 75 Tons

Width Between Uprights: 44″

Width Between Table Channels: 8 1/4″

Min. Ram to Table: 6″

Max. Ram to Table: 36″

Speed: 1,800 RPM

Ram Speed-Advance: 28

Ram Speed-Press: 5

Ram Travel: 10

Horizontal Workhead Travel: 24

Motor: 2 HP / 220v / 3ph (Conversion to 440v is an additional cost.)

Standard Features:

Electric operation provides smooth, consistent pressing action

Rapid ram approach quickly moves ram to work to save production time

Movable workhead is roller mounted on ball bearings for off-center work

Safety valve protects against overloads

Adjustable table permits easy vertical movement by means of self-locking hoist

Single-acting cylinder provides fast, reliable pressing and internal spring return

Variable ram speed allows fingertip control of ram movement for precise pressure control

Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve

Stroke indicator ensures accurate ram control

Standard Equipment:


Two Forged Steel V-Blocks

Flat Ram Nose

Pressure Gauge

Self-Locking Table Hoist


Two Forged Steel Table Plates

V-Ram Nose

Stroke Indicator

Safety Relief Valve

Mechanical Specifications:

Dimensions: 55 1/2″ x 36″ x 86″ H

Weight: approx. 1,650 lbs.

Contact us for special pricing and availability

FOB Factory
