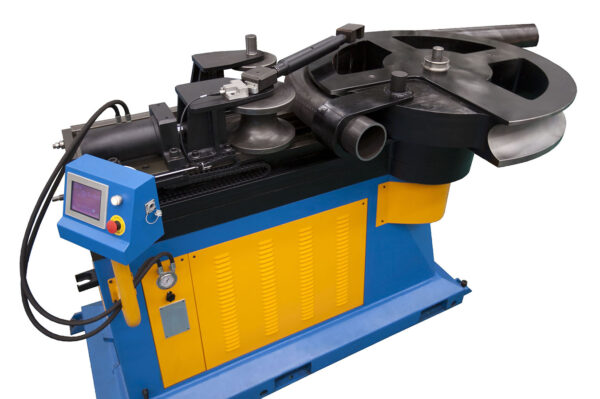

Ercolina Top Bender® 6" Tube / Pipe Bender, TB180

Ercolina Top Bender® 6″ Tube / Pipe Bender, TB180

$139,000.00


Shipping: Add to Cart to Calculate

In stock

Make Offer

SKU: TB180

Inventory #: 7453

Category:

Condition:

Type:

Brand:

Product Description

Ercolina Top Bender® 6″ Tube/Pipe Bender, TB180

Inventory # 7453

Model: TB180

Specifications:

Tube (Min.): 1¼″, (Max.) 6″ – .120 wall

Pipe (Max.): 6″ Sch. 40

Centerline Radius (Min.): 3 x Ø, (Max.) 39 1/4″

Degree of Bend: 0-210°

Bending Speed: Variable to 1 RPM

Programming: Touch screen, Unlimited storage with USB, (12) bends per program

Voltage: 480 v / 3ph

Standard Features:

Ideal for producing consistent quality bends in large pipe, tube, squares, solids and other profiles

Touch screen control offers easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability

Quick-change tooling system with multiple radii available

Digital display of bend angle

Bend any angle to 180° with independent material springback compensation for each bend

Hand-held control of bend, return and emergency stop functions

Hydraulically operated counterbending die vise to control material springback

Swing away counterbending die vise for easy material handling

Counterbending die vise position monitored electronically for accuracy and repeatability

Heavy-duty steel gear cas

Mechanical Specifications:

Dimensions: 75″ x 40″ x 59″ H

Weight: approx. 6,000 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight6300 lbs
