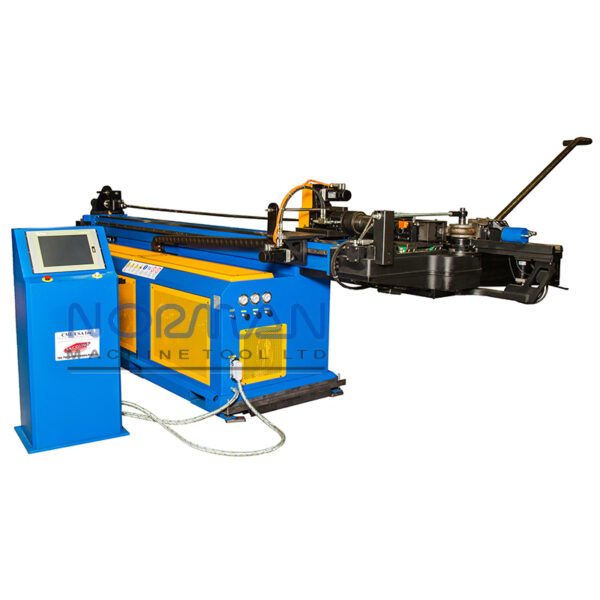

Ercolina 13' Automatic 3-Axis CNC Mandrel Bender, Erco 65
Ercolina 13' Automatic 3-Axis CNC Mandrel Bender, Erco 65

Ercolina 13′ Automatic 3-Axis CNC Mandrel Bender, Erco 65

$129,000.00


Shipping: Add to Cart to Calculate

Make Offer

SKU: Erco 65

Inventory #: 7457

Category:

Condition:

Type:

Brand:

Product Description

Ercolina 13′ Automatic 3-Axis CNC Mandrel Bender, Erco 65

Inventory # 7457

Model: Erco 65

Specifications:

Max. Tube Capacity:

Mild Steel: 2 1/2″ (.083 wall)

Stainless: 2 1/2″ (.065 wall)

Max. Pipe Capacity 1 1/2″ Sch. 40

Max. Bending Radius 9.8″

Min. Bending Radius 1.5 x Ø

Max. Shaft Rotation 210°

Max. Bending Angle 185°

Max. Tailstock Capacity 2 1/2″

Interactive Touch Screen Control 10″ color screen

Max. Material Length – Standard table 13′

Minimum Underhead Swing Clearance 12″

Length of Bending Head 59″

Nominal Hydraulic Pressure 150 bar

Maximum Carriage Travel 125″

Number of Programs Unlimited with USB

Precision of Bend Angle +/- .5°

Bending Speed Programmable

Voltage: 480v / 3ph

Standard Features:

Extended bending head capable of bending complex shapes and profiles

Automatic or manual bend sequencing

Independent pressure and clamp die adjustment

Programmable carriage movement for tight radii

Interactive touch screen with auto and manual operating modes, system diagnostics and multiple language capability

Standard right hand bending direction

Programmable material springback settings for each bend angle

Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality

Programmable tail stock interference zone monitors position and eliminates workhead collision

USB for unlimited program memory storage and communication

Hand-held remote bending control, certified class 3 safety and all electrical components UL, CSA and CE approved

Graphic bend simulation software included; Programmable internal mandrel lubrication (3 settings), high capacity with auxiliary hydraulic oil cooling, quick-change tooling system, standard 13′ table with extension available, tail stock with through spindle accepts longer material, displays absolute (ABS) or incremental (INC) positioning with inch or metric read out, accepts YBC and XYZ input values, Y – feeding electric servo, B – Rotation Electric Servo, C – Bending Hydraulic CNC

Produce handrail to design in minutes

Dramatically reduce operator handling and shop labor cost

Improve quality to your customers providing mandrel quality bends in steel, stainless and aluminum

Eliminate additional cost of weld elbows, material waste, weld, grind and finish operations

Control your production time and process

Quickly store and recall previous handrail programs

Ercolina’s tool set data files maintain machine start position enabling the operator to quickly change to the next job

CNC control imports engineering files from CAD style software, or create your own data with included Bend-Tech software

Professional on-site machine training included

Mechanical Specifications:

Dimensions: 205″ x 44″ x 52″ H

Weight: approx. 7,200 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight7500 lbs
