Eagle eVision Series Fiber Laser Cutting System, 1530
Inventory # 8306
Model: 1530, eVision Series
Description:
The eVision laser cutting machines are designed for diverse production. Whether you are running large or small production
batches, cutting thin or thick sheets, this machine will deliver 24 hours a day 7 days a week. Designed with many of the
same components as the iNspire series, the eVision delivers incredible top speed, supports the highest fiber laser power
available today, and delivers excellent acceleration
With cutting speeds of 5,906″ per minute, positioning speed of 9,843″ per minute, acceleration of nearly 3G, and fiber laser
power from 1 to 15 kW, the eVision systems are ready to take your shop’s production to the next level
Specifications:
Cutting Speed: Max. 5,906″ /Min.
Positioning: 7,087″ /Min.
Accelerations: 3G
Laser Sources: 1 – 15 kW
Working Area:
X-Axis: 120″
Y-Axis: 61″
Z-Axis: 4″
Max. Sheet Weight: 1,984 lbs.
Max. Speeds:
Parallel to X, Y, Z-Axis: 5,906″ /Min.
Simultaneously: 7,087″ /Min.
Axis Parameters:
Repeatability: .118″
Cutting Precision: .0393″
Accelerations: 3G
Min. Programmable: .0393″
Standard Features:
Fiber laser source
Linear motors on all axes
Advanced body structure of composite material
Traverse bridge of rigid steel
Intelligent cutting head processes entire spectrum of sheet thickness
Superfast pallet changer without hydraulics
Mechanical Specifications:
Dimensions: 394″ x 121″ x 120″ H
Weight: approx. 39,904 lbs.
Contact us for special pricing and availability
FOB Factory

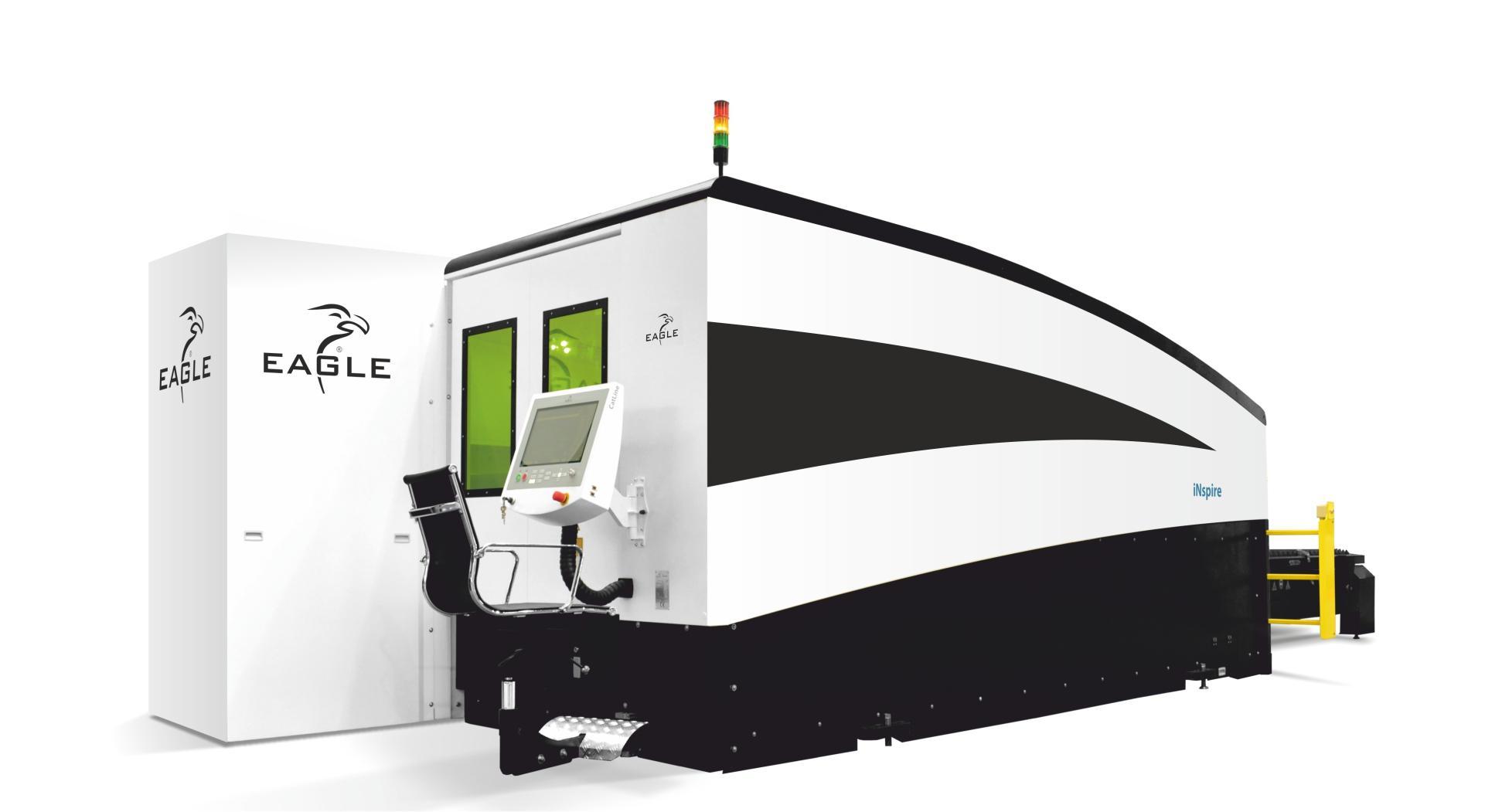

Please Note: Photo is of the iNspire Series and is for Representation Only. Actual Product Purchased Will Differ in Appearance
