Dake 50 Ton “Elec-Draulic II” Press, 8-050

Shipping: Add to Cart to Calculate

SKU: 8-050

Inventory #: 8427

Categories: ,

Condition:

Type:

Brand:

Description

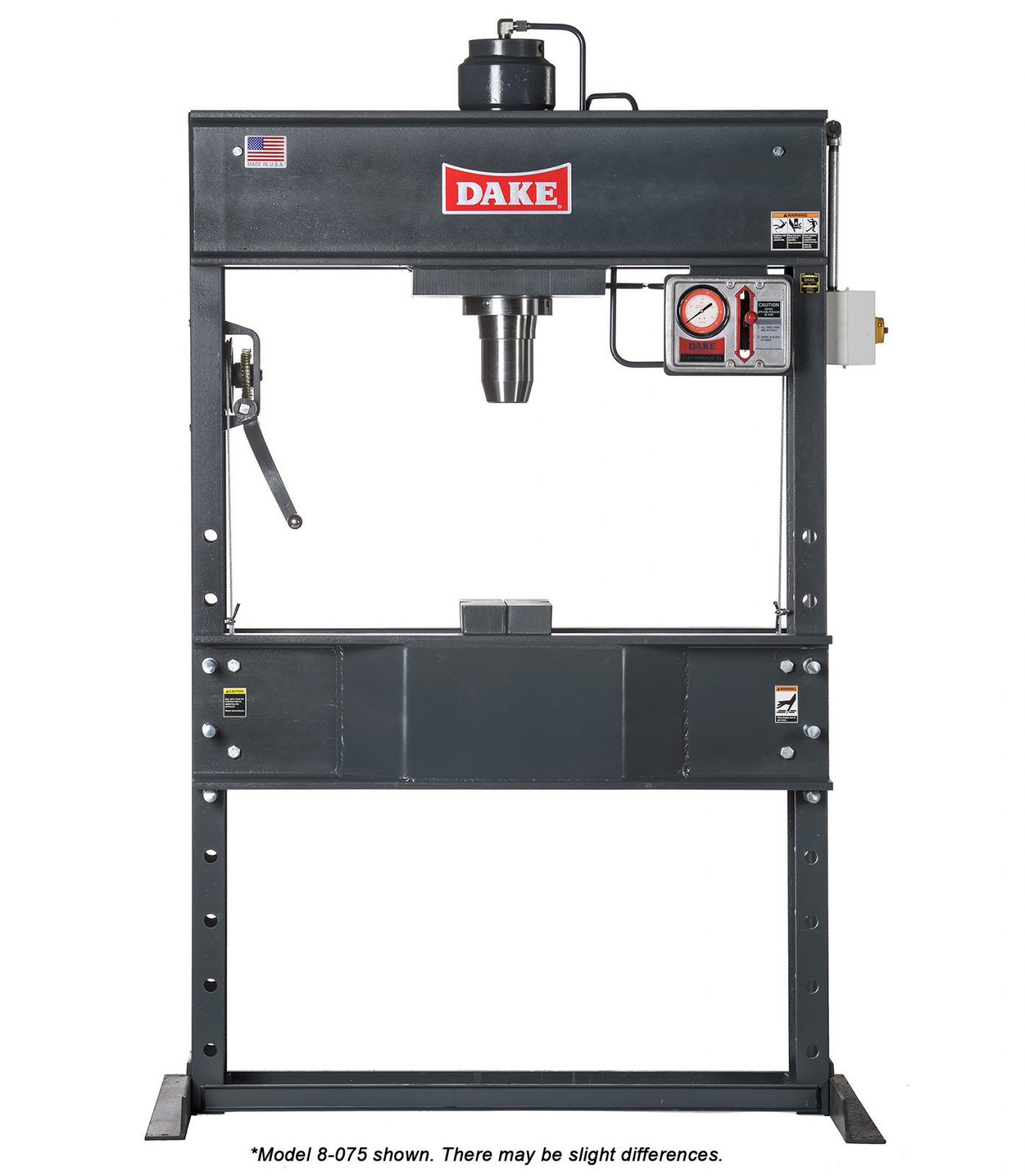

Dake 50 Ton “Elec-Draulic II” Press, 8-050

Inventory # 8427

Model: 8-050

P/N: 908050

Description:

The 50 ton elec-hydraulic II dual acting press has a 2 HP motor, 8 IPM pressing speed, and is 86″ tall. The dual acting ram
allows for super-sensitive ram control with simple operation

Specifications:

Capacity:

Pressing: 50 Tons

Pulling: 18 Tons

Operation: Electric

Width Between Uprights: 32 3/4″

Width Between Table Channels: 7 1/4″

Min. Ram to Table: 10 1/8″

Max. Ram to Table: 46 1/8″

Ram Travel: 10″

Pressing Speed: 8 IPM

Speed: 1,800 RPM

Motor: 2 HP / 220v, 440v / 3ph

Standard Features:

Electric operation provides smooth, consistent pressing action

Variable ram speed allows fingertip control of ram movement for precise control

H-frame mounted control allows convenient control of press when workhead is out of operator’s reach

Adjustable table permits easy vertical movement by means of self-locking hoist

Double-acting cylinder permits pulling as well as pressing ram action

Safety valve protects against overloads

T-ring seals prevent pressure loss

Standard Equipment:

Frame

Two Steel V-Blocks

Flat Ram Nose

Pump

Safety Relief Valve

Self-Locking Table Hoist

Double Acting Workhead

Two Steel Table Plates

Pressure Gauge

Mechanical Specifications:

Dimensions: 43 1/2″ x 36″ x 86″ H

Weight: approx. 1,360 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1460 lbs
