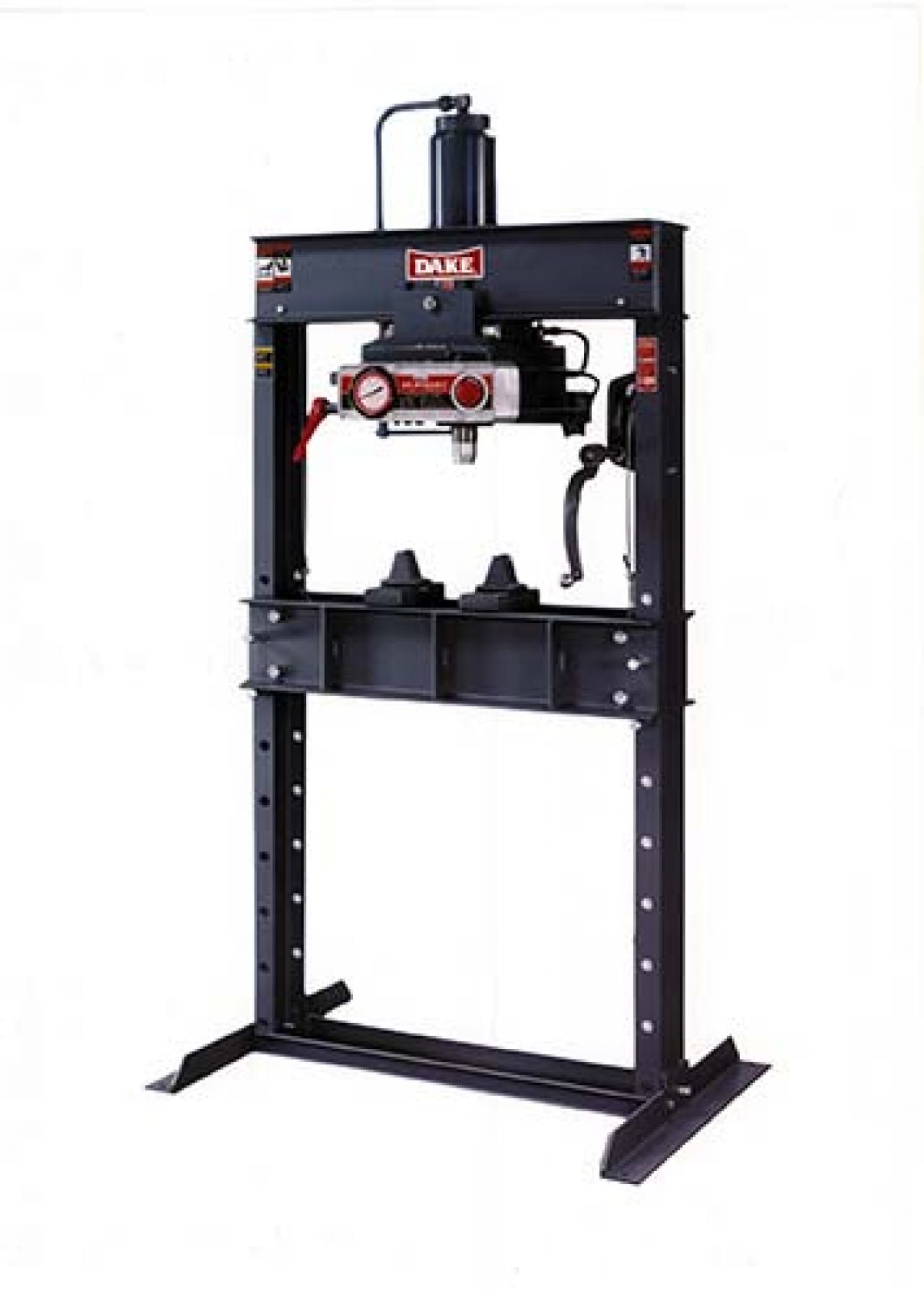

Dake 50 Ton Air Operated Press, 6-450
Inventory # 8422
Model: 6-450
P/N: 906450
Description:
Offering 50 tons of pressing power, this air operated press eliminates the need for hand pumping with either a single or
dual pump option. Standing 87″ tall, this press offer 55 IMP ram advance speed
Specifications:
Capacity: 50 Tons
Operation: Air
Width Between Uprights: 32 3/4″
Width Between Table Channels: 7 1/4″
Min. Ram to Table: 5″
Max. Ram to Table: 40″
Ram Travel: 10″
Horizontal Workhead Travel: 13 3/4″
Ram Advance Speed: 55 IPM
Pressing Speed: 5 IPM
Number of Pumps: 2
Air Pressure: 90 – 125 PSI
Standard Features:
Air operation eliminates the need for hand pumping
By-pass hole prevents excessive ram extension
Rapid ram approach quickly moves ram to work to save production time
Adjustable table permits easy vertical movement by means of self-locking hoist
Double pump for faster pressing
Standard Equipment:
Frame
Two Steel V-Blocks
Flat Ram Nose
Stroke Indicator
Safety Relief Valve
Workhead
Two Steel Table Plates
Pressure Gauge
Self Locking Table Hoist
Mechanical Specifications:
Dimensions: 43 1/2″ x 36″ x 87″ H
Weight: approx. 1,150 lbs.
Contact us for special pricing and availability
FOB Factory
