Description

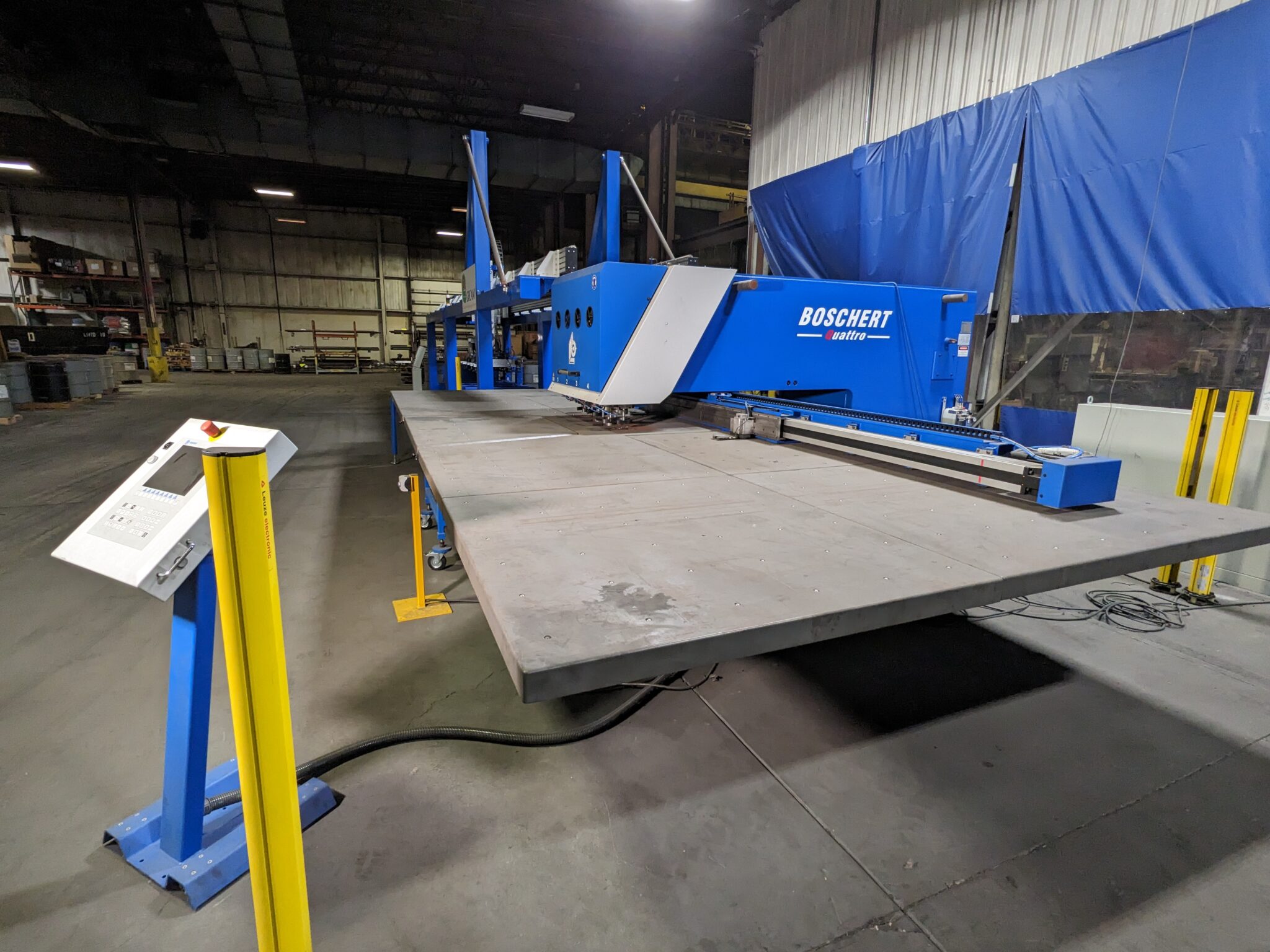

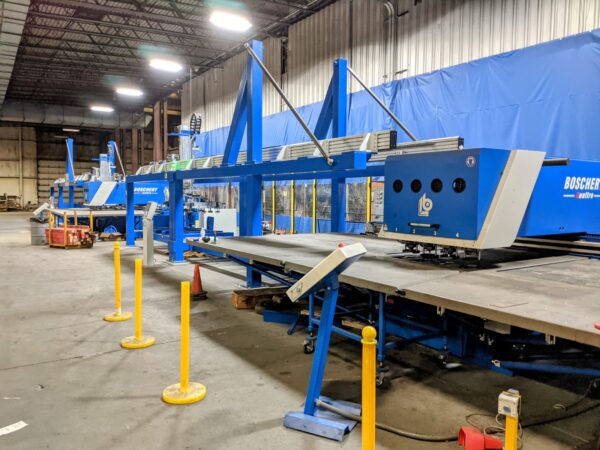

Boschert 36 Ton CNC Punching Machine with Fully Automatic Sheet Loading and Unloading System, QUATTRO 1500
Inventory # 9898-B
Model: QUATTRO 1500 – Demo Unit
Specifications:
Working Range without Repositioning: 60″ x 120″
Max. Punching Force: 36 Tons
Type of Tooling Used: Trumpf
Max. Punch Diameter: 4.1″ or any shape within
Max. Material Thickness – Standard Clamps: 0.250″
Max. Weight of Sheet in Clamps: 880 lbs.
Max. Stroke Length (Programmable): 0 – 3.54″
Max. Strokes per Minute: 400 SPM
Positioning Accuracy: +/- 0.002″
Positioning Repeatability: +/- 0.001″
Positioning Speed:
X-Axis, Maximum: 2,350 IPM
Y-Axis, Maximum: 1,100 IPM
Tool Change Time, Manual: 15 Seconds
Height of Table Above Floor: 35″
Hydraulic Reservoir Capacity: 42 Gallons
Motor: 15 HP / 480v / 3ph
Standard Features:
Pneumatic Material Clamps
Safety Light Barriers around Machine
Automatic Repositioning
Control:
CNC Software: Boschert Graphic Programming
Control Display: TFT 10.4″ Color Display
– 50 part program storage capacity in control memory
– Extended storage device with capacity of approximately 100,000 programs (256 mB) on hard drive and the included SD card. In addition, there is a USB port at the operator pendant
– Includes LAN connection easily integrated to your computer network
– Automatic stroke and part counter
– Automatic “clamp find” function
– Automatic referencing upon start-up
– Both axes move simultaneously with programmed priority for either axis
– Tooling list capacity of 500 tools with graphic support
– Automatic punch power control
– Canned cycles including single hole, row of holes, hole circle, mirror image
– Notching (up to 3 steps)
– Rectangles
– Mirror image
– Zoom
– Remove waste
– Sub-programs
– Bolt-hole circle
– Nibble circle
– Matrix of holes
– Ellipse
– “V” belt shapes
– Contour program (rotation station only)
– Piece counter
– Engraving
Included Optional Equipment:
Extra Heavy-Duty X-Axis for 400kg Sheet Capacity
Trumpf Locking Die Holders for Each Station
High-Speed Hydraulics with Oil Chiller
Vacuum Slug Removal
Automatic Tool Lubrication
Extra Clamps
Ball Supports in the Table

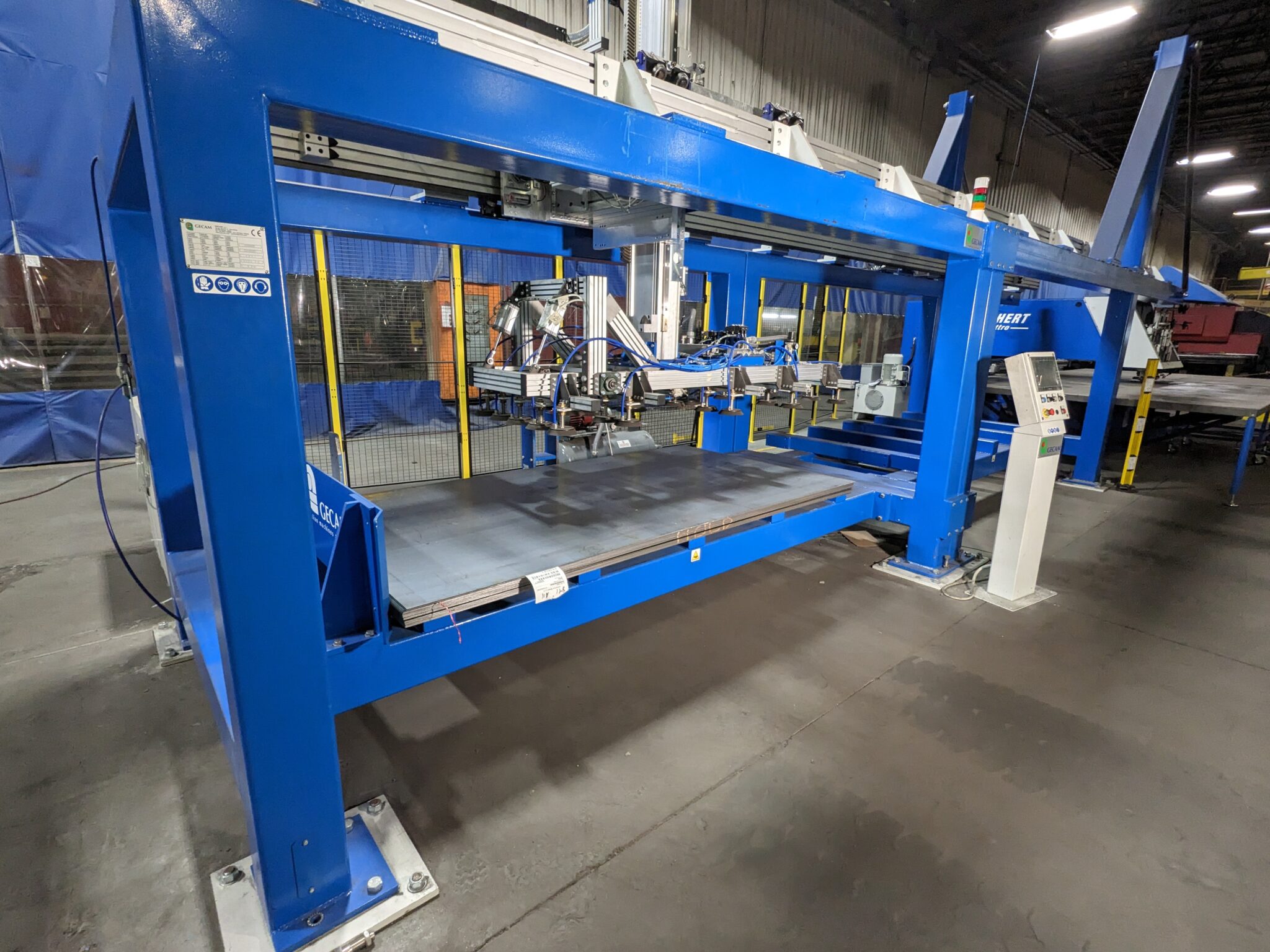

Pneumatic Loading System:
Heavy Duty Design
Fully Integrated with the Punching Machine
Capacity to Load 450kg Sheets
Mechanical Specifications:
Floor Space: approx. 318″ L x 258″ W x 83″ H
Weight: approx. 35,000 lbs.
New Replacement Cost: $595,000.00
FOB Butler, WI Facility
