Description

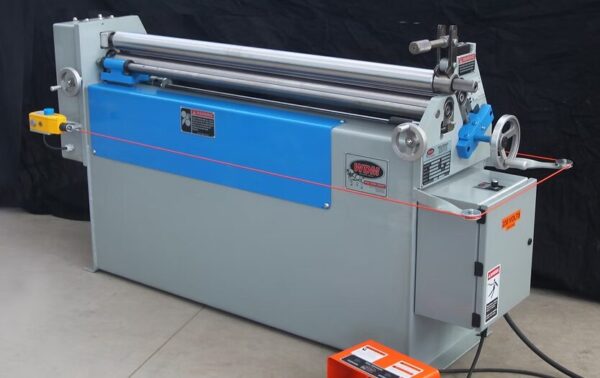

WDM Machine Tools 4′ x 16 Gauge Initial Pinch Sheet & Plate Bending Roll Machine, 310-3-48
Inventory # 9933-C
Model: 310-3-48
S/N: 80009-25
View the 310 Series Brochure Here
View the 310-3-48 Capacity Chart Here
Specifications:
Rated Pre-Bend Capacity: 0.06″ (approx. 16 Gauge) Mild Steel Plate, 12″ Diameter x 4′ Wide
Rolling Speed: 20 FPM
Nominal Top Roll Diameter: 3″
Motor: 1 HP / 230v / 3ph
Standard Features & Equipment Included:
All Gear Drive
Sealed Ball & Roller Bearings on All Rolls and Idler Gears
Unique All Electric Drive via Gear Motors
Infinitely Variable Speed via Variable Frequency Drives
No Hydraulics – 30% More Effective than Hydraulic Machines
Independent Adjustment of the Pinch Roll via a Handwheel-Wedge-Screw Arrangement
Steel Bearing Cases and Bronze Wedges
Bending Roll Adjusted with Handwheel via Bronze Worm Gear/Alloy Steel Screw Arrangement, Tiltable for Cone Rolling
Instant Start, Stop, and Reverse via Guarded Foot Pedal
Safety Cable on Three Sides of the Machine
Swing Out Top Roll for Easy Work Piece Removal with New, Easy Unlock Feature
Starting Groove in Pinch Roll to Facilitate Rapid Work Piece Pre-Bending and Rolling
Aluminum Scale and Pointer to Show Bending Roll Position
Haze Gray Epoxy and Safety Blue Enamel Finish
1045 Steel Rolls
Crown for 19 Gauge Mild Steel
Crown on Diameter 0.050″
Optional Equipment Included:
Cone Attachment (+$1,025)
Hardened and Polished Rolls (+$1,725)
Circular Grooves, 3/8″, 1/2″, 5/8″ (+$750)
Electric Digital Readout (+$2,800)
Power Bending Adjustment (+$3,125)
Mechanical Specifications:
Weight: approx. 1,000 lbs.
FOB Our Baltimore, MD Warehouse
