Description

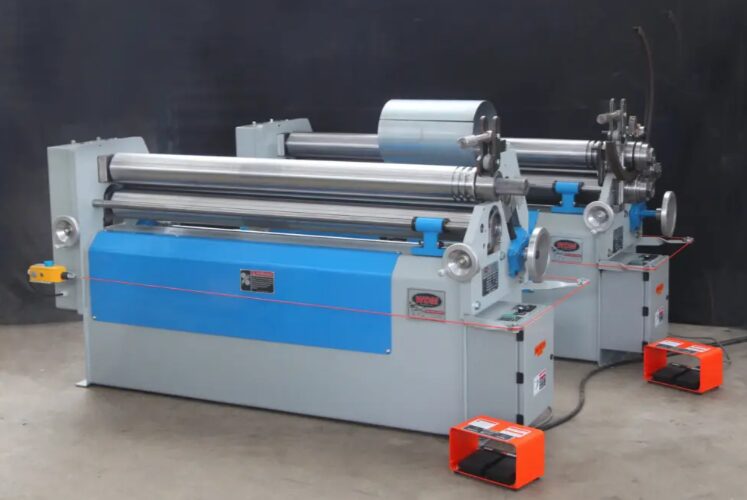

WDM Machine Tools 310 Series 2′ x 16 Gauge 3-Roll Slip Roll, 310-2-24
Inventory # 10089
Model: 310-2-24
Made in USA
Specifications:
Prebend Capacity @ 4X Top Roll: 0.06″ Diameter
Roll Length: 24″
Top Roll: 2″ Diameter
Standard Features:
Hardened and polished rolls 55-60 HRC (1045 flame hardened) G32 finish
Crowned rolls
Total electric operation
Near instant start/stop/reverse
Forward & reverse guarded foot switch for roll rotation

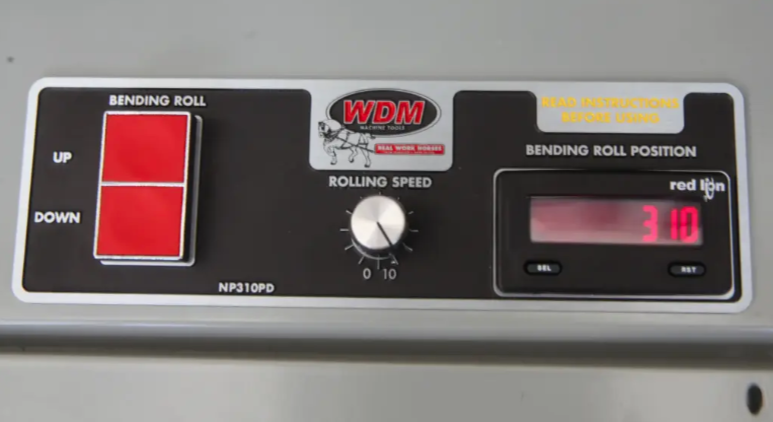

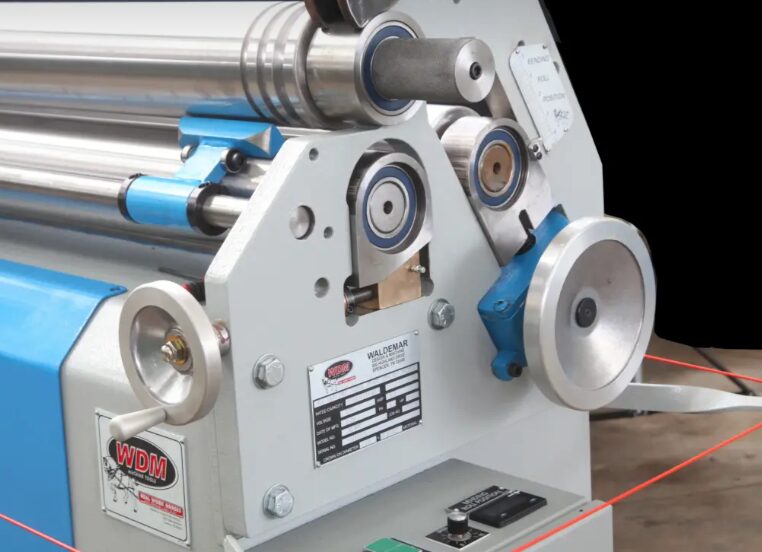

Rule and pointer to show roll position
Spur gear two-roll drive
3 phase 230/430 volts 60hx electrics

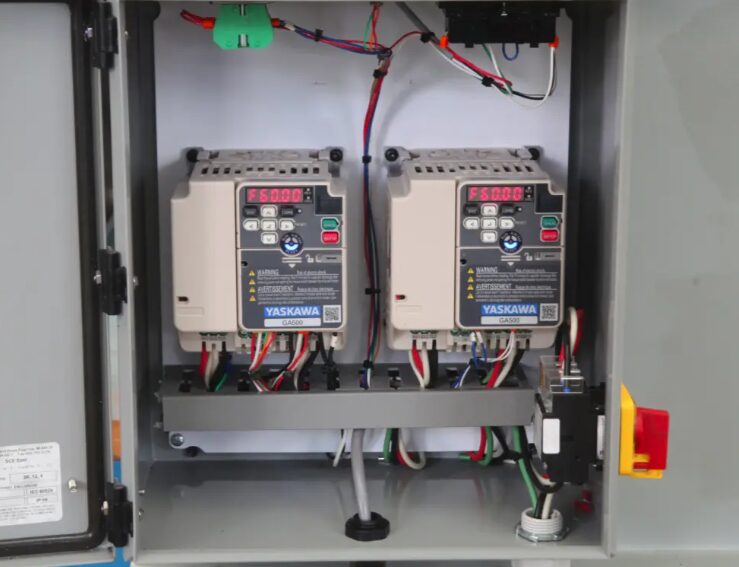

Electrics to NFPA-79 specifications
24VDC control circuit
Safety/emergency stop cable on three sides of the machine
Pinch roll starting groove
Overload protected

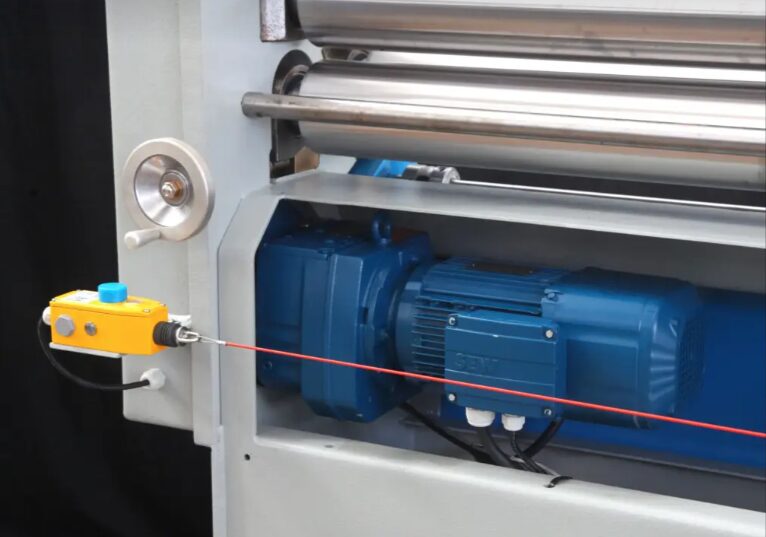

NEMA premium efficient electric helical gear motor with holding brake for roll rotation
Gearbox lubed for life
Heavy-duty all-gear drive
Haze gray epoxy and blue enamel finish (V.O.C. compliant)
Sealed ball bearings on all main points

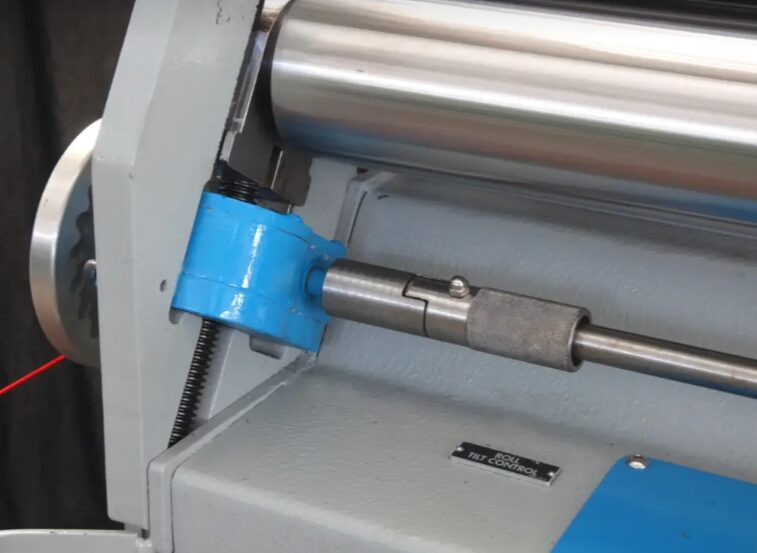

Rolls tilt for cone rolling

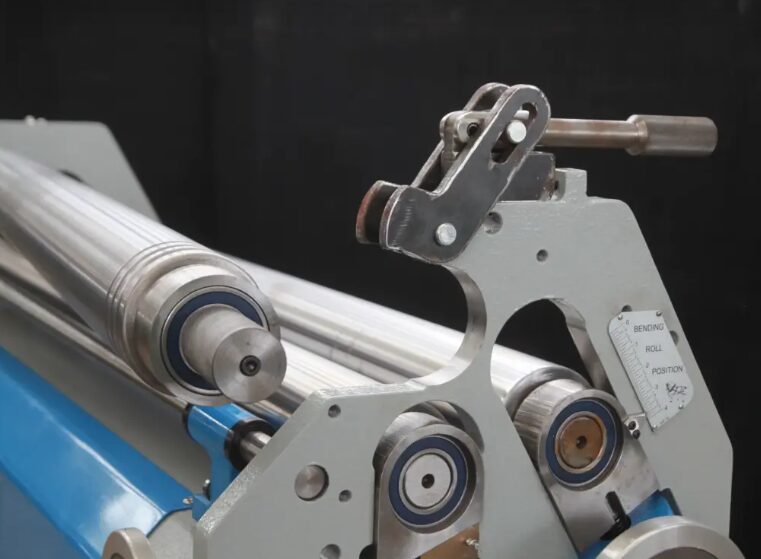

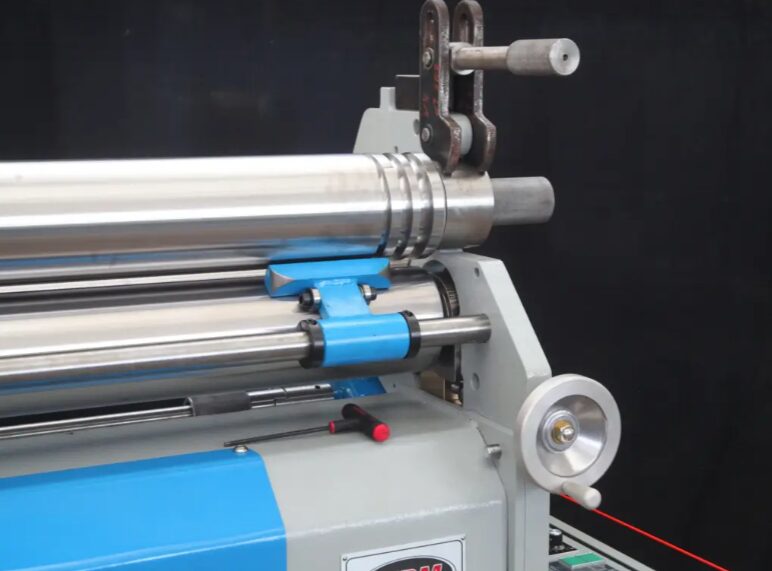

Manually operated latch handle with swing out top roll
Accurately machined, compact, streamlined, and all welded steel frame
Variable roll speed 0 – 20 FPM
FOB Factory – Contact us for pricing and availability
