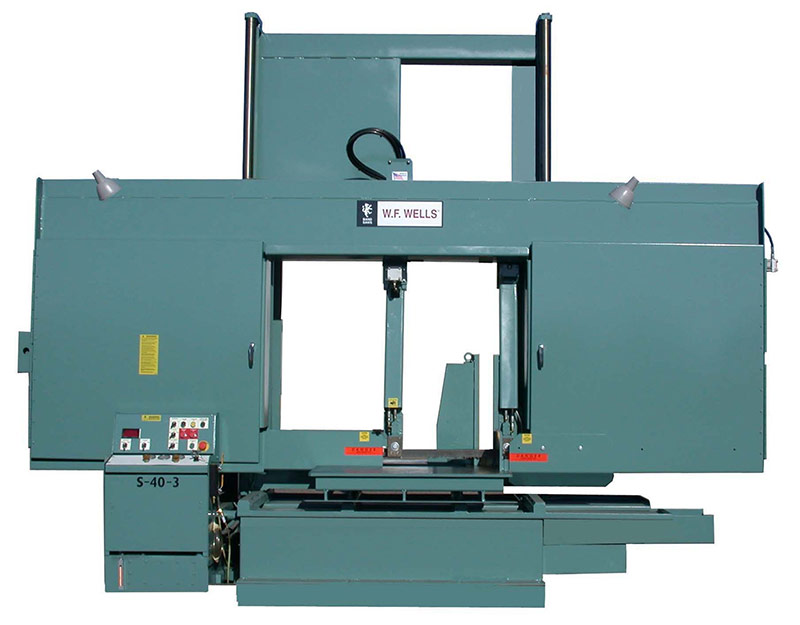

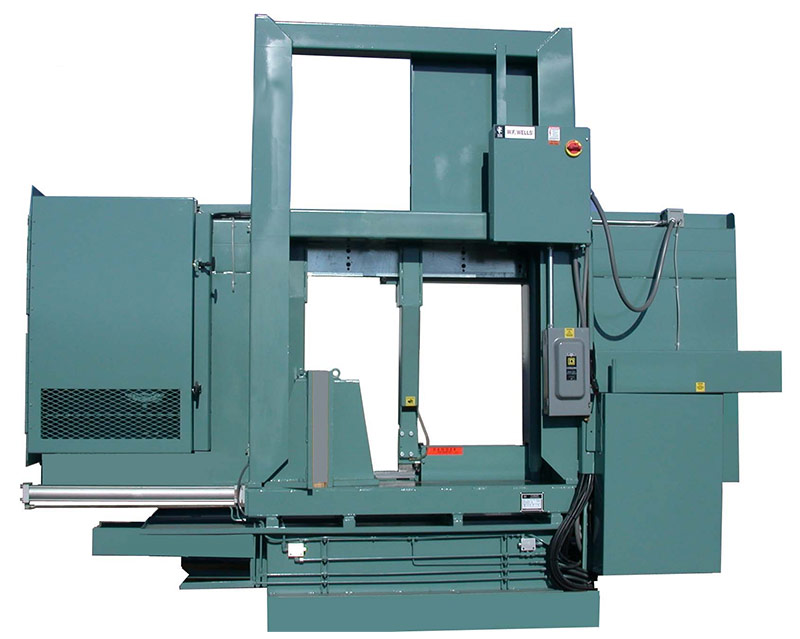

W.F. Wells 40″ x 40″ Semi-Automatic Horizontal Band Saw, S40-3

$120,075.00


Shipping: Add to Cart to Calculate

SKU: S40-3

Inventory #: 7999

Categories: , ,

Condition:

Type:

Brand:

Description

W.F. Wells 40″ x 40″ Semi-Automatic Horizontal Band Saw, S40-3

Inventory # 7999

Model: S40-3

Made in USA

Specifications:

Capacity:

Rectangular:

@ 90°: 40″ x 40″

@ 45°: 40″ x 24″

Weight Capacity: 15,000 lbs.

Blade Speed: 60 – 500 FPM

Blade Size: 348″ x 2″ x .063″

Bandwheel Size: 42″

Sawing Force: 0 – 1,000 lbs.

Work Height: 28″

Vise Jaw Height: 24″

Motor: 15 HP / 208v, 230v, 460v / 3ph

Standard Features:

Carbide Blocks, Spring Tensioned Blade Guide

Hydraulic Blade Tension

Hydraulic Full Stroke Vise

AC Vector Drive

15 Gallon Coolant Capacity

20 Gallon Hydraulic Capacity

Hydraulic Powered Blade Brush

Hydraulic Positioned Guide Arm

Blade Tension Indicator

Blade Break/Stall Switch

Electrics are Wired to NFPA 79 Machine Tool Standards

Mechanical Specifications:

Shipping Dimensions: 175″ x 55″ x 130″ H

Shipping Weight: approx. 9,200 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 9300 lbs
