W.F. Wells 40" x 40" Heavy Duty Horizontal Band Saw, S40-4
W.F. Wells 40" x 40" Heavy Duty Horizontal Band Saw, S40-4

W.F. Wells 40″ x 40″ Heavy Duty Horizontal Band Saw, S40-4

$106,450.00


Shipping: Add to Cart to Calculate

Make Offer

SKU: S40-4

Inventory #: 8005

Categories: , ,

Condition:

Type:

Brand:

Product Description

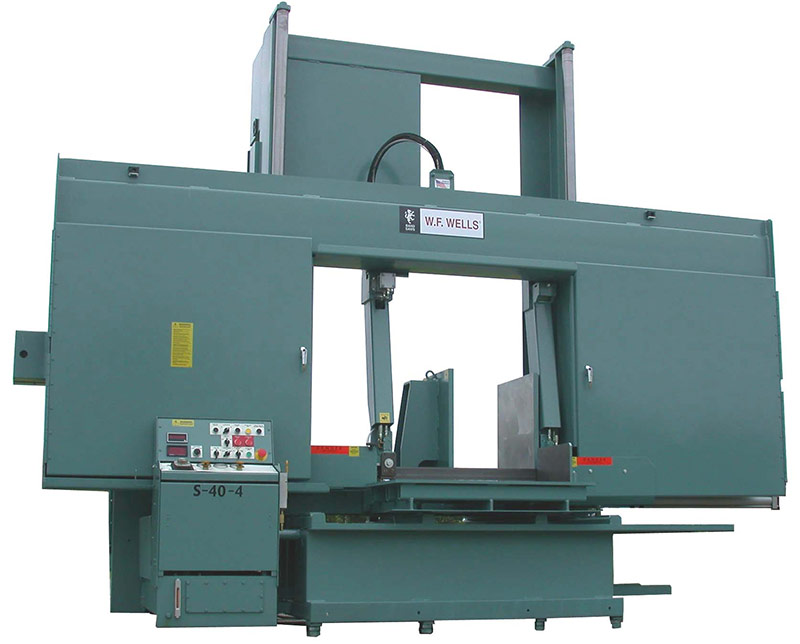

W.F. Wells 40″ x 40″ Heavy Duty Horizontal Band Saw, S40-4

Inventory # 8005

Model: S40-4

Made in USA

Specifications:

Capacity:

Rectangular:

@ 90°: 40″ x 40″

@ 45°: 40″ x 24″

Weight Capacity: 15,000 lbs.

Blade Speed: 60 – 500 FPM

Blade Size: 348″ x 2 5/8″ x .063″

Bandwheel Size: 42″

Sawing Force: 0 – 1,000 lbs.

Work Height: 28″

Vise Jaw Height: 24″

Motor: 15 HP / 208v, 230v, 460v / 3ph

Standard Features:

Carbide Blocks, Spring Tensioned Blade Guide

Hydraulic Full Stroke Vise

AC Vector Drive

20 Gallon Coolant Capacity

20 Gallon Hydraulic Capacity

5 HP Hydraulic Drive Motor

Hydraulic Chip Conveyor

Hydraulic Powered Blade Brush

Hydraulic Guide Arm Positioning

Blade Tension Indicator

Blade Break/Stall Switch

LED Blade Speed Indicator

LED Positive Feed Readout

Wired to NFPA 79 Machine Tool Standards

Mechanical Specifications:

Dimensions: 175″ x 55″ x 130″ H

Shipping Weight: approx. 10,500 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight10600 lbs
