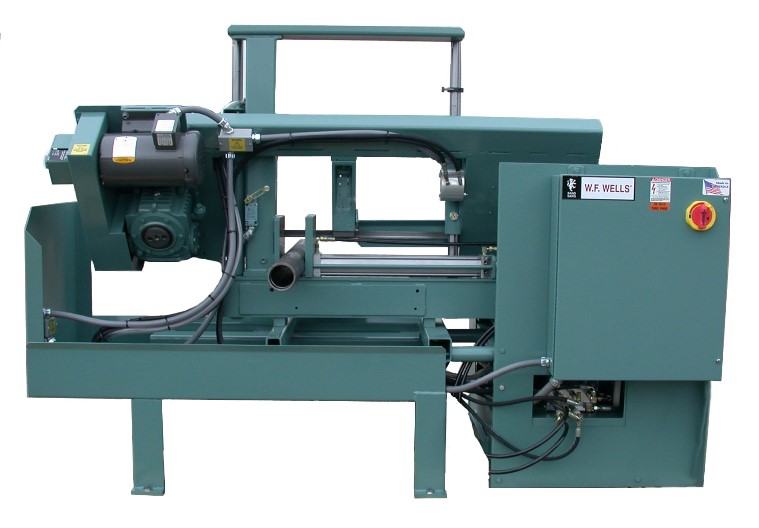

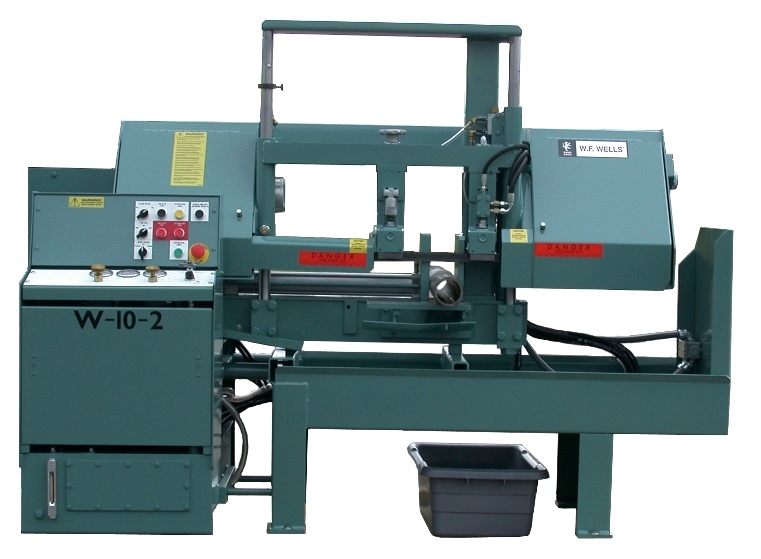

W.F. Wells 10″ x 17″ Hydraulic “Twin-Post” Tool Room Band Saw, W-10-2

$35,125.00


Shipping: Add to Cart to Calculate

SKU: W-10-2

Inventory #: 5828

Categories: , ,

Condition:

Type:

Brand:

Description

W.F. Wells 10″ x 17″ Hydraulic “Twin-Post” Tool Room Band Saw, W-10-2

Inventory # 5828

Model: W-10-2

Made in USA

Specifications:

Capacity:

Round:

@ 90°: 10″

@ 45°: 7 1/2″

Rectangular:

@ 90°: 10″ x 17″

@ 45°: 10″ x 7 1/2″

Weight Capacity: 5,000 lbs.

Blade Speed: 60 – 500 FPM

Blade Size: 143″ x 1″ x .035″

Bandwheel Size: 14 1/2″

Sawing Force: Hydraulic, 0 – 750 lbs.

Work Height: 26″

Motor: 5 HP / 208v, 230v, 460v / 3ph

Standard Features:

1″ Bi-Metal Blade

Carbide Guide Blocks

Hydraulic Vise

Hydraulic Blade Pressure Control

Hydraulic Blade Tension Control

Blade Tension Indicator

Semi-Automatic Operation

TEFC Motors

Fused Disconnect

Built-In Coolant System

Blade Powered Rotary Cleaning Brush

Feed Pressure Monitor/Regulator

All Safety Guards

Console Controlled Blade Speed, AC Drive

Gear Box Oil

Hydraulic Oil

Operator Manual and Parts List

Mechanical Specifications:

Dimensions: 97″ x 49″ x 65″ H

Shipping Weight: approx. 1,975 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1975 lbs
