Victor 9″ Electronic Variable Speed Second Operation Lathe, 616EVS

Shipping: Add to Cart to Calculate

SKU: 616EVS

Inventory #: 6150

Categories: ,

Condition:

Type:

Brand:

Description

Victor 9″ Electronic Variable Speed Second Operation Lathe, 616EVS

Inventory # 6150

Model: 616EVS

Specifications:

Swing Over Bed: 9″

I.D. of Turret Head: 5/8″

Spindle Capacity:

With Jaw Chucks: 6″

With Expanding Collets: 3″

With Round 5C Collets: 1 1/16″

With Hexagon 5C Collets: 7/8″

With Square 5C Collets: 3/4″

With Step Chucks: 1 1/16″ – 6″

Spindle Nose Diameter: 2.189″

Spindle Nose I.D./O.D.: 5C / 4° Taper

Spindle Speeds: 0 – 4,000 RPM (Variable)

Double Tool Cross Slide Travel: 3 3/4″

Turret Slide Travel: 4″

Inverter Spindle Motor: 3 HP / 220v / 3ph

Standard Features:

Easy to read digital display on actual spindle RPM

High precision preloaded ball bearing 6-station turret with indexing lever

Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle

Fast lever collet chucking with a single movement

Hardened and ground alloy tool steel bedways

Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings

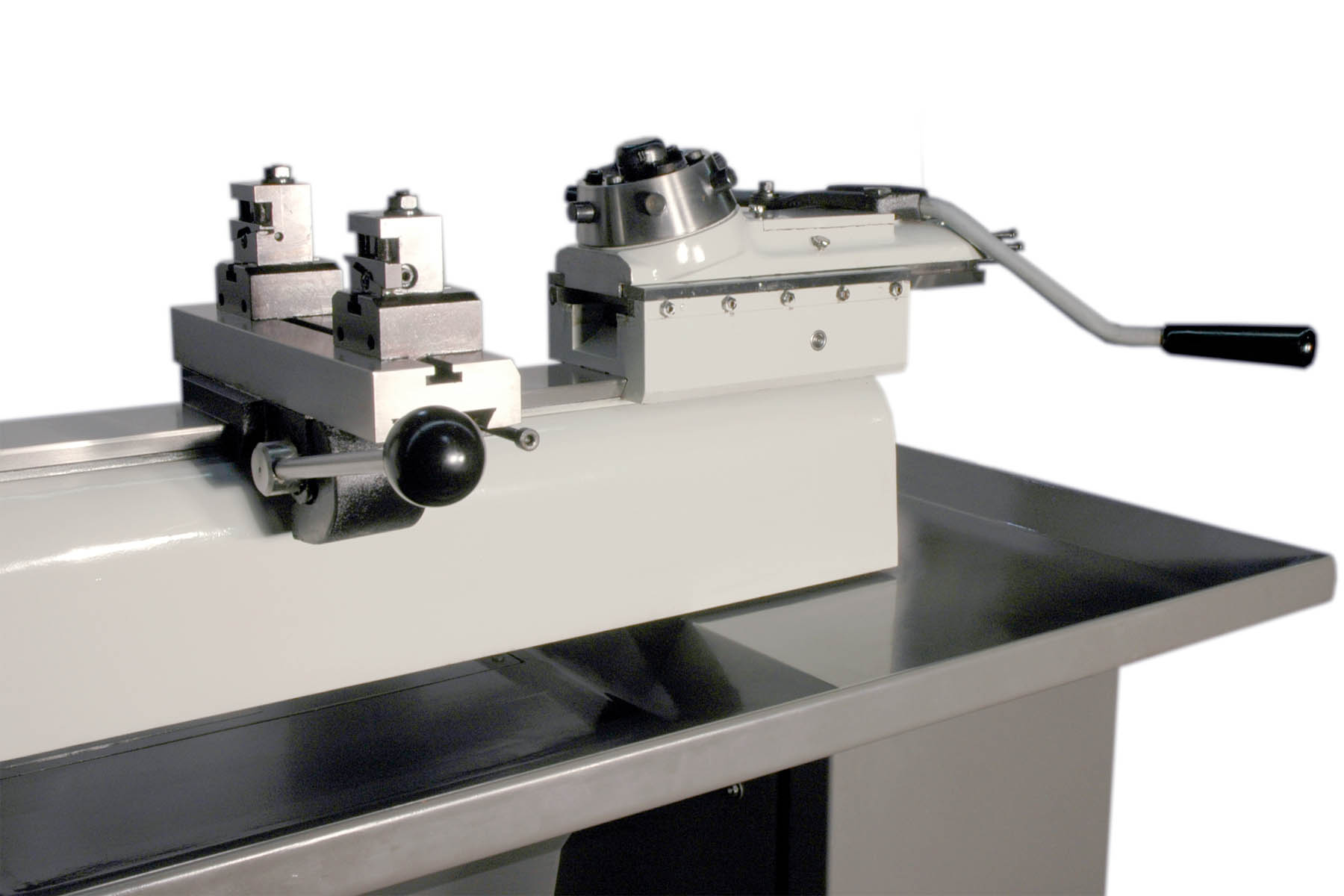

Double cross slide is held securely to the bed by a mating dovetail section and can be locked in any position on the bed

5C lever type collet closer standard

3 HP frequency controlled motor

Yaskawa Inverter Drive

Mechanical Specifications:

Dimensions: 69″ x 28″ x 63″ H

Shipping Weight: 1,364 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1364 lbs
