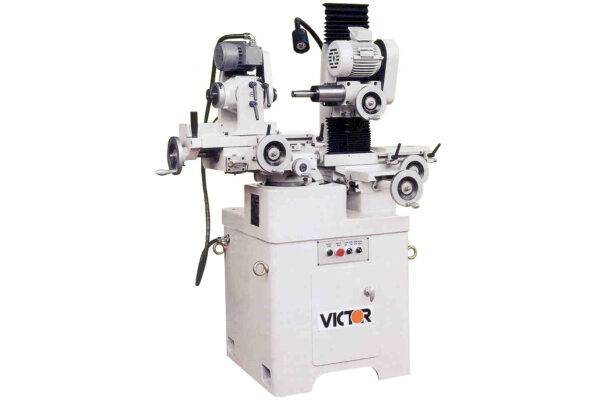

Victor 12″ Monaset Tool and Cutter Grinder, CM-2
Inventory # 7702
Model: CM-2
Description:
The Victor CM-2 Monaset Tool and Cutter Grinder provides versatile capability for multiple grinding operations at a single chucking of the work piece
Specifications:
Max. Swing Over Main Slide: 12″ Diameter
Max. Collet Work: 1 1/4″ Diameter
Min. Collet Work: 0.20″
Max. Spiral Angle: 60°
Max. Length Between Spindle Nose and Tailstock Center: 5.31″
Grinding Wheel Diameter: 4″
Main Slide Travel: 5.12″
Offset Slide Travel: 3.94″
Front of Center: 1.97″
Rear of Center: 1.97″
Horizontal Plane (Turntable Base): +/- 105° (210°)
Vertical Plane (Above/Below Center): +/- 40° (80°)
X-Axis Left/Right Slide Travel: 4.33″
Y-Axis Front to Read Slide Travel: 6.69″
Z-Axis Vertical Slide Travel: 9.45″
Workhead Speed: 440 RPM
Grinding Wheel Speeds: 4,000, 6,000, and 8,000 RPM
Workhead Motor: 1/4 HP
Grinding Wheelhead Motor: 1/2 HP
Standard Features:
Sharpens and reconditions cutters and tools with complex shapes
Multiple grinding operations at a single chucking of the work piece. It saves setup time and assures excellent concentricity
Versatility for generating straight or tapered, right or left-hand, infinitely variable leads from a simple built-in lead mechanism
Turntable mounting of entire workhead slide assembly. adjustable through 235° in the horizontal plane
Workhead that is adjustable on separate main slide with dual handwheel control
Offset slide for workhead spindle permits centerline of spindle to be offset from center of turntable
Micrometer stop dogs and graduated dials which greatly simplify accurate positioning of workhead main slide, wheelhead cross, and longitudinal slides
Equipment Included:
Leveling blocks
Grinding wheel guards with extension bar
Collets (inch: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, & 1-1/4)
Grinding wheel flanges: 2 standard and 1 extended flanges
Indexing plates (8, 10, 12 divisions)
Cutter holder center gauge
Spring-loaded index pawl for workhead indexing plate
Workhead gauge for zeroing
Diamond dressing tool & Diamond dressing tool holder or tool support bracket
Grinding wheels (WA) (including flat, bowl and dish types)
Toolbox and adjusting tools
Collet wrench, Wrench set, Wheel spanner
Oil bottle
Mechanical Specifications:
Floor Space: 60″ x 45″ x 65″ H
Shipping Weight: 2,140 lbs.
Contact us for pricing and availability
FOB Factory
