Uni-Hydro 56 Ton 3-Station Ironworker, 56-14

Inventory # 3212

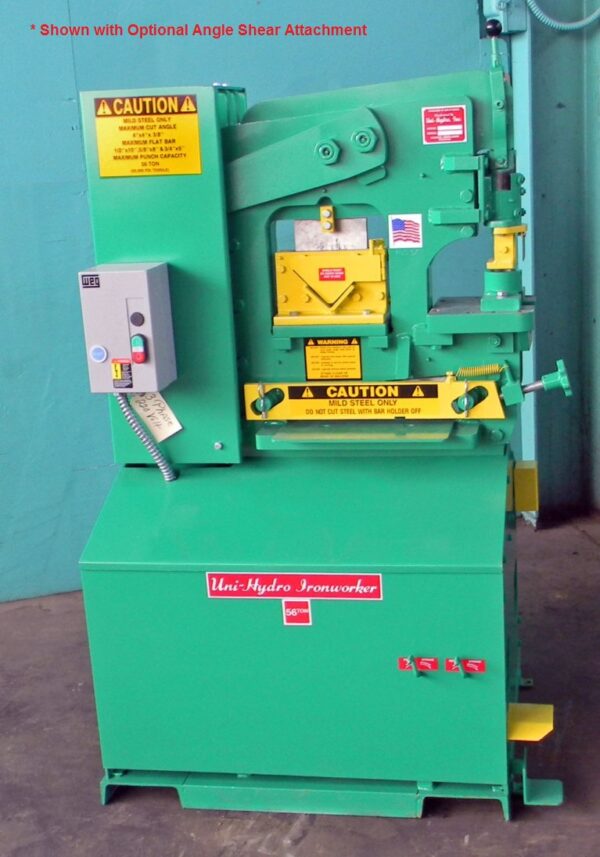

Model: 56-14 *Shown with Optional Angle Shear

Made in USA

Specifications:

Throat Depth: 6″

Tonnage: 56

Punch:

1 1/4″ hole in 1/2″

1 3/16″ hole in 3/4″

Punch Table Top Height: 38 1/4″

Bar Shear:

3/8″ x 14″

1/2″ x 10″

5/8″ x 8″

3/4″ x 6″

Optional Angle Shear 90°:

Slug Type: 3″ x 3″ x 3/8″

Sever Cut: 4″ x 4″ x 3/8″

Miter Angle 45°:

Bar Shear: 3″ x 3″ x 3/8″

Bar Shear Work Height: 29″

Optional Slug Type: 2″ x 2″ x 5/16″

Optional Channel Shear: 2″ & 3″ Combined, 4″ Standard

Optional Rod Shear:

Round: 1 1/16″ Max.

Square: 1 1/16″ Max.

Optional Coper Notcher 90°:

For 3″ x 3″ x 1/4″ Angle

Optional Square Notcher: 1 3/4″ x 2″ x 1/4″

Optional Pipe Notcher (Sch. 40 or 80): 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″

Optional Brake: 6″ or 9″ x 1/4″

Cavity Table Top Height: 37 1/4″

Strokes per Minute:

Light Material: 50 SPM

at Max. Capacity: 7 SPM

Hydraulics: 1,200 PSI

Oil Capacity: 20 Quarts

Motor: 5 HP / 1ph OR 5 HP / 3ph

Standard Features:

Open throat punch has 56 ton capacity

14″ bar shear with 4-sided blades

Bar shear hold-down can be fixed or adjustable

Magnetic starter for safety and reliability

Full up and down stroke control

Built for forklift handling

Manual punch aligner

Optional Tooling:

Punch Station:

Square Notcher

Coper Notcher

Pipe Notcher

6″ Brake

Power Cavity:

Square Notcher

Coper Notcher

Angle Shear

Z & T Shear

Channel Shear

Brake: 6″ or 9″

Rod Shear: Round or Square

Mechanical Specifications:

Dimensions: 33″ x 27 1/4″ x 57″ H

Weight: approx. 1,330 lbs.

FOB Factory – Contact us for Pricing and Availability

Please Note: Specifications are Listed to Show the Machine’s Capabilities. Some Applications and Processes Require Optional Tooling
