U.S. Industrial 6′ x 44 Ton CNC Hydraulic Press Brake, US 446
Inventory # 9807
Model: US 446
S/N: W1302-037
Specifications:
Capacity:
Tonnage: 44 Tons
Overall Bending Length: 78.7″
Distance Between Housings: 63.7″
Open Height: 12 1/2″
Stroke of Ram: 3.93″
Stroke Adjustment of Ram: 1.96″
Throat Depth: 7.8″
Approach Speed: Rated 2.4 IPS
Return Speed: Rated 2.0 IPS
Motor: 7.5 HP / 220v / 3ph
Equipment Included:
CNC 2-Axis Color Graphic Computer Control – Controls both bend angle and back gauge position
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar for Parallelism
Sick Model Light Curtain System

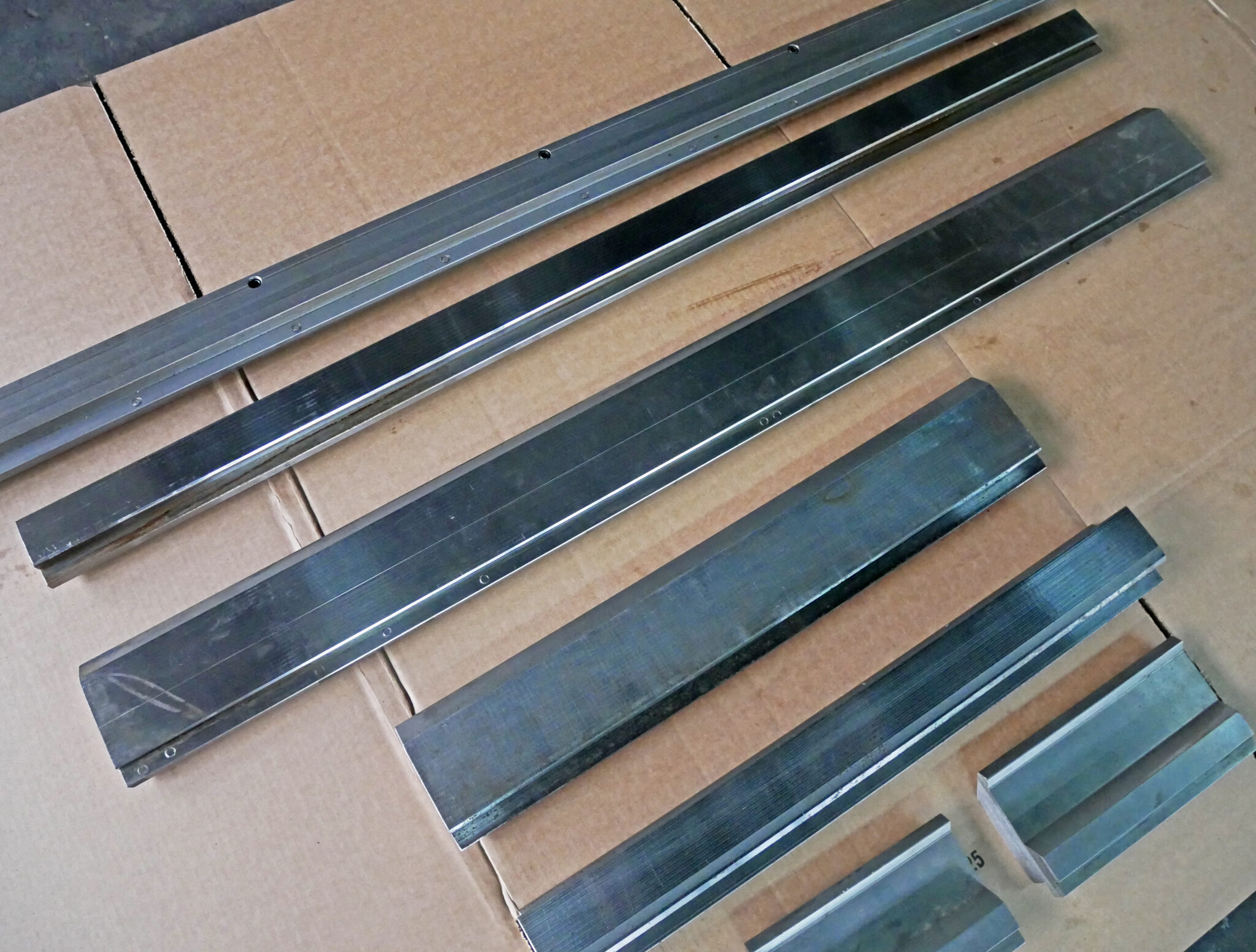

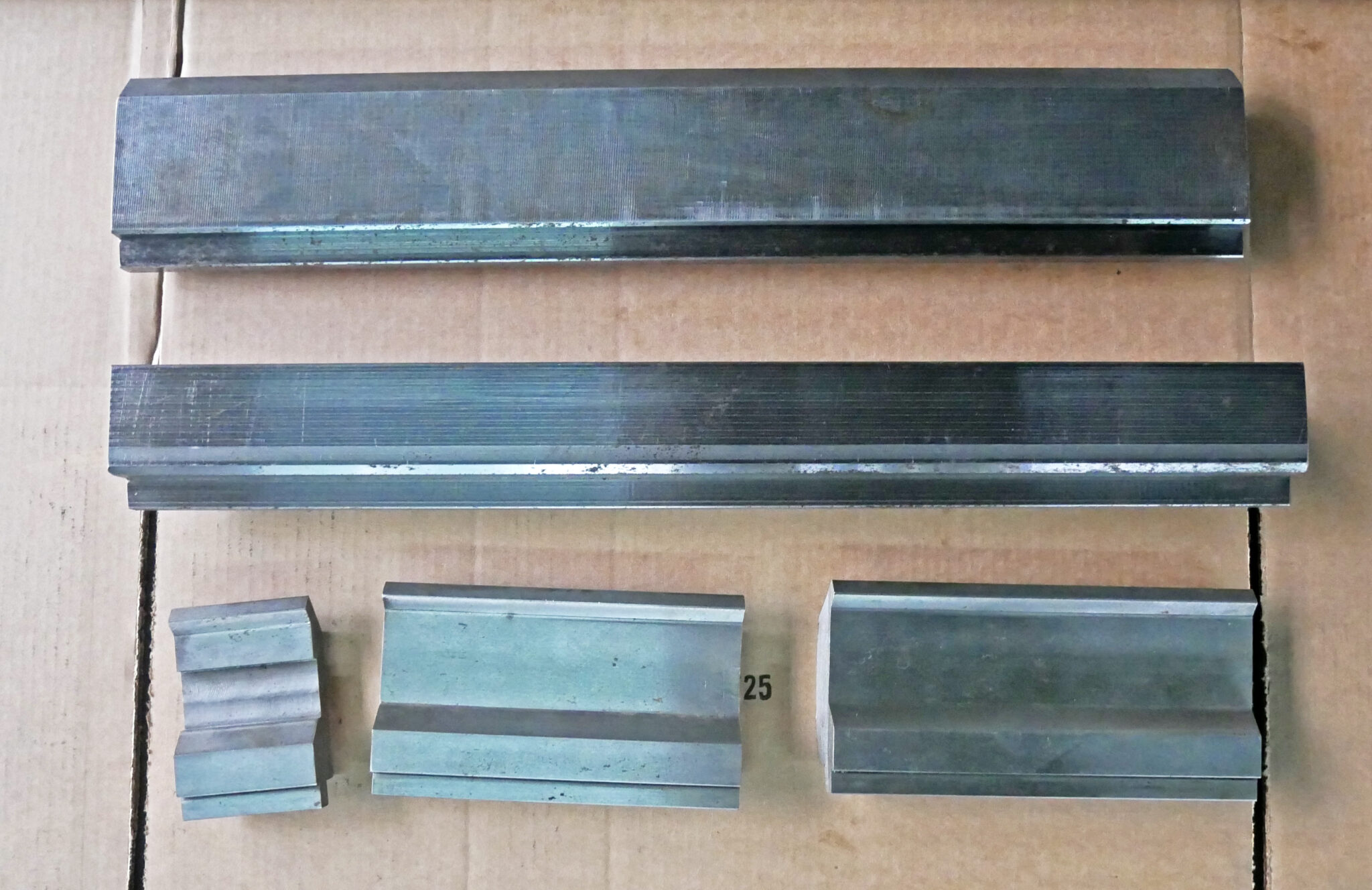

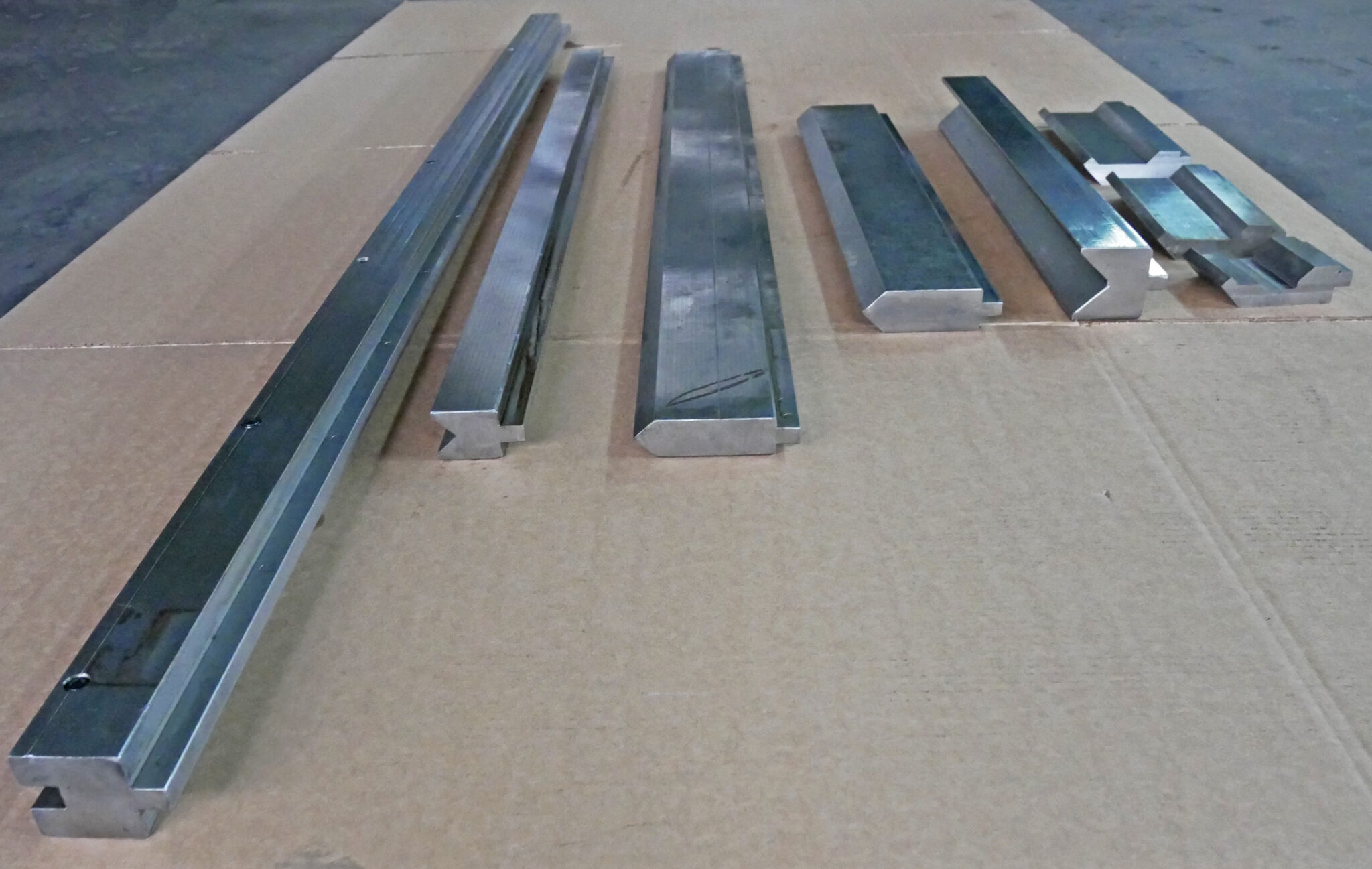

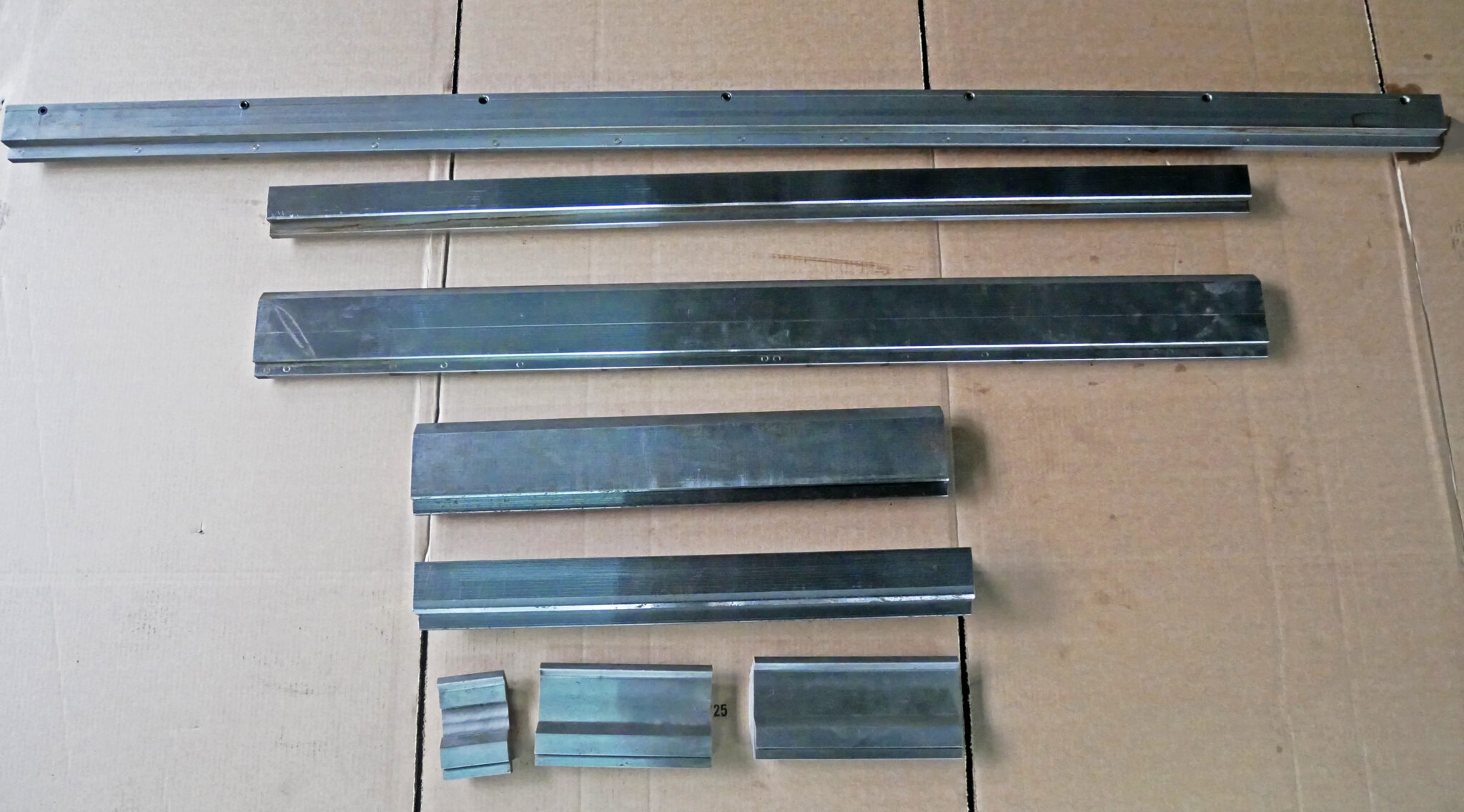

Tooling:
79” Long x 2-1/4″ Square 90° 4-Way bottom die with a 1-1/8″, 1″, 3/4″, 5/8″, 9/16″ 1/2″ and 1/8″ V-Grooves
75″ of 90° Goose-neck Punch (cut into 6 segments)**
72″ Long x 2″ High Die Holder
24″ Long 2″ 90° V-Die and matching Punch**
48″ Long 1″ 90° V-Die and matching Punch**
**90° used as a standardized description, punch and groove angles were not measured, and likely to be somewhere from 87° to 90° as most V-Style tooling accounts for spring back during bending.
Mechanical Specifications:
Dimensions: 101″ x 60″ x 80″ H
Weight: approx. 7,700 lbs.
New Replacement Cost: $36,975.00
FOB Our Baltimore, MD Warehouse
