U.S. Industrial 10′ x 1/4″ Hydraulic Shear, USHS10250
Inventory # 3366
Model: USHS1025
Specifications:
Max. Thickness:
Mild Steel: 1/4″
Stainless Steel: 1/8″
Max. Cutting Length: 10′
Tensile Strength of Mild Steel: 65k PSI
Tensile Strength of Stainless Steel: 95k PSI
No Load Strokes: 14 /Min.
Oil Capacity: 69 Gallons
Number of Hold Downs: 13
Top Number of Blade Segments: 3
Bottom Number of Blade Segments: 3
Motor: 15 HP / 220v, 440v / 3ph (36Amp @ 220v, 18Amp @ 440v)
Standard Equipment:
Swing beam design
Front operated power back gauge with digital readout

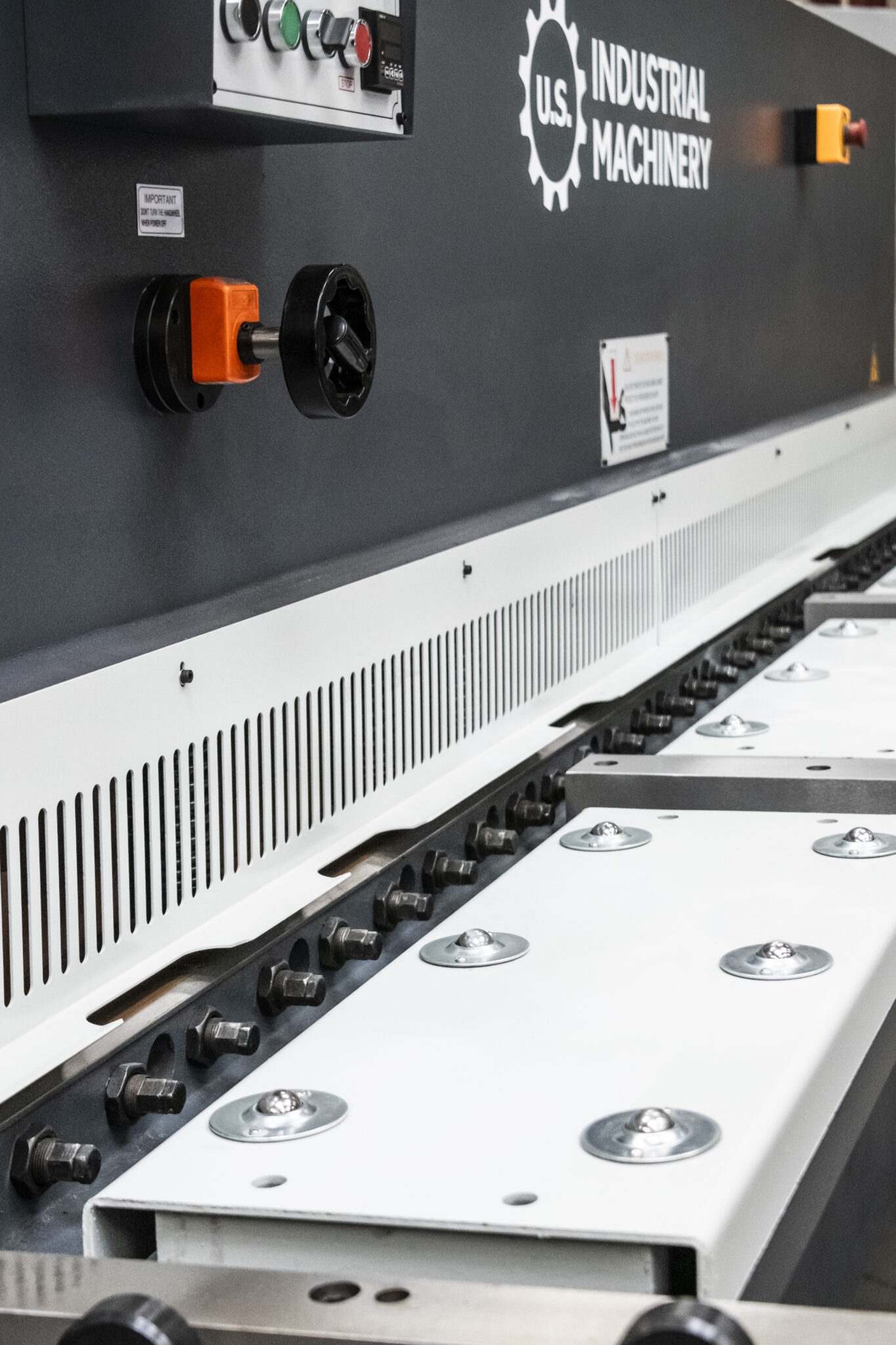

OSHA finger guarding with microswitch for safety
Automatic swing-up feature on back gauge

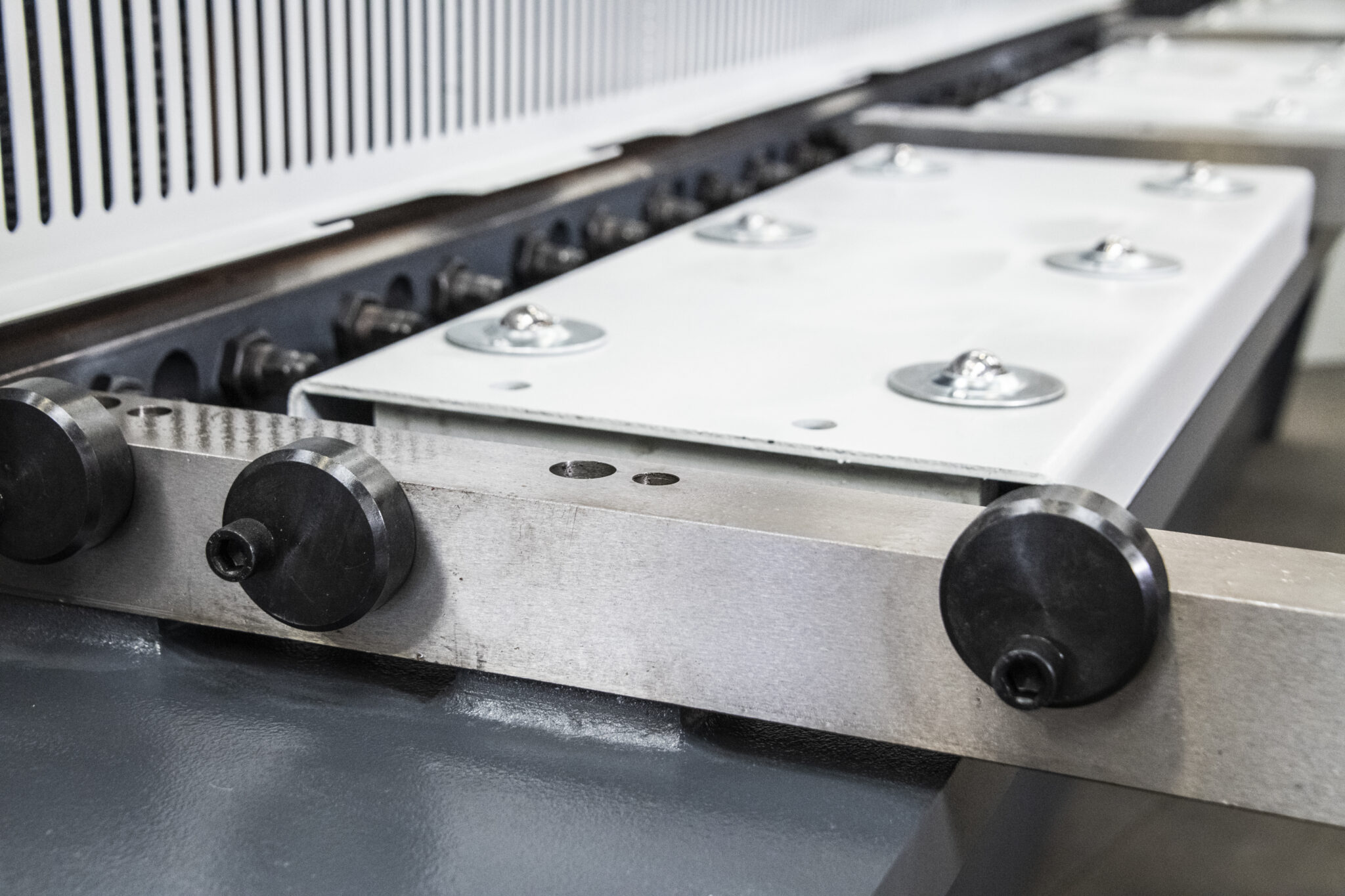

39″ squaring arm with inlaid scale from blade to end
Support arms across the front of the machine
Bolt on table segments with roller ball transfers

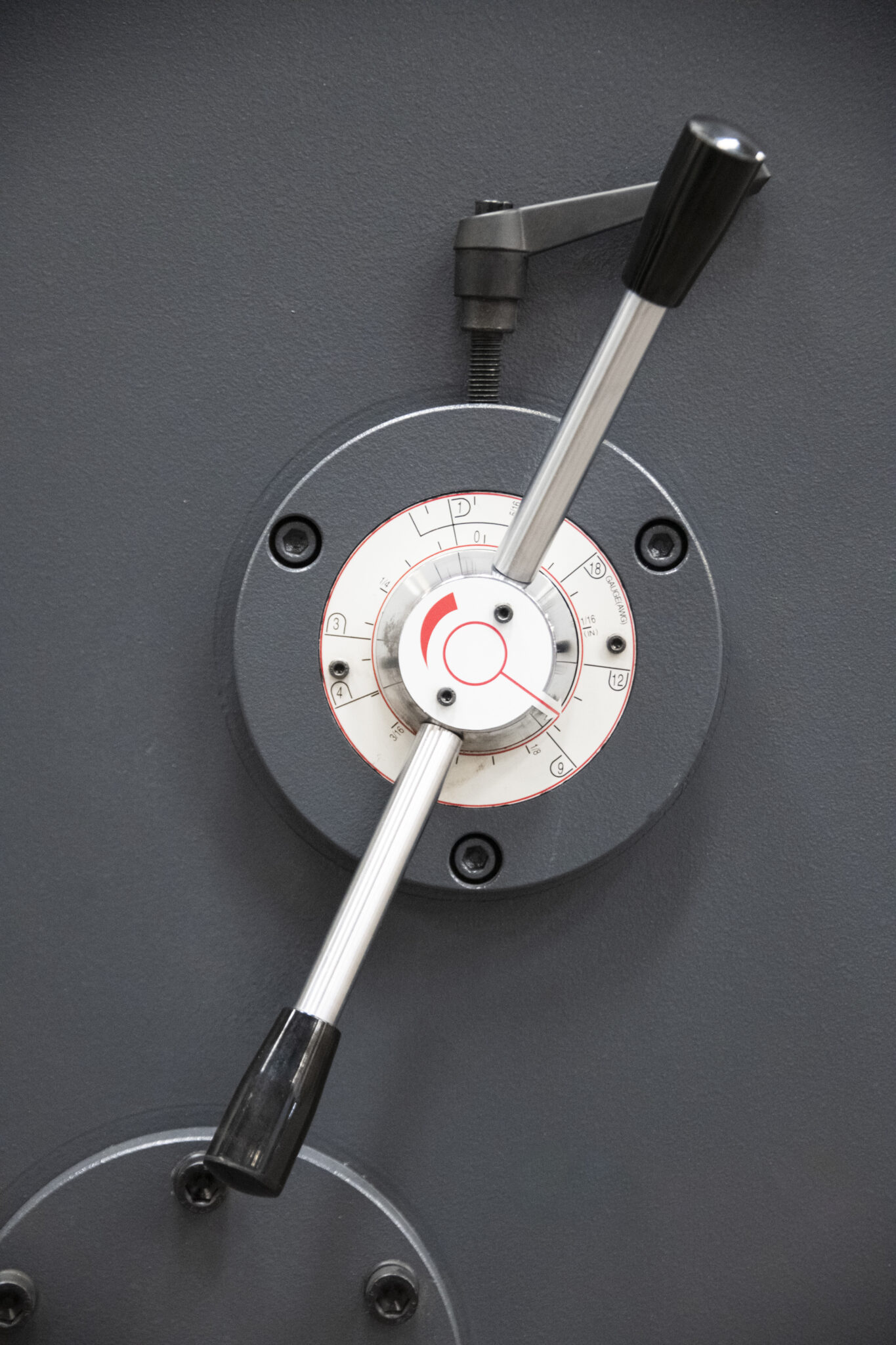

Manual quick change blade gap adjustment
Hydraulic hold downs with anti-scratch neoprene pads
Electric stroke adjustment with stroke counter
Full set of 6CrW2Si blades for cutting mild steel
Low noise hydraulic gear pump
Shadow line with LED lighting for visual cut alignment
Thermal overload protection
Foot pedal with extended cable
Material drop support chute for ease of collecting trim pieces
Available Upgrades/Options:
ESA CNC computer control
Pneumatic sheet support for cutting of thinner, lighter gauge material
48″ back gauge with no swing-up feature
Front light curtains for additional safety
Rear light curtain with safety gates for additional safety
Cr12MoV blades for cutting stainless steel and harder alloys
6′ squaring arm
8′ squaring arm
10′ squaring arm
Training at the customer’s site by a U.S. Industrial Machinery technician
Mechanical Specifications:
Dimensions: 149″ x 71″ x 83″ H
Weight: approx. 13,230 lbs.
FOB Factory – Contact us for pricing and availability
