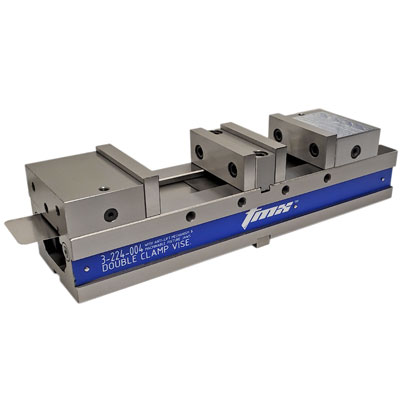

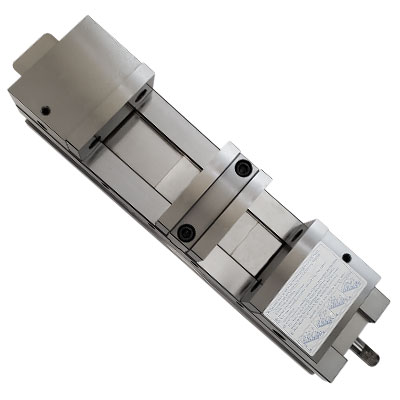

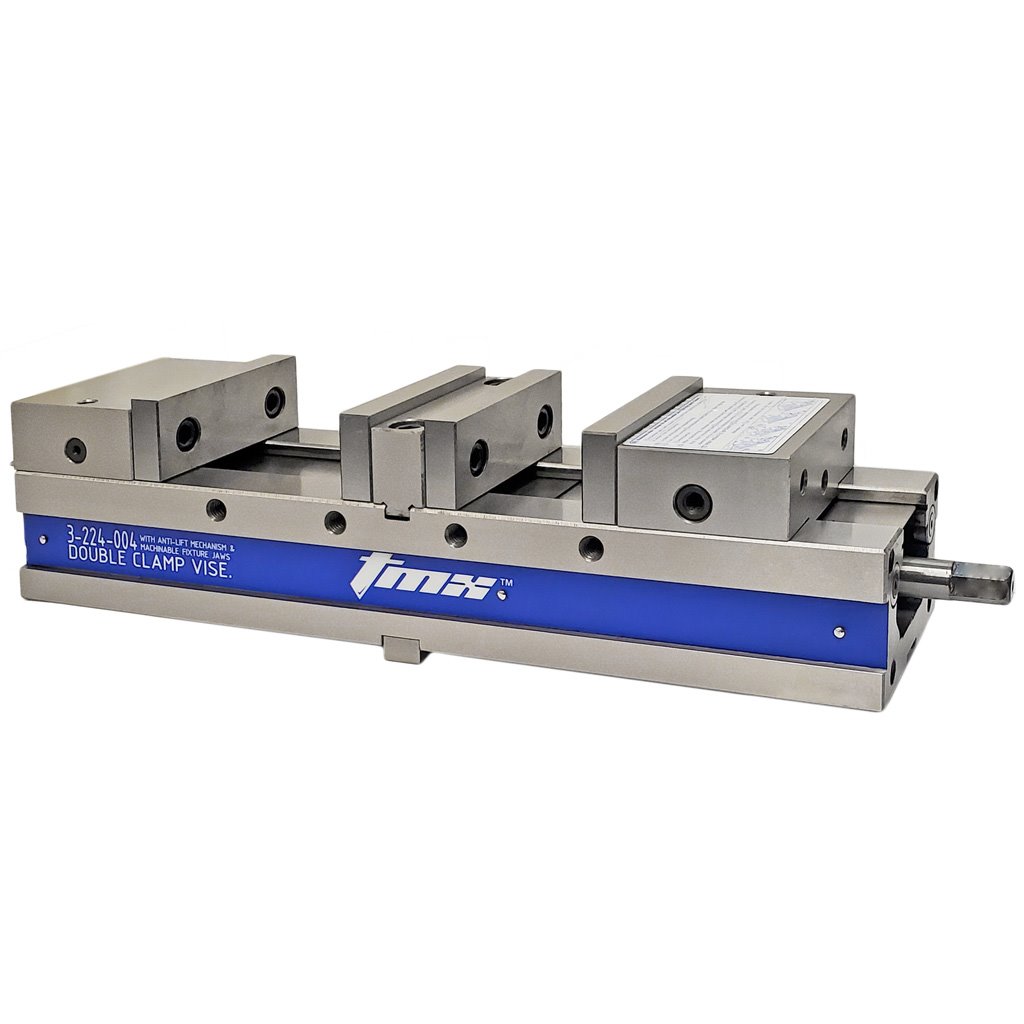

Toolmex 4″ Precision Double-Station Milling Machine Vise
Inventory # 9947
Model: 3-224-004
View the TMX Double-Station Machine Vise Manual PDF Here
Description:
4″ Double station could clamp 2 dissimilar workpieces with the same force at a time and provides 6 different clamping positions – Compare to the Kurt model HDLM4J
Specifications:
Jaw Width: 4.016″
Jaw Opening: 9 1/4″
Jaw Depth: 1 1/2″
Body: Ductile Iron
Jaws: Hardened Steel
Repeatability: +/- 0.01 mm
Overall Dimensions: 17.22″ L x 4.09″ W x 3.80″ H
Overall Weight: 45 lbs.
FOB Factory – Contact us for special pricing and availability
