Description

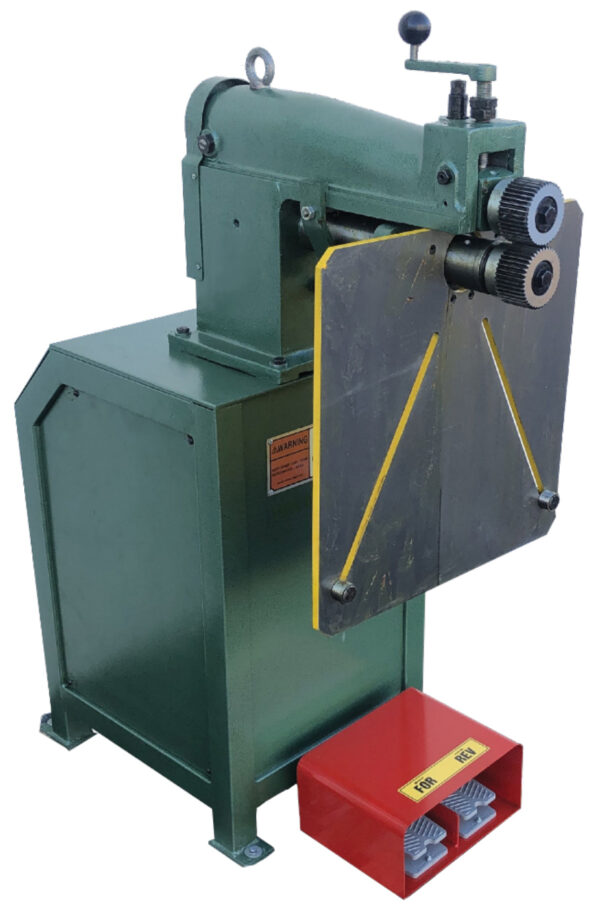

Tin Knocker 18 Gauge TK Power Crimper Beader
Inventory # 9913
Model: TK Power Crimper Beader
Description:
The Tin Knocker Power Crimper Beader is a durable and versatile machine, capable of performing the most beading and swaging functions with mild steel as thick as 18 gauge. The Power Crimper Beader has a deep, 13″ throat, paired with a heavy-duty adjustable back gauge, to make handling material easy, regardless of size or depth
The machine is built for durability, and is made of solid, machined cast iron, mounted on a sturdy sheet metal cabinet. A two-pedal foot switch allows the operator to have both hands free when feeding material or changing direction of the rolls
Specifications:
Capacity: 18 Gauge, Mild Steel
Throat to Frame Depth: 13″
Throat to Backgauge Depth: 12 1/4″
Motor: 1 HP / 230v / 3ph
Equipment Included:
9 Sets of Rolls + Spacers
Mechanical Specifications:
Dimensions: 39″ x 14 1/2″ x 52″ H
Weight: approx. 340 lbs.
FOB Factory – Contact us for special pricing and availability
