Tennsmith 10′ x 14 Gauge Electro-Mechanical Shear, LM1014-FC

Shipping: Add to Cart to Calculate

SKU: LM1014-FC

Inventory #: 5084

Categories: ,

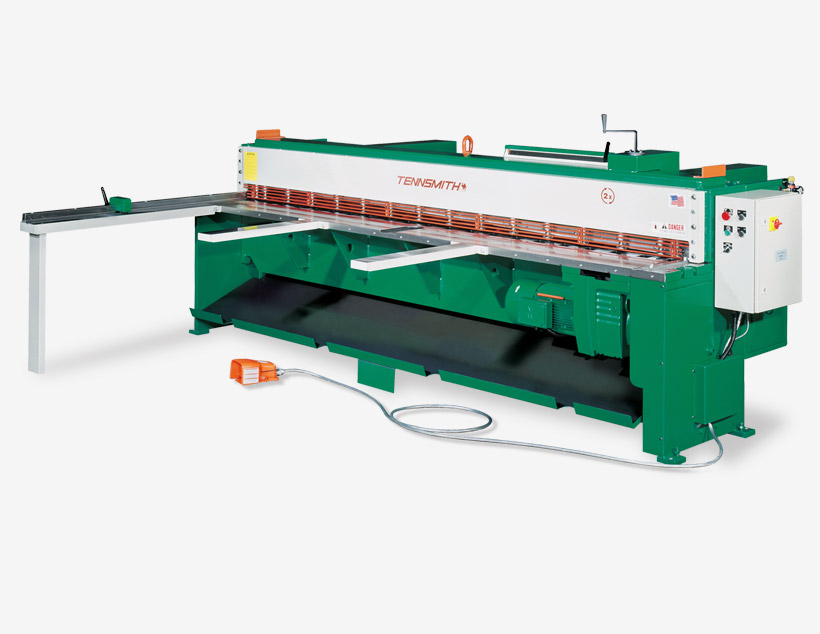

Tennsmith 10′ x 14 Gauge Electro-Mechanical Shear with Front Return Sheet Support System Performance Package

Inventory # 5084

Model: LM1014-FC

Made in USA



Mild Steel: 14 Gauge

Stainless Steel: 16 Gauge

Max. Cutting Length: 121″

Back Gauge Range: 30″

Strokes per Minute, Full Length: 35

Number of Hold-Down Feet: 16

Motor: 5 HP / 230v, 460v / 3ph

Standard Features:

Performance system “F” returns the supported material to the front of the machine via a front return chute

Low-profile, high quality

Special Performace Package “FC” Includes:

Moveable Material Cart

5′ Squaring Arm

Two Front Support Arms

Air Operated (Front) Return Sheet Support System

Mechanical Specifications:

Dimensions: 143″ x 72″ x 56″ H

Shipping Weight: approx. 5,900 lbs.

Contact us for special pricing and availability

FOB Factory

*** Optional Digital Readout Available

Additional information

Weight 5900 lbs
