Supertec 60″ x 12.6″ Cylindrical Grinder, G32P-150M/NC

Shipping: Add to Cart to Calculate

SKU: G32P-150M/NC

Inventory #: 8188

Categories: ,

Condition:

Type:

Brand:

Description

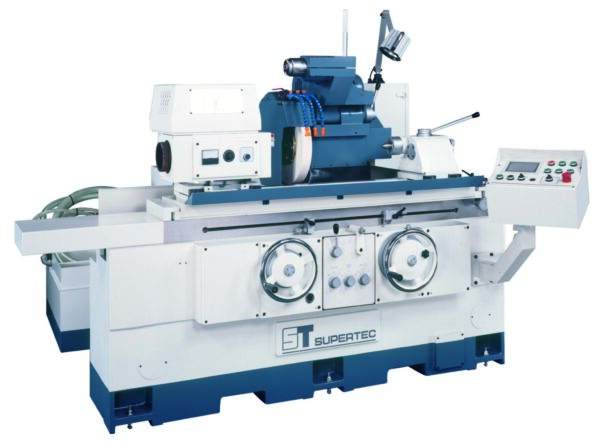

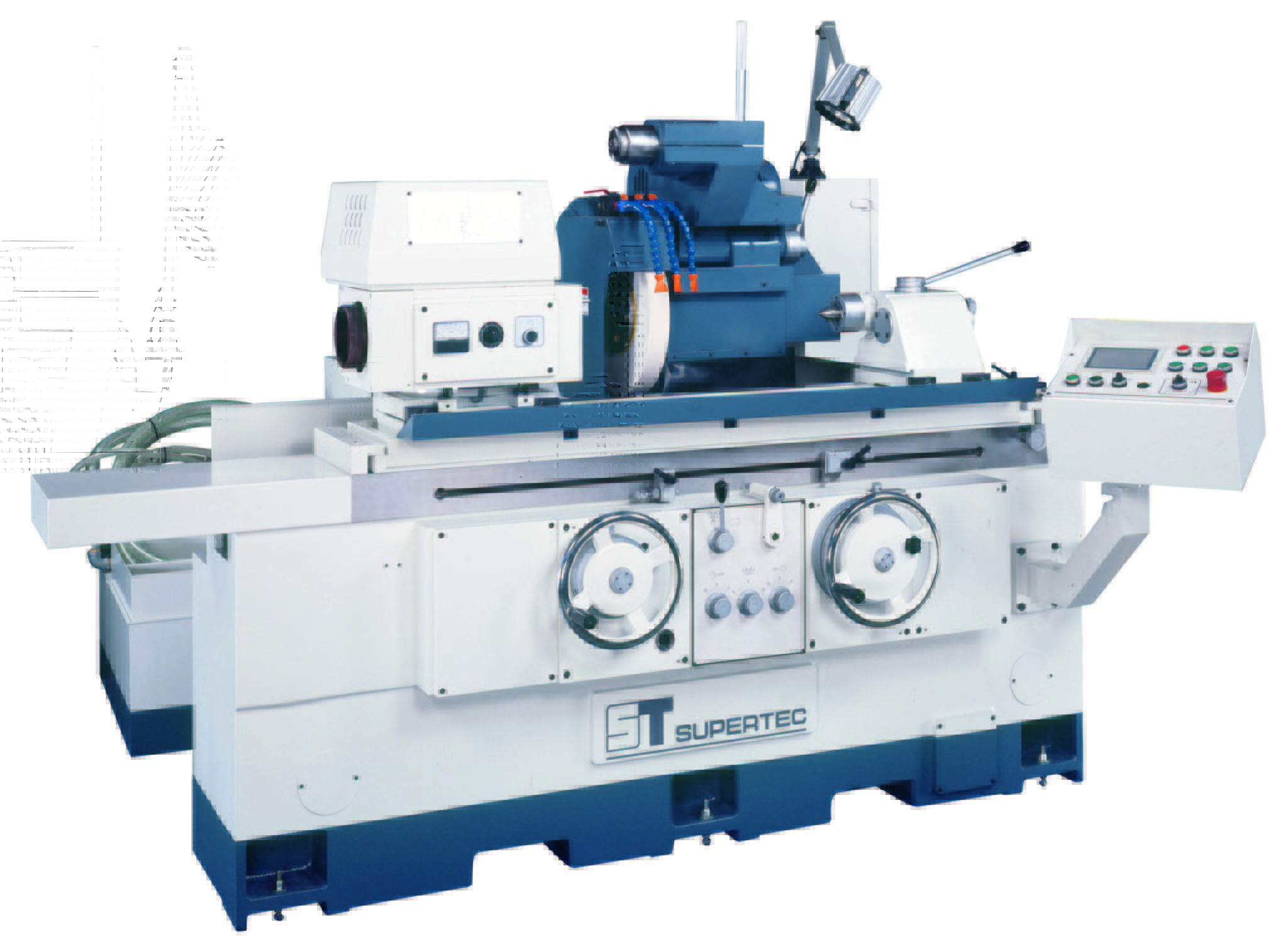

Supertec 60″ x 12.6″ Cylindrical Grinder, G32P-150M/NC

Inventory # 8188

Model: G32P-150M/NC

Read the Supertec Manual & Automatic Cylindrical Grinders PDF Here

Description:

The Supertec cylindrical grinder has been developed for between-center and chucking applications. Available in manual infeed (M Models) or automatic infeed (NC Models), this series of grinders offers a 10″, 12.6″ or 15″ swing and a choice of 20″, 24″, 40″, 60″, or 80″ center distance for various grinding applications. The application is further extended when the optional swing down internal grinding attachment is supplied for internal grinding capability

Specifications:

Capacity:

Distance Between Centers: 60″

Swing Over Table: 12.6″

Max. Grinding Diameter: 12″

Max. Load Held Between Centers: 330 lbs.

Wheelhead:

Swiveling Angle: +/- 30°

Infeed Travel: 9.6″

Hand Feed Travel: 7.8″

Top Slide Travel: 7″

Automatic Rapid Travel: 1 3/4″

Auto Increment Infeed: 0.0001″ – 0.0999″

Handwheel per Graduation: 0.0002″

Handwheel per Revolution: 0.1″

Grinding Wheel:

Dimensions: 16″ x 2″ x 5″

Wheel Speed: 1,650 RPM

Table:

Swiveling Angle: +/- 5°

Traverse Speed: 1 1/5″ – 275″ /Min.

Handwheel per Revolution: 4″

Workhead:

Swiveling Angle: 90°

Center Taper: MT 4

Spindle Speed: 30 – 350 RPM

Tailstock:

Center Taper: MT 4

Quill Travel: 1″

(Optional) Internal Grinding:

Spindle Speed: 12,000 – 18,000 RPM OR 25,000 RPM

Max. Grinding Bore: 1.18″ – 3.94″ OR .79″ – 1.97″

Max. Grinding Length: 4.33″ OR 2.17″

Max. Chuck Length: 12 2/5″

Max. Chuck Diameter: 6″

Motor:

Wheel Spindle Motor: 7.5 HP

Standard Accessories:

Balancing Arbor

Wheel Extractor

Grinding Wheel with Flange

Tool Box with Adjusting Tools

Diamond Dresser (Fixed on Table)

Operation Manual with Parts List

Variable Speeds Workhead

Dial Gauge

Splash Guard

Coolant System

Auto Lube System

Carbide Tip Centers

Leveling Screws with Blocks

Halogen Light

Mechanical Specifications:

Shipping Dimensions: 170″ x 90″ x 79″

Shipping Weight: approx. 12,760 lbs.

Contact us for special pricing and availability

FOB Factory

Please Note: This Cylindrical Grinder is Available in Manual and Automatic Operations. Please Specify Desired Model at Time of Order

Optional Equipment:

Automatic Model G32P-150NC

Additional information

Weight 12900 lbs
