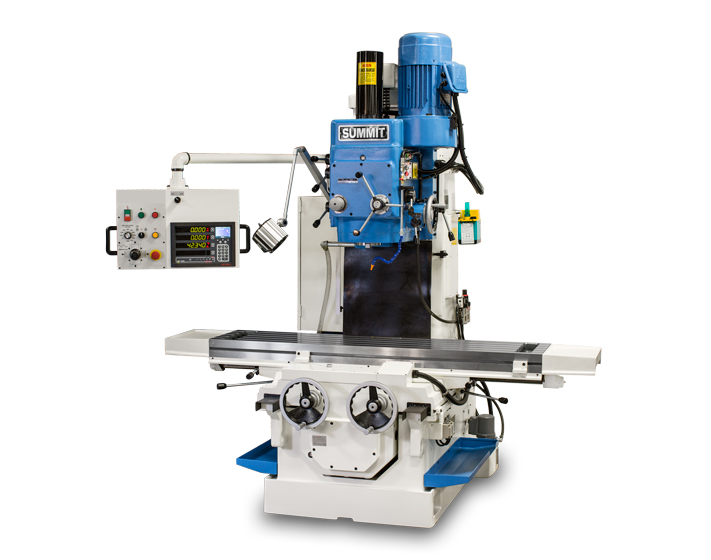

Summit 15″ x 67″ Vertical Bed Mill, # 3VL

Inventory # 8091

Model: # 3VL

Description:

Summit 3V Series Vertical Bed Mills offer high production accuracy due to their heavy construction and innovative design. The large choice of speeds and feeds makes these Vertical Bed Mills the ideal choice for job shops, production shops, repair and tool & die shops. The alloy steel main spindle is thermally treated and precision ground, then fixed on high accuracy bearings and the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table loads

This machine also has an automatic lube system which ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these machines are designed for virtually uninterrupted operation

Specifications:

Working Surface: 15″ x 67″

Longitudinal Travel: 39.4″

Cross Travel (Y-Axis): 15″

Vertical Head Travel (Z-Axis): 19.7″

Spindle Taper: # 50

Spindle Speeds: 45 – 1,500 RPM (12 Steps)

Motor: 7.5 HP

Standard Features:

Automatic lubrication

Conveniently located operator’s panel

Rapid traverse

Ball screws on X & Y-Axis

3-Axis Digital Read Out

Standard Equipment:

Air Power Drawbar

Coolant

Work Light

Spanners and Wrenches

Leveling Bolts and Pads

Mechanical Specifications:

Dimensions: 126″ x 79″ x 95″ H

Weight: approx. 8,800 lbs.

Contact us for special pricing and availability

FOB Factory
