Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6
Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6Standard Industrial 6' x 90 Ton Hydraulic Press Brake, EV90-6

Standard Industrial 6′ x 90 Ton Hydraulic Press Brake, EV90-6

Shipping: Add to Cart to Calculate

Make Offer

SKU: EV90-6

Inventory #: 7473

Categories: ,

Condition:

Type:

Brand:

Product Description

Standard Industrial 6′ x 90 Ton Hydraulic Press Brake, EV90-6

Inventory # 7473

Model: EV90-6

Made in USA

Specifications:

Capacity: 90 Tons

Bed and Ram Length: 6′

Distance Between Housings: 4′ 5″

Adjustable Stroke: 8″

Maximum Open Height: 16″

Closed Height: 8″

Throat (Gap): 8″

Ram Repeatability: +/- .0004”

Three Working Speeds:

Fast Approach: 190 IPM

Pressing Speed: 27 IPM

Return Speed: 190 IPM

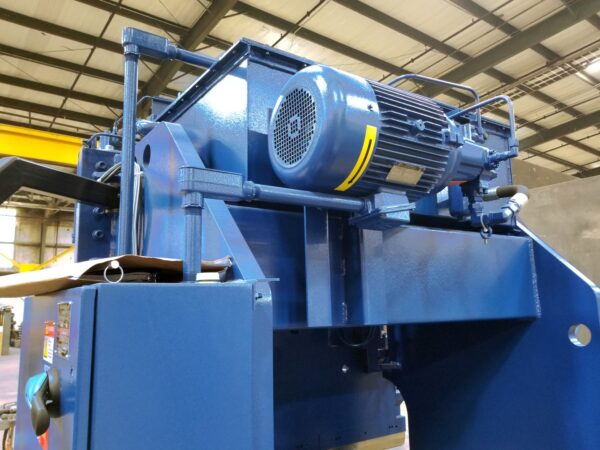

Motor: 10 HP / 220v, 440 v / 3ph

Standard Features:

ESA 640 2-D CNC Graphical Control

Y1 – Y2 Axes, +/- .0004″ ram repeatability and programming of the ram position (vertical) as well as tilting +/- .750″ (or more) for tapered bends (cones)

Front Gauging, (2) 24″ T-slot support arms with imbedded scale

T-slot across front edge of brake bed

10″ deep gaps in side frames for bending longer lengths with larger flanges

The parallelism between moving upper beam and fixed lower beam during is ensured by two precision proportional valves controlled by the CNC control (axes Y1 and Y2)

(1) 5 1/2″ lower beam

Hydraulic drive including complete hydraulic system

Emergency stop palm button

All components readily available from your local suppliers

Typical 20 – 30 year lifetime

Manual ram clamps for American style tooling (Available with Wila quick-change ram clamping, optionally)

One day on-site training in contiguous U.S.

Mechanical Specifications:

Dimensions: 80″ x 60″ x 112″ H

Weight: approx. 10,000 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight11000 lbs
