Standard Industrial 12′ x 200 Ton Press Brake, AB200-12

Shipping: Add to Cart to Calculate

SKU: AB200-12

Inventory #: 5003

Categories: ,

Condition:

Type:

Brand:

Description

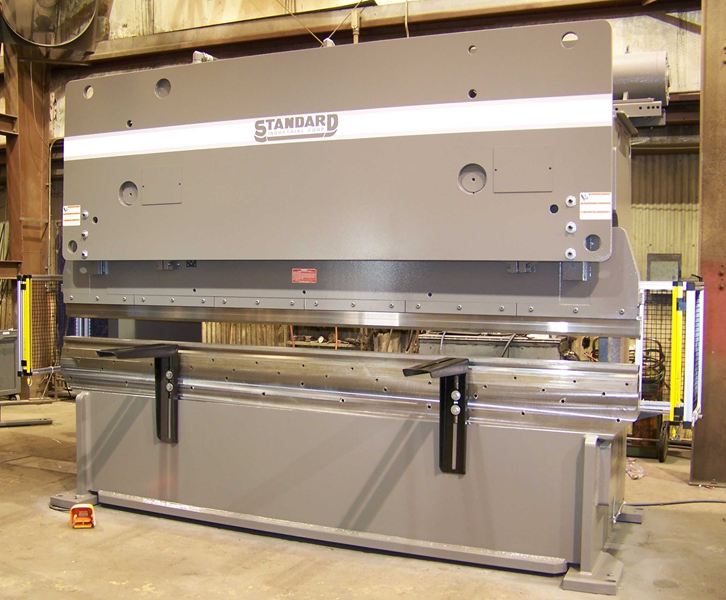

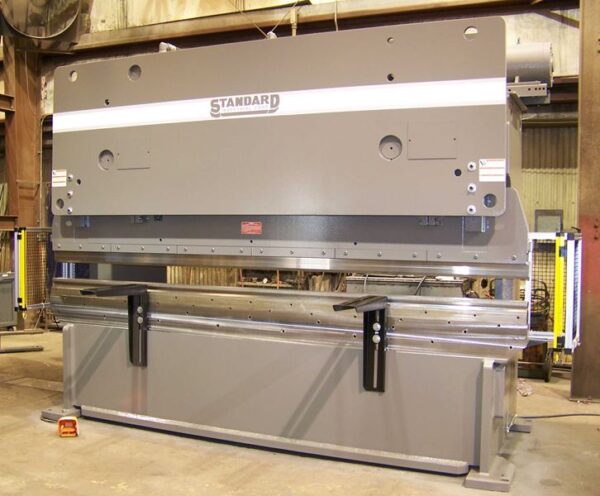

Standard Industrial 12′ x 200 Ton Press Brake, AB200-12

Inventory # 5003

Model: AB200-12

Made in USA

Specifications:

Capacity:

Forming: 200 Tons

Punching: 135 Tons

Bed/Ram Length: 12′

Between Frames: 10′ 5″

Open Height: 14″

Stroke: 8″

Closed Height: 6″

Throat Depth: 10″

Standard Features:

Full-tonnage throughout stroke

Solid, non-moveable lower beam substantially more rigid than “bed level” press brakes

+/- 0.001″ ram repeatability

Off-center loading capability

The most heavy duty press brake built in the USA

Extremely heavy duty lower beams allowing the least amount of deflection. Less deflection = longer tool life = more profitability

Groove in bed for tooling is standard on all brakes

All components are readily available from your local suppliers and are covered by Standard Industrial’s 5 year warranty

All parts will be ready available for a lifetime from anywhere in the USA

Precision mechanical in-line depth stop as back-up for any CNC control

The in-line depth stop ensures no down-time due to computer failure

Typical 30+ year lifetime, plus lifetime of parts and service availability

5 year across the board parts and limited labor warranty

Mechanical Specifications:

Weight: approx. 32,000 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 33000 lbs
