Sharp 16" x 60" Precision Lathe, 1660-LV
Sharp 16" x 60" Precision Lathe, 1660-LV

Sharp 16″ x 60″ Precision Lathe, 1660-LV

Shipping: Add to Cart to Calculate

Make Offer

SKU: 1660-LV

Inventory #: 2186

Categories: ,

Condition:

Type:

Brand:

Product Description

Sharp 16″ x 60″ Precision Lathe, 1660-LV

Inventory # 2186

Model: 1660-LV

Specifications:

Swing Over Bed: 16″

Swing Over Cross Slide: 8 3/4″

Swing Over Gap: 24 3/8″

Gap Width: 10 3/4″

Distance Between Centers: 60″

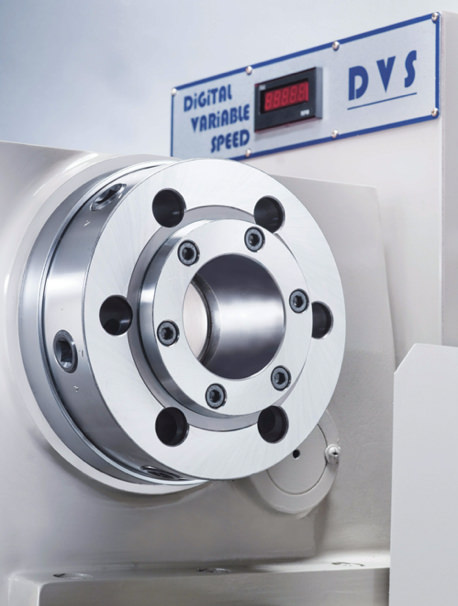

Spindle Nose Type: D1-8 Camlock

Spindle Bore Diameter: 3 1/16″

Spindle Speeds: 20 – 2,000 RPM (12 Steps)

Morse Taper of Spindle Bore (of Center): # 6 (# 4)

Longitudinal Feeds: 0.02″ – 0.032″ /rev. (18)

Cross Feeds: 0.001″ – 0.0094″ /rev. (12)

Inch Threads: 4 – 56 Threads/Inch (36)

Metric and Module Threads: 0.5 – 7mm (17)

D.P. Threads: 4 – 56 (36)

Lead Screw Pitch / Diameter: 4 TPI / 1 3/8″

Compound Rest Travel / Width: 4.9″ / 4 1/2″

Bed Size: 77″ x 11 3/4″

Tailstock Quill Travel (Graduated): 5″

Tailstock Quill Diameter: 2 1/4″

Tailstock Taper: M.T. # 4

Motor: 7.5 HP / 220v, 440v / 3ph

Standard Equipment:

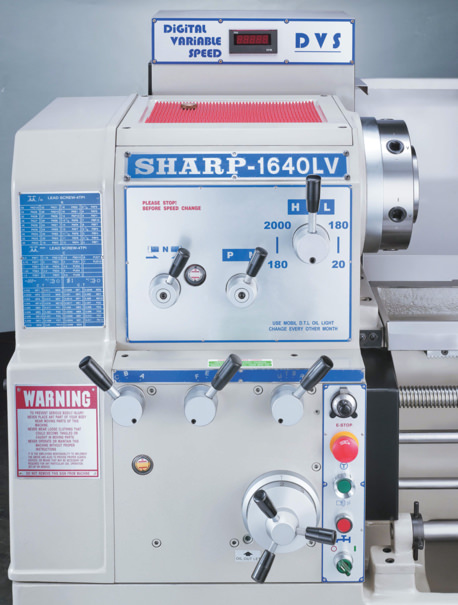

Digital Vari-Speed

3-Jaw Chuck

Coolant System

Halogen Work Light

Face Plate

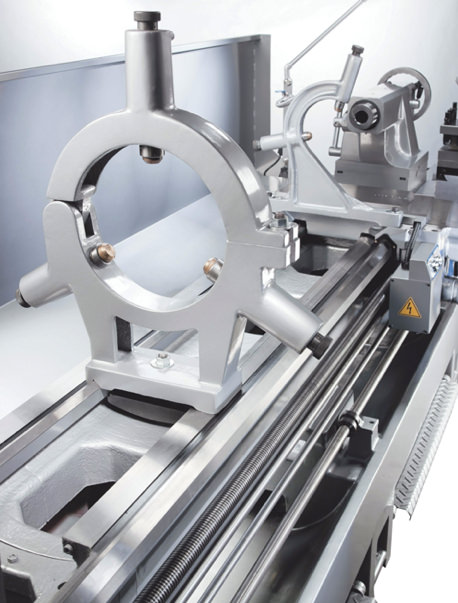

10 1/2″ Steady Rest

Longitudinal Carriage Stops

Tool Kit

Splash Guard

Follow Rest

Mechanical Specifications:

Weight: approx. 4,100 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight4500 lbs
