Sharp 16" x 40" Precision Lathe, 1640L

Sharp 16″ x 40″ Precision Lathe, 1640L

$19,905.00

Shipping: Add to Cart to Calculate

Make Offer

SKU: 1640L

Inventory #: 8333

Category:

Condition:

Type:

Brand:

Product Description

Sharp 16″ x 40″ Precision Lathe, 1640L

Inventory # 8333

Model: 1640L

Specifications:

Swing Over Bed: 16″

Swing Over Cross Slide: 8 3/4″

Swing Over Gap: 24 3/8″

Width of Gap: 9 3/4″

Center Height from Top of Compound: 1.9″

Distance Between Centers: 40″

Spindle Nose Type: D1-8 Camlock

Spindle Bore: 3 1/16″

Spindle Speeds: 40 – 2,000 RPM (12 Steps)

Taper of Spindle Bore: MT # 6

Taper of Center: MT # 4

Longitudinal Feeds: 0.002″ – 0.032″ /Rev.

Cross Feeds: 0.0001″ – 0.0094″ /Rev.

Inch Threads: 4 – 56 TPI

Metric and Module Threads: 0.5 – 7 mm

Leadscrew Pitch, Diameter: 4 TPI. 1 3/8″

Cross Slide Travel: 8.7″

Compound Rest Travel: 4.9″

Compound Width: 4 1/2″

Bed Length: 59″

Bed Width: 11 3/4″

Quill Travel: 5″

Quill Diameter: 2 1/4″

Quill Taper: MT # 4

Motor: 7.5 HP / 220v, 440v / 3ph

Standard Equipment:

10″ 3-Jaw Chuck

Coolant System

Halogen Work Light

16″ Face Plate

1/2″ – 6″ Steady Rest

American Tool Post

Full Length Splash Guard

Follow Rest

Longitudinal Carriage Stops

Center Sleeve

Dear Centers

Tool Kit

Contact us for special pricing and availability

FOB Factory

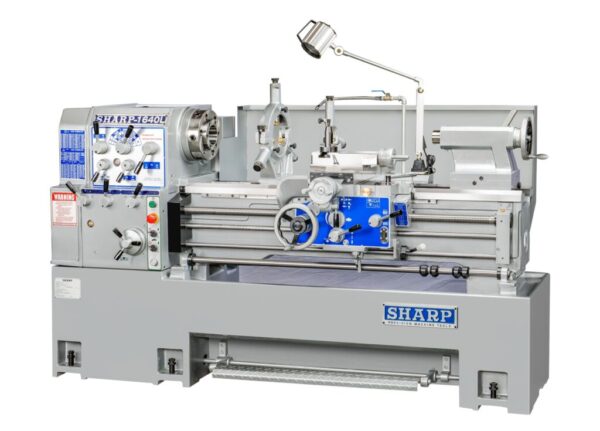

Please Note: Photo is of Model 1640LV and is for Representation Purposes Only. Actual Product Purchased May Differ in Appearance

Additional Information

Weight4500 lbs
