Description

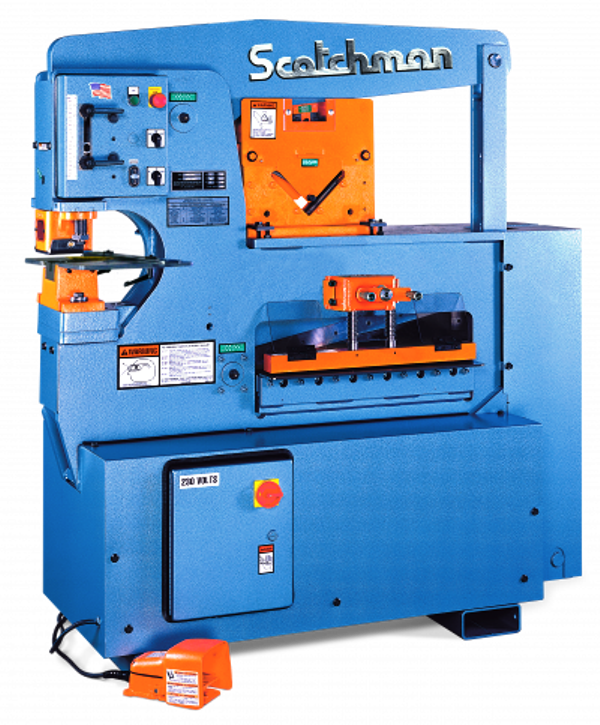

Scotchman 65 Ton 3-Station Hydraulic Ironworker, 6509-24M – New, In Stock, & Ready to Ship!
Inventory # 10058
Model: 6509-24M
Made in USA
Specifications:
Punching Capacity: 65 Ton, 1 1/16″ in 3/4″
Special Tooling: 4″ Max. Diameter
Throat Depth: 9″
Flat Bar Shear: 24″ Length, 1″ x 6″, 3/4″ x 10″, 1/2″ x 12″, 3/8″ x 16″, 1/4″ x 24″
Angle Shear:
@ 90°: 6″ x 6″ x 3/8″, 5″ x 5″ x 1/2″
@ 45°: 3″ x 3″ x 3/8″, 4″ x 4″ x 1/2″ (with Bar Shear)
Brake: 12″ – 40 Ton, 24″ – 30 Ton
Open End Brake: Max. 1/4″ x 5″ Flat or Angle Iron
Pipe Notcher (Sch. 40 I.D.): 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Rectangle Notcher: 2″ x 2 1/2″ x 3/8″
90° V Notcher: 6″ x 6″ x 5/16″
Channel Shear: 2″ – 5″ (Adjustable)
Rod Shear:
Round Rod: 1/4″ – 1 1/4″, 9 Cav.
Square Rod: 1/4″ – 1″, 1 Cav.
Square Tube Shear: 1/2″ – 2″, 12 Gauge
Picket Tool: 1/2″, 3/4″, 1″, 16 Gauge
Offset Die Holder: Max. 40 Ton
Strokes per Minute:
Light Material: 1/4″ Stroke
Heavy Material: 3/4″ Stroke
Hydraulics: 2,600 PSI
Motor: 5 HP / 220v / 1ph
Standard Features:
Single Operator, 4 Stations
65 Ton Punch Station
Keyed Punch Ram for Safety
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2″ Die Insert
Punch Nut with Wrench and Stripper
One Round Punch and Die – Max. Diameter: 1 1/4″
Jog Control
Adjustable Electric Stroke Control with Scale
Electric Remote Foot Pedal
Flat Bar Shear with 4-Way Reversible Blade
Shear Table with Miter Fence
Angle Shear
Tool Table Work Area
LED Work Lights
Slug Receptacle
Two-Stage Hydraulic Pump
Electrical Box Supplied with Emergency Palm Button and Lock-Out Tag-Out Accommodations
All Guards Necessary to Comply with ANSI B11.5 Safety Standards
Forklift Accommodations
Three-Year Warranty for Parts
Mechanical Specifications:
Dimensions: 24″ x 60″ x 66″ H
Weight: approx. 2,300 lbs.
FOB Our Baltimore, MD Warehouse
Please Note: Our Advertised Price Includes In-Bound Freight Expense from Factory to Norman Machine Tool
