Description

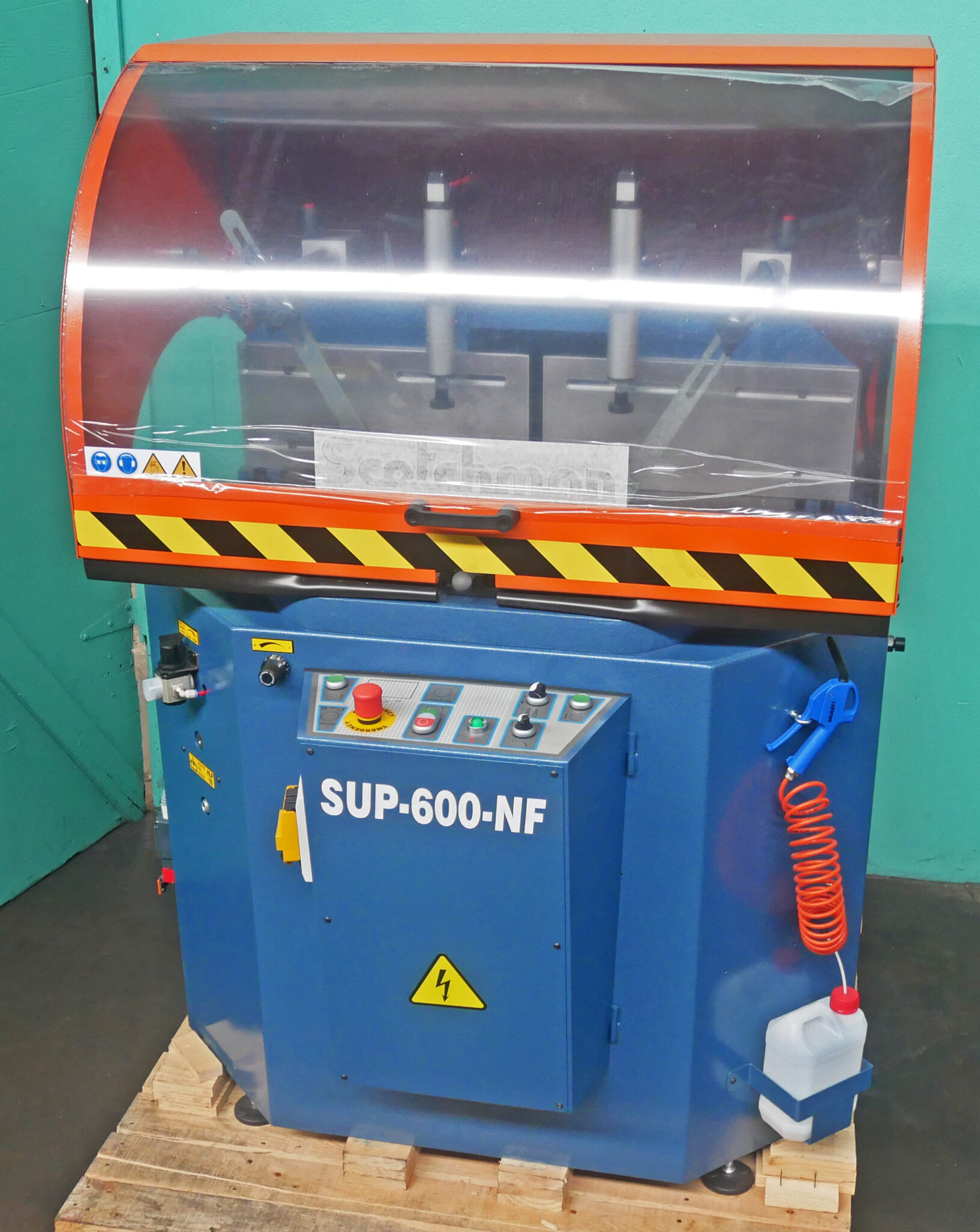

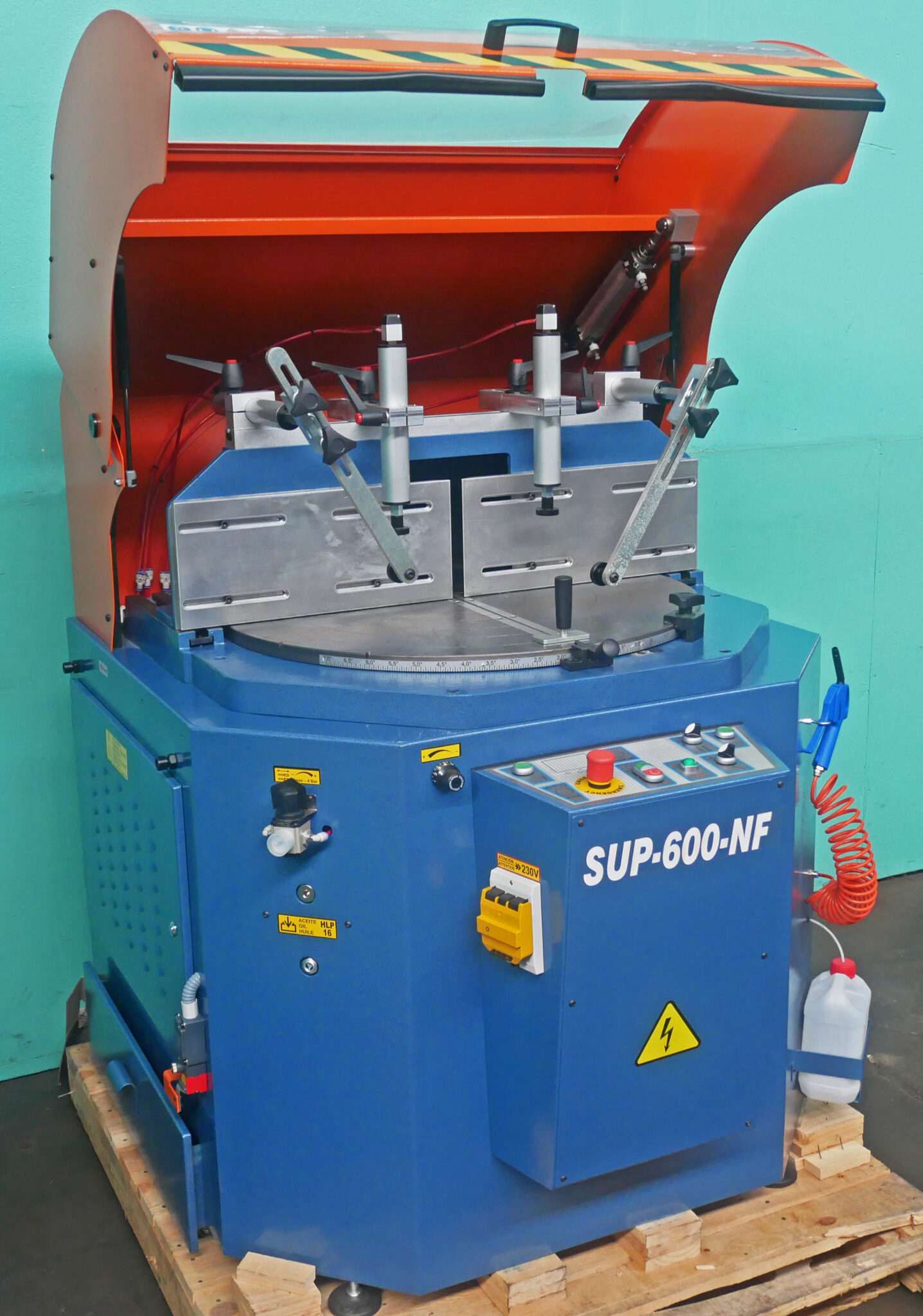

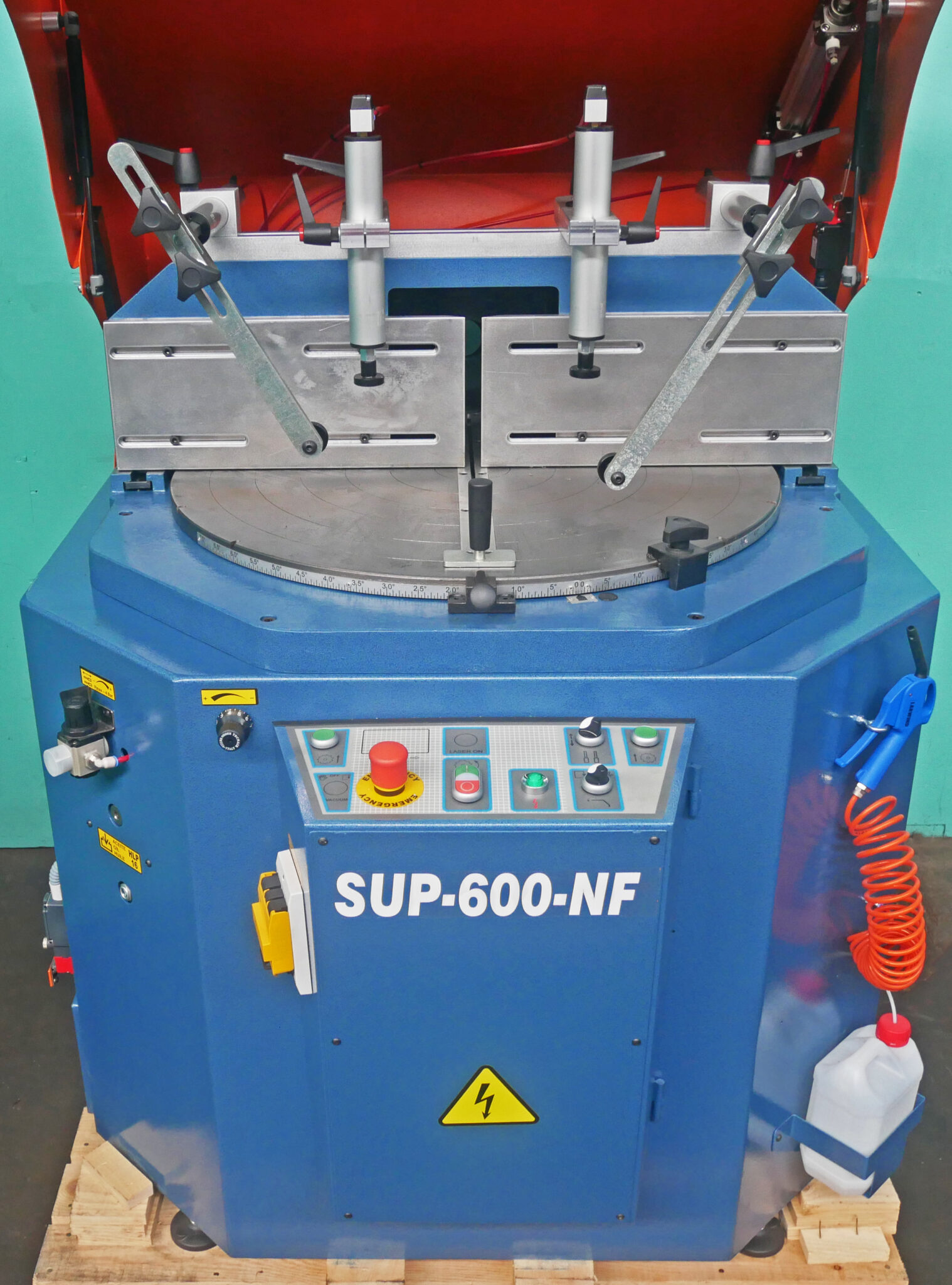

Scotchman 24″ Up-Cut Non-Ferrous Cold Saw, SUP-600
Inventory # 9874
Model: SUP-600
S/N: 468SUP0223
Specifications:

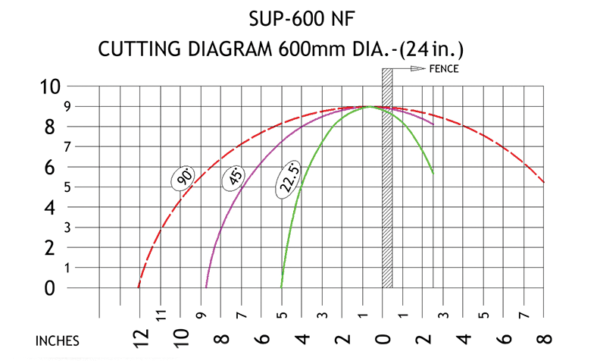

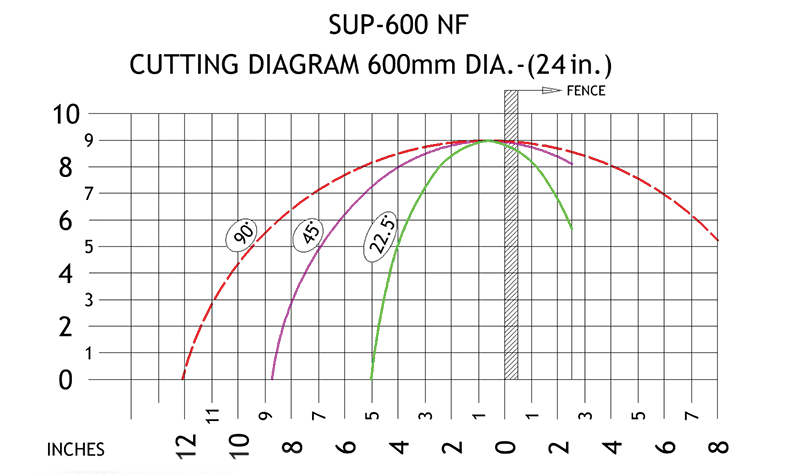

Capacity:
@ 90°:
Round: 9″
Square: 8″
Rectangle: 15″ x 6″
@ 45°:
Round: 9″
Square: 7″
Rectangle: 10″ x 4″
Cutting Speed: 3,000 RPM
Max. Diameter Blade: 24″ (600mm)
Arbor Bore: 1.97″ (50mm)

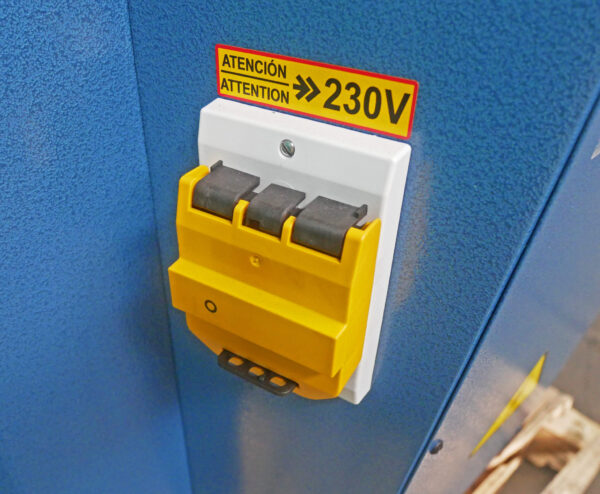

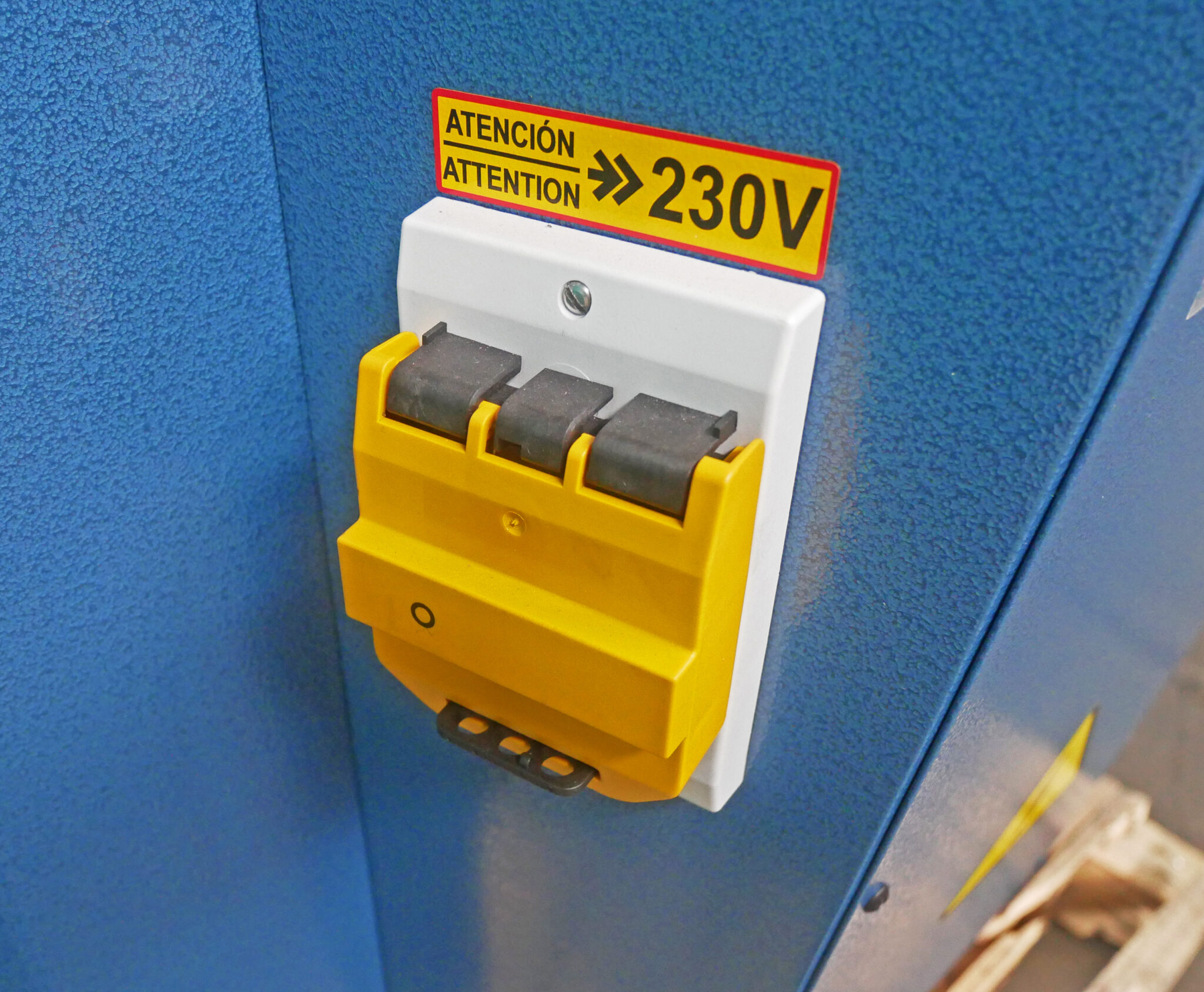

Motor: 5.5 HP / 230v / 3ph
Standard Features & Equipment Included:

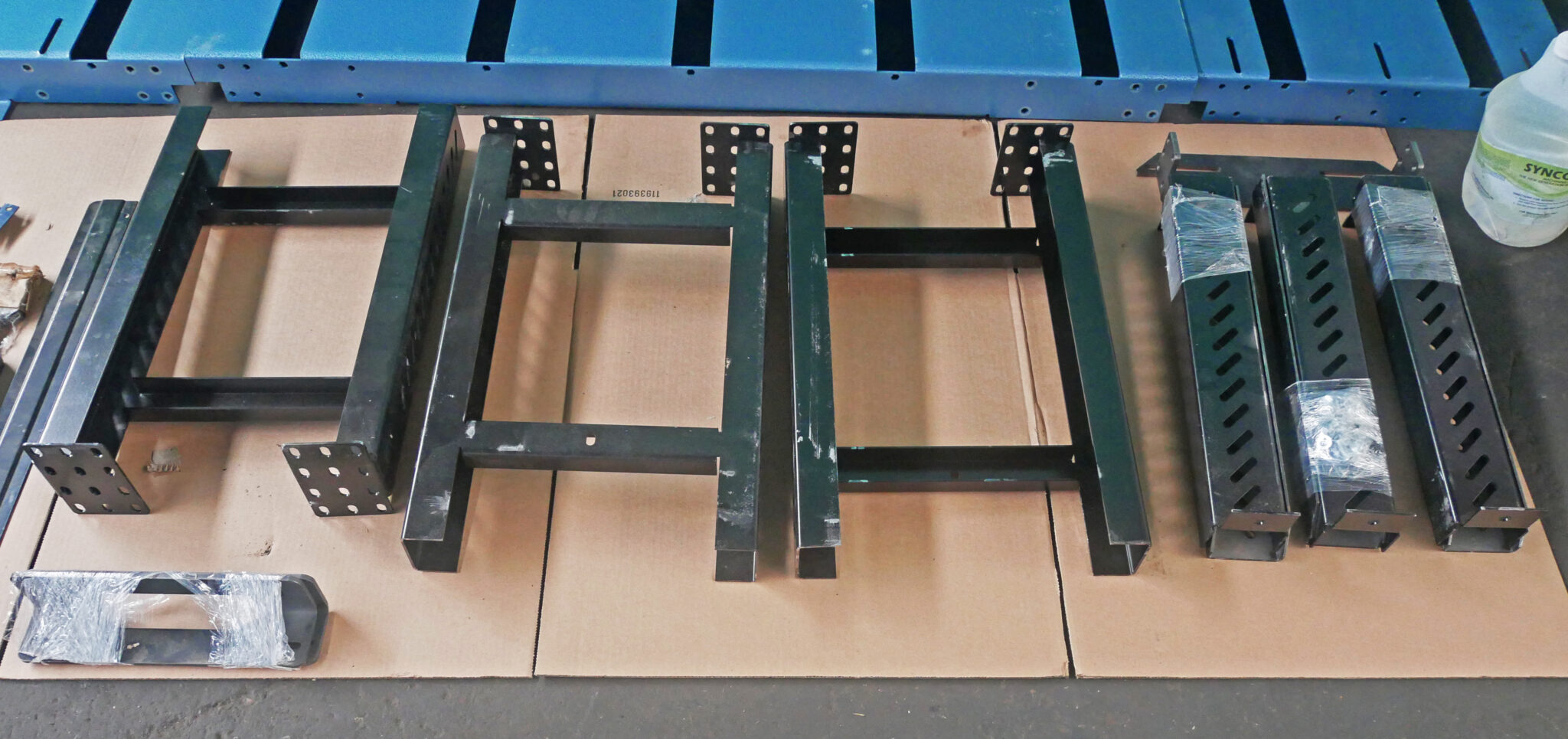

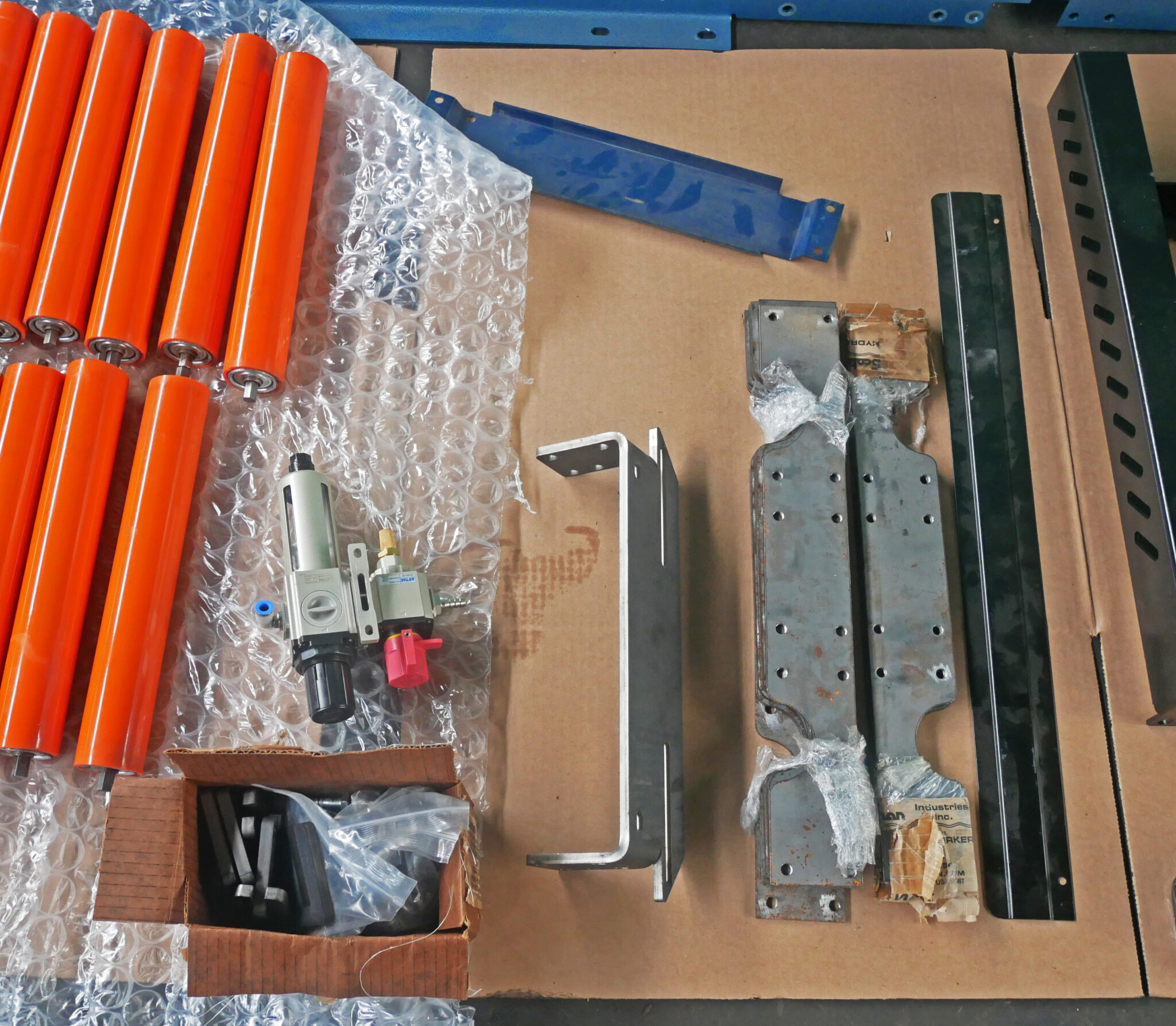

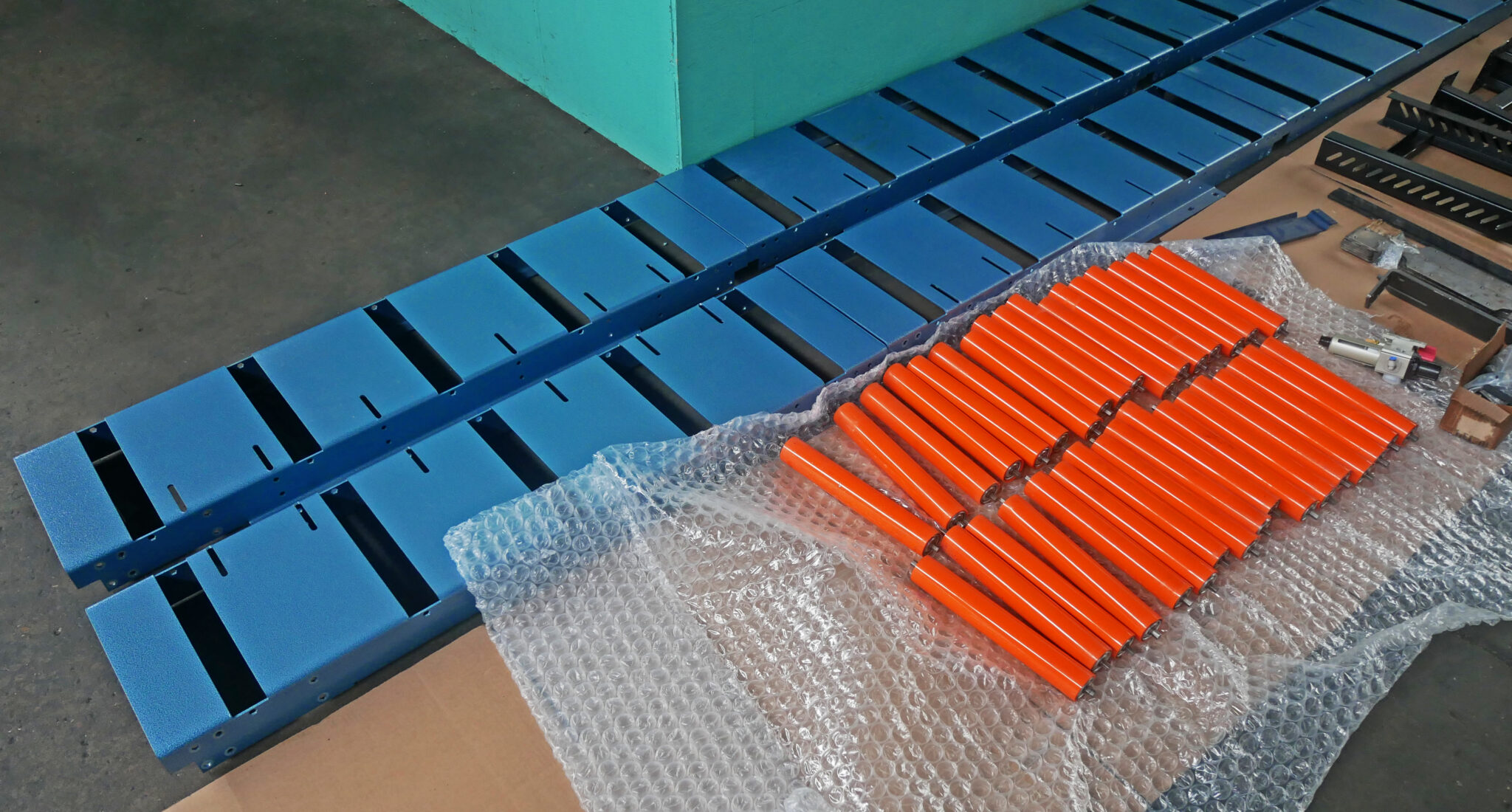

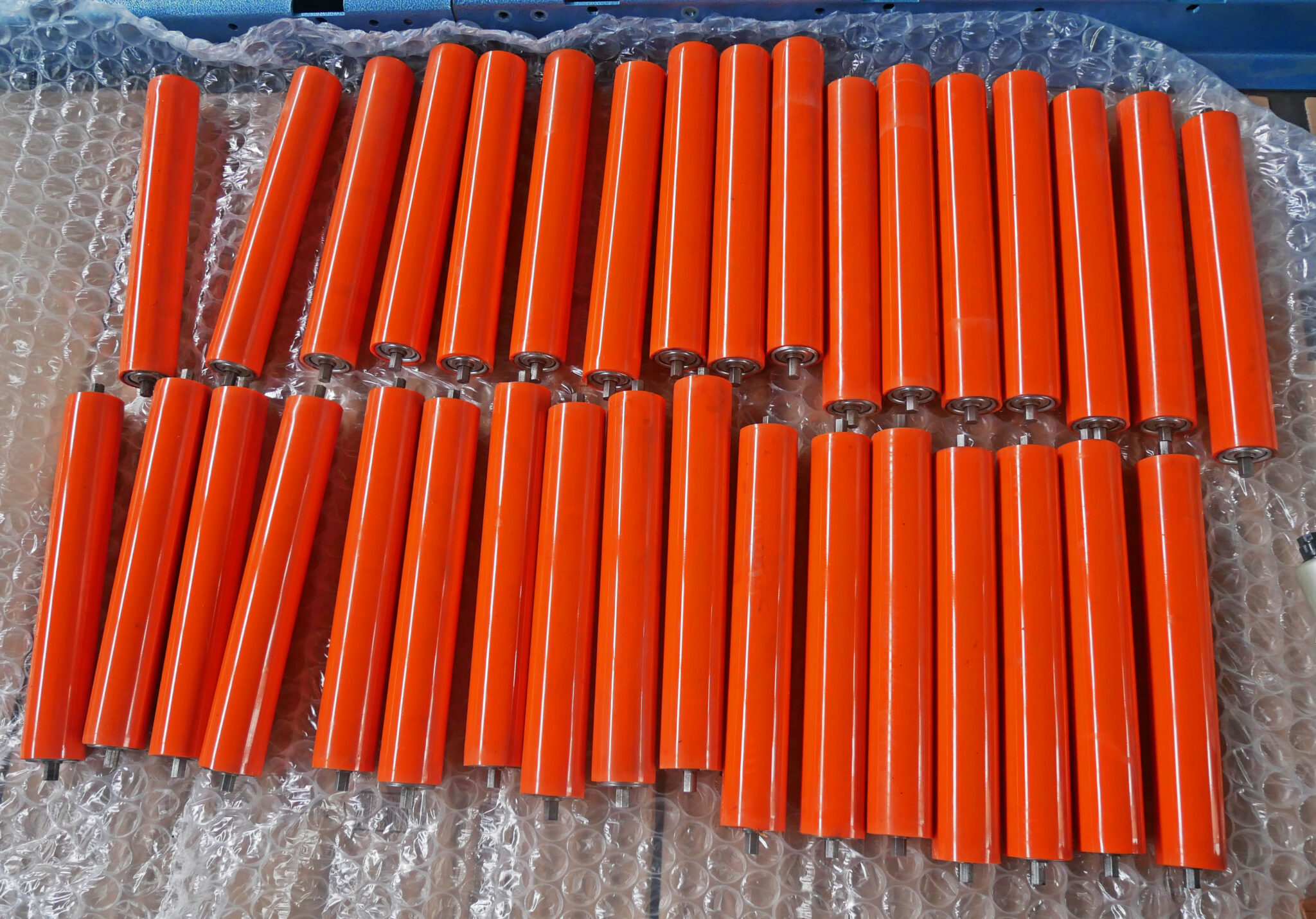

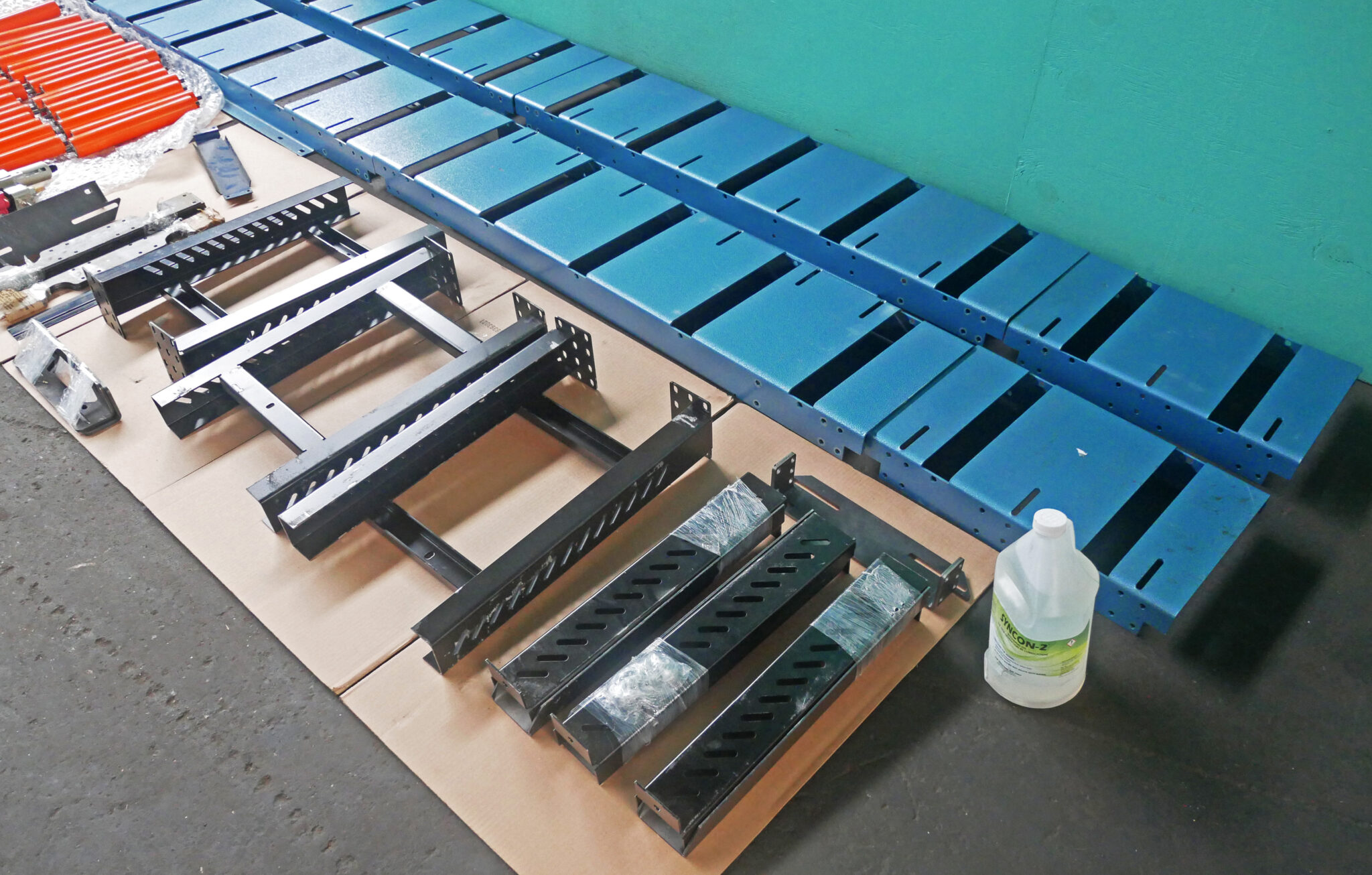

34′ (408″) of Roller Conveyor, 12″ Wide – 34 Rolls

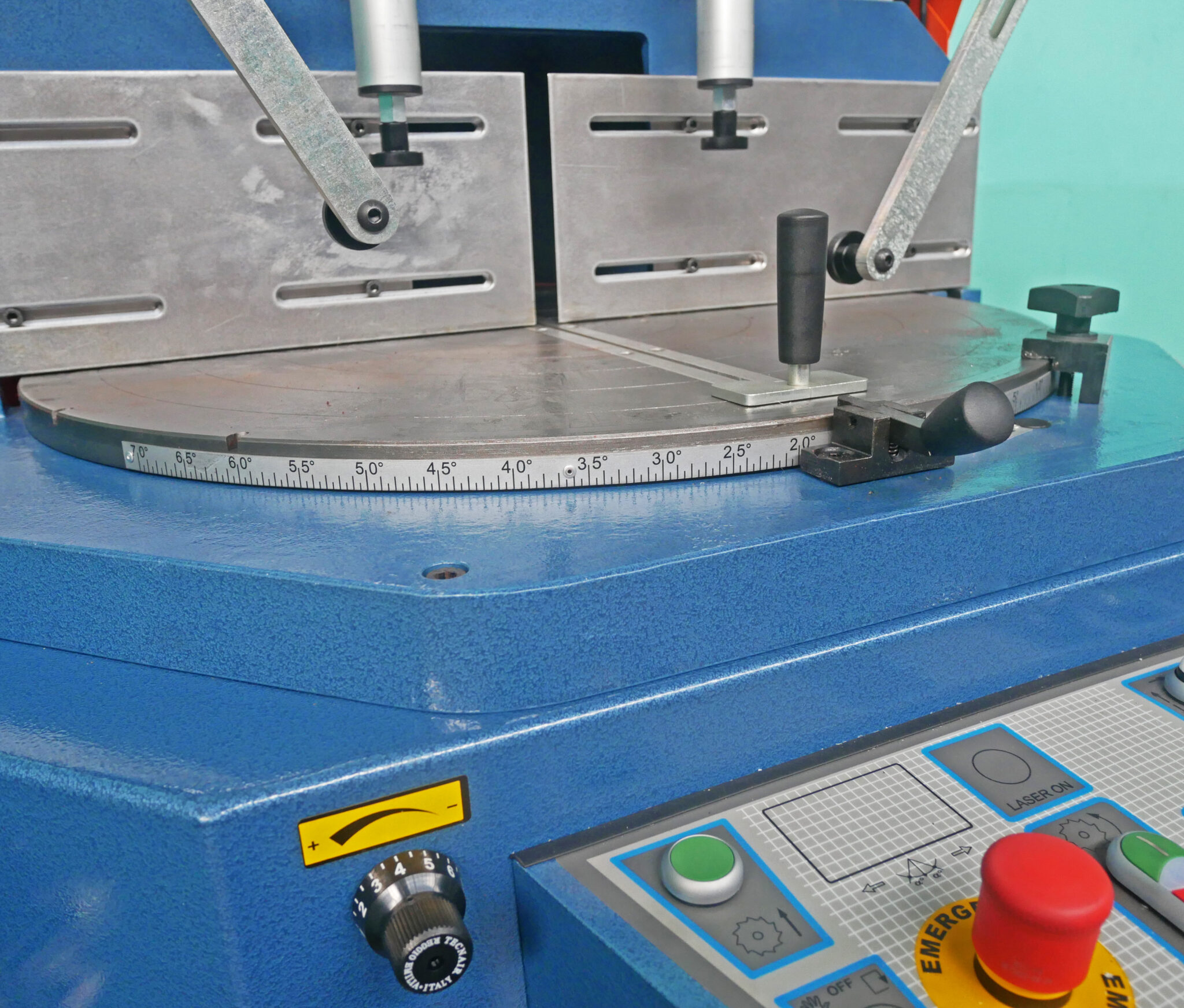

Miter capabilities with fixed stops at 22.5°, 45°, 90°, 135° and 157.5°

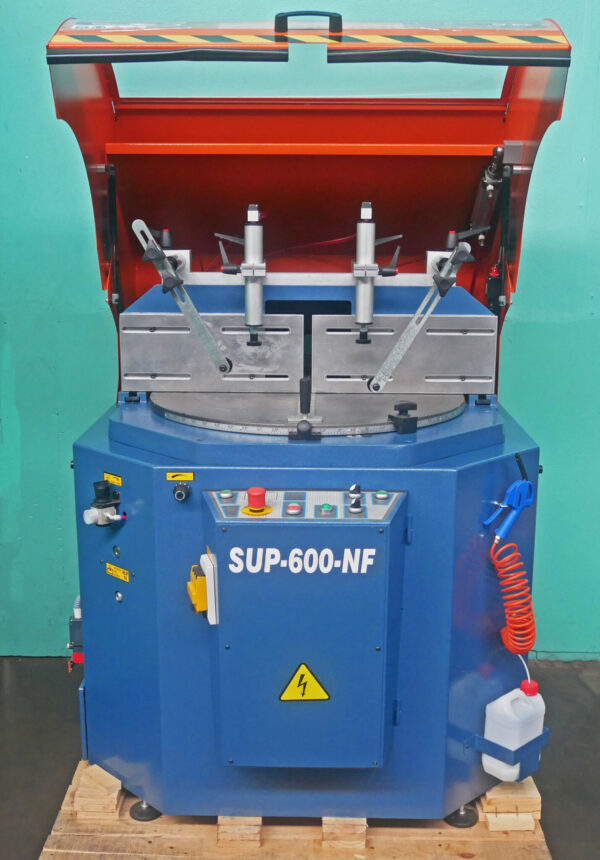

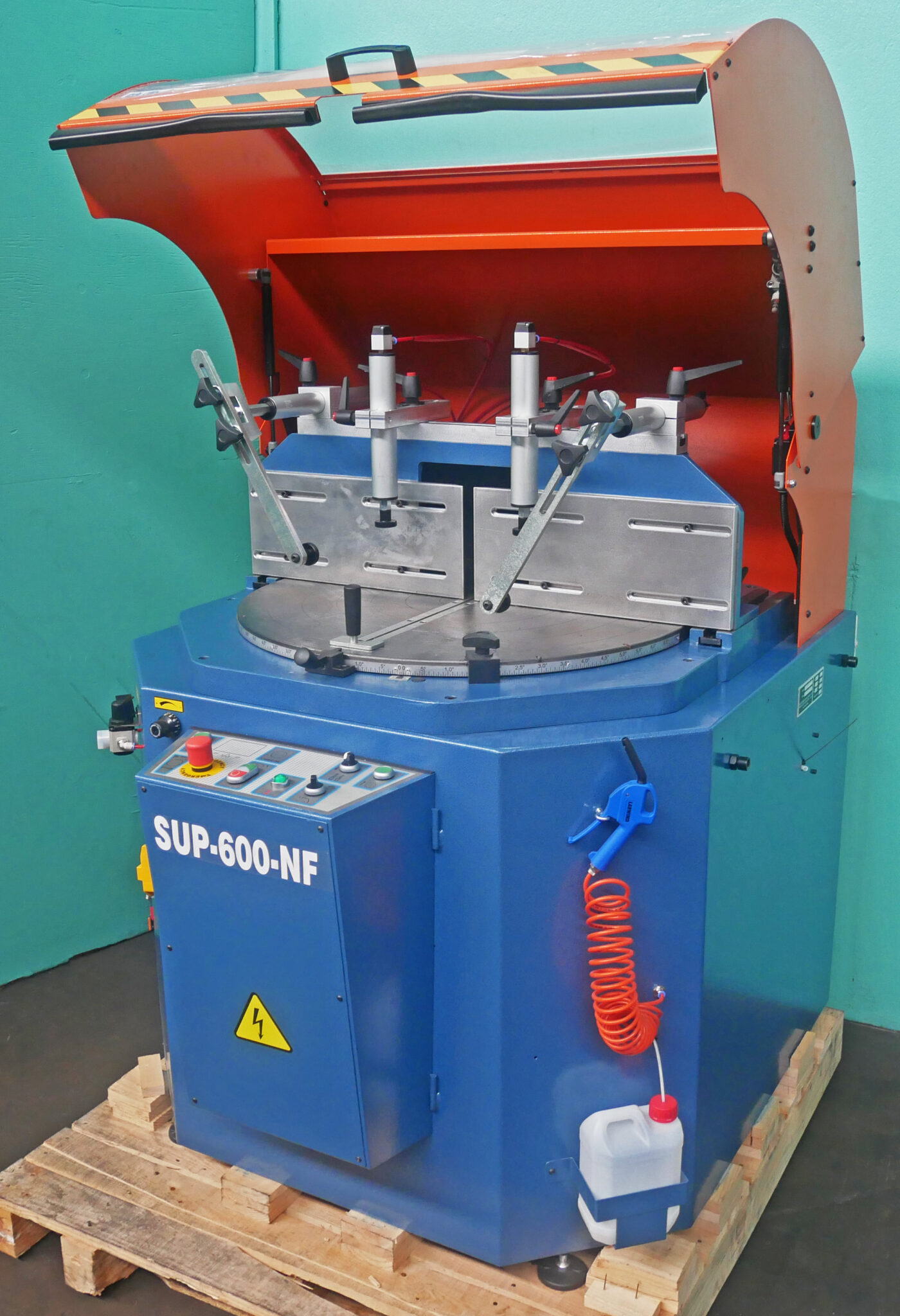

Powered safety hood with safety interlock switch
Blade door with safety interlock switch

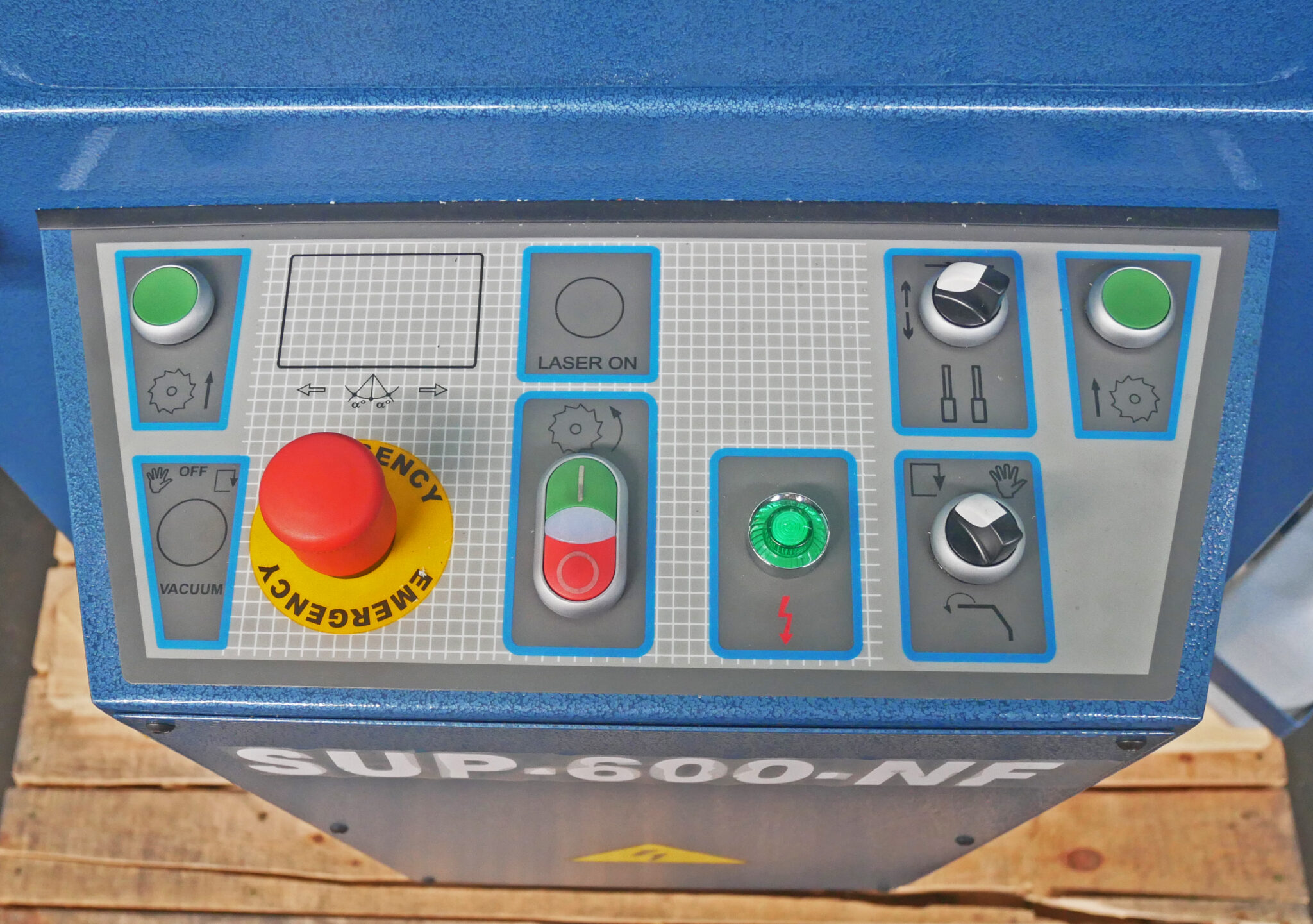

Dual palm buttons
Adjustable feed rate on saw head

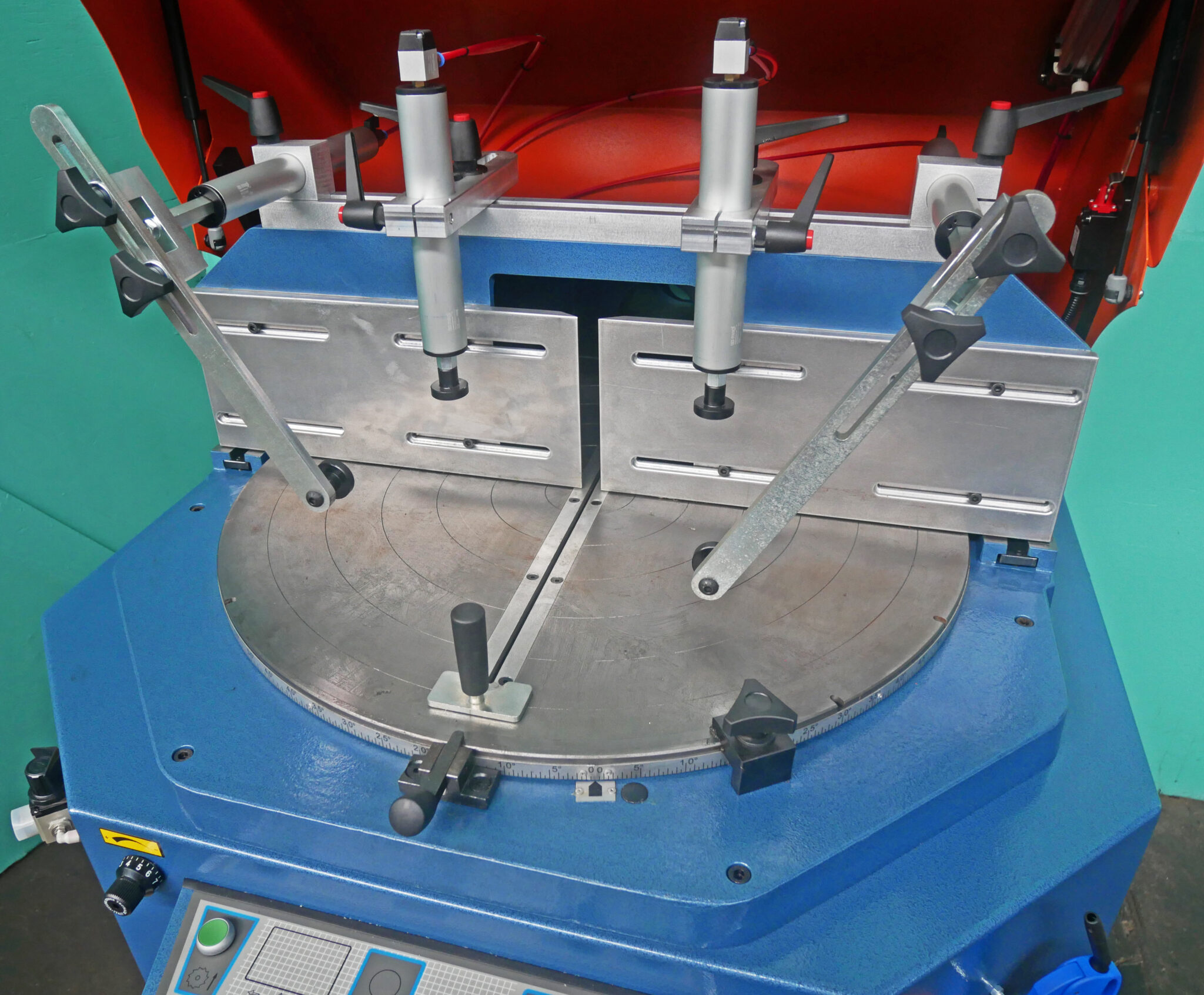

Two horizontal pneumatic clamps
Two vertical pneumatic clamps
Capable of slotting
Moveable back fence for larger capacity
Mist coolant lubrication system

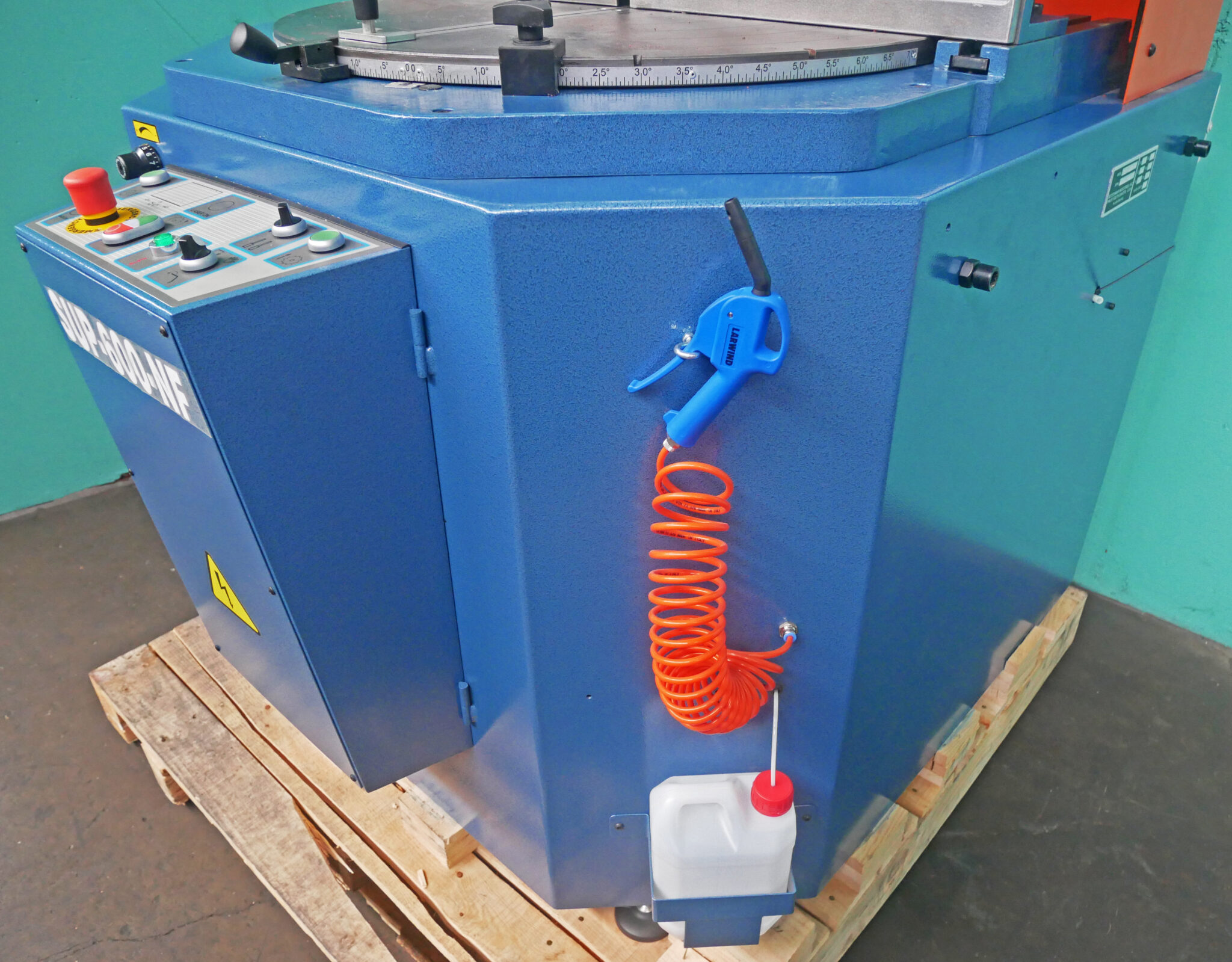

Air hose
Chip collection drawer in base and a 4 3/4″ chip collection port
Adjustable leveling pads
Mechanical Specifications:
Dimensions: 50″ x 55″ x 65″ H
Shipping Weight: approx. 1,500 lbs.
New Replacement Cost: $23,950.00
FOB Our Baltimore, MD Warehouse
