Description
Scotchman 24″ Up-Cut Non-Ferrous Cold Saw, SUP-600
Inventory # 7928
Model: SUP-600 NF
Made in Spain
Description:
The SUP-600 NF is an up-cut circular cold saw designed specifically for cutting non-ferrous material. Featuring a 24″, 132 tooth carbide blade that is capable of producing round cuts up to 9″ in diameter and rectangular cuts up to 15″ x 6″, the SUP-600 NF offers an increased cutting capacity not found in similar Scotchman models
The SUP-600 NF can also be coupled with Scotchman’s AngleMaster Measuring System to give you a true production machine. This saw is available in 230v and 460v configurations and is backed by the Scotchman Industries “best-in-the-business” 3-year warranty
Specifications:

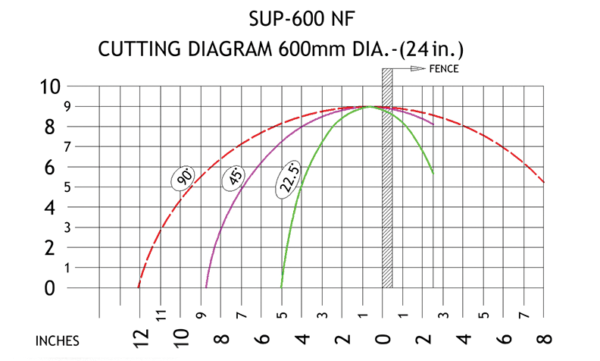

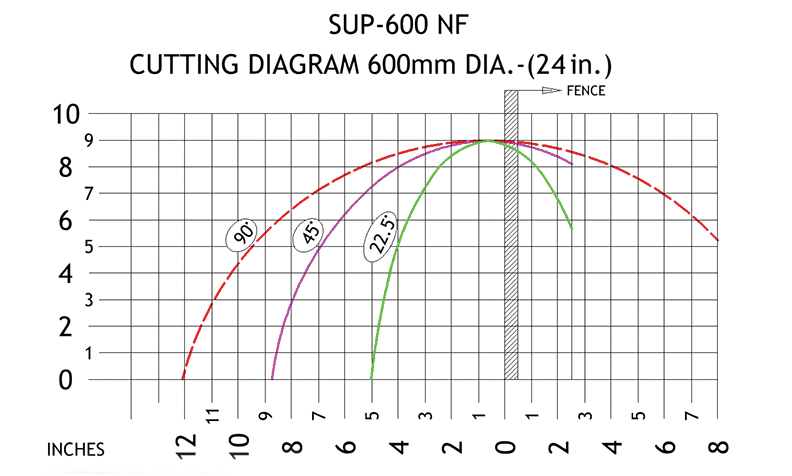

Capacity:
@ 90°:
Round: 9″
Square: 8″
Rectangle: 15″ x 6″
@ 45°:
Round: 9″
Square: 7″
Rectangle: 10″ x 4″
Cutting Speed: 3,000 RPM
Air Pressure: 90 PSI
Max. Diameter Blade: 24″ (600mm)
Arbor Bore: 1.97″ (50mm)
Motor: 5.5 HP / 230v, 460v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
Miter capabilities with fixed stops at 22.5°, 45°, 90°, 135° and 157.5°
Powered safety hood with safety interlock switch
Blade door with safety interlock switch
Dual palm buttons
Adjustable feed rate on the saw head
Two horizontal pneumatic clamps
Two vertical pneumatic clamps
Capable of slotting
Moveable back fence for larger capacity
Mist coolant lubrication system
Air hose
Chip collection drawer in base and a 4 3/4″ chip collection port
Adjustable leveling pads
Meets CE standards
Three-year parts warranty
Mechanical Specifications:
Dimensions: 50″ x 55″ x 65″ H
Shipping Weight: approx. 1,500 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Phase Motor
Please Note: Machine May be Subject to Steel Surcharges, Please Request a Quote
