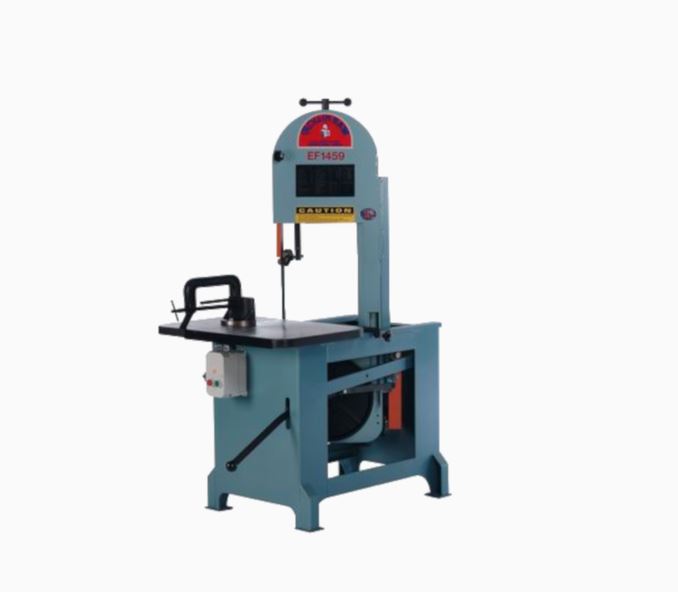

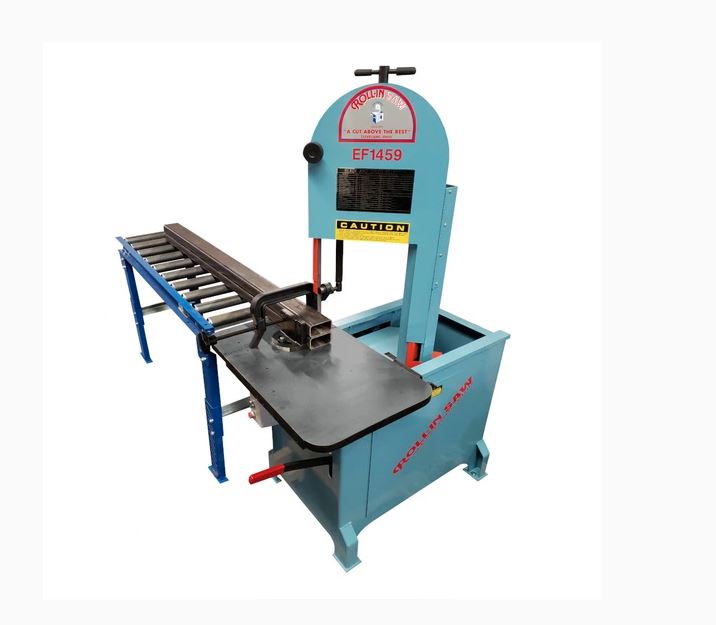

Roll-in Saw 14 1/2″ x 8 1/2″ “The Original” Band Saw, EF1459
Inventory # 8871
Model: EF1459 “The Original”
Description:
“The Original” was the first saw in America to use a patented gravity-feed system that saves time and energy. The success of this product is the bedrock for the reputation Roll-In Saw has earned for manufacturing versatile and durable saws
The EF1459 is actually a horizontal band saw on a vertical frame. An all-purpose band saw, it handles all metals, plastics, and woods in a wide variety of cuts. It is a fast, accurate cut-off machine that is perfect for notching, slitting, and slotting
A reliable addition to your shop floor or tool room, this band saw doubles as a contour, profile, and rip saw
Specifications:
Feed System: Gravity Feed
Blade Travel: 9″ into Work
Cutting Capacity @ 90°:
Round: 8 1/2″
Rectangle: 14 1/2″ x 8 1/2″
Miter Cut Angle Range: 0° to 45°
Capacity Under Guides: 14 1/2″
Throat: 8 3/4″
Blade Size: 10′ x 3/4″ x .035″
Blade Size (Accepted Widths): 1/4″, 3/8″, 1/2″, 5/8″, and 3/4″
Blade Speeds: 70, 140, 270, and 525 FPM
Table: Precision Ground Cast Iron Table, 18 1/2″ x 30″
Table Height: 30″ From Floor
Motor: 1 HP / 110v, 220v / 1ph OR 220v, 440v / 3ph
Standard Features:
The first saw in America to use a patented gravity-feed system providing users an efficient feed rate
Fast and accurate all-purpose saw–easily cutting all metals, plastics, and woods
Horizontal band saw on a vertical frame gives users the versatility of both saw styles; precision for complex cuts and auto-feed for high volume cutting
Mechanical Specifications:
Shipping Dimensions: 33″ x 48″ x 72″ H
Shipping Weight: approx. 650 lbs.
Contact us for special pricing and availability
FOB Factory
