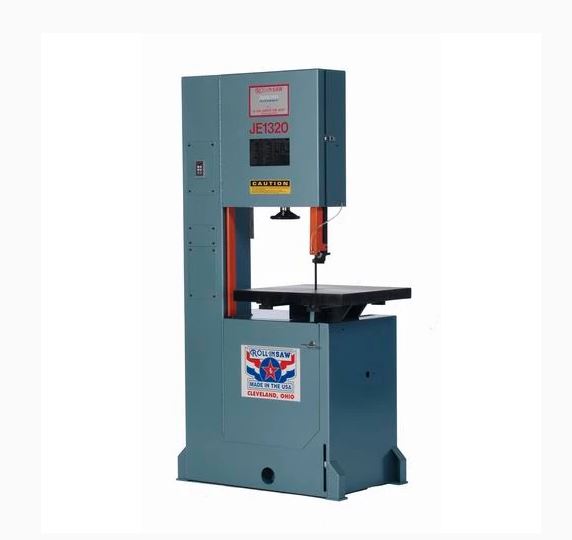

Roll-in Saw 13″ x 20″ “The Journeyman” Vertical Band Saw, JE1320
Inventory # 8872
Model: JE1320 “The Journeyman”
Description:
“The Journeyman” provides the strength and agility to make straight or detailed cuts on 13″ material. This saw is designed to provide you decades of service. Extend the life of the saw blade by utilizing the chip blower; adjusting the blade speed with the digital keypad; or by using the optional saw blade welder, grinder, and shear
Specifications:
Cutting Capacity @ 90°:
Round: 13″
Rectangle: 13″ x 20″
Miter Cut Angle Range: 0° – 45°
Capacity Under Guides: 13″
Throat: 20″
Blade Size: 12′ 10″ x 3/4″ x .035″
Blade Size: (Accepted Widths) 1/4″, 3/8″, 1/2″, 5/8″, and 3/4″
Blade Speeds: 70 – 500 SFPM (Digital Speed Control)
Table: Precision Ground Steel Table; 24″ x 24 1/2″
Table Height: 37″ from Floor
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Accurately control blade speed with the on-board digital inverter drive
Adjusto-Blok guides for 1/4″ to 3/4″ blade widths
Optional saw blade welder, grinder, and shear for longer saw blade life
Mechanical Specifications:
Shipping Dimensions: 48″ x 38″ x 86″ H
Shipping Weight: approx. 750 lbs.
Contact us for special pricing and availability
FOB Factory
