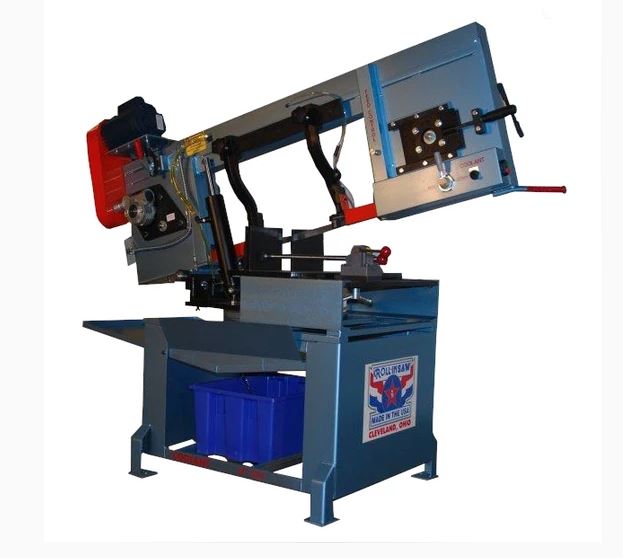

Roll-in Saw 12″ x 10″ Horizontal Wet Miter Saw, HW1212
Inventory # 8877
Model: HW1212
Description:
The HW1212 takes the dependable base of the HM1212 and adds a built-in coolant system. This reliable saw features a hydraulic feed system for controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12″ material
With a quick clamp that can be moved to either side of the 12″ x 26 1/2″ table, material can be fed from either direction, allowing more versatility. The built-in coolant system has side splash panels, an 8 gallon coolant reservoir, and 3.5 GPM pump. This HW1212 built-in coolant system provides you a cleaner system that provides extended life of the blade
Specifications:
Feed System: Hydraulic cylinder for controlled feeds
Blade Travel: 12″
Cutting Capacity @ 90°:
Round: 12″
Rectangle: 12″ x 10″
Cutting Capacity @ 45°:
Round: 9″
Square: 9″
Cutting Capacity @ 60°:
Round: 6″
Square: 6″
Miter Cut Angle Range: 0° – 60°
Capacity Under Guides: 12″
Blade Size: 11′ 8″ x 1″ x .035″
Blade Size: (Accepted Widths) 1″
Blade Speeds: 70 / 140 / 270 SFPM
Table: Precision Ground Steel Table: 13″ x 26 1/2″
Table Height: 30″ from Floor (No Casters)
Motor: 1 HP / 110v, 220v / 1ph
Standard Features:
Fast accurate cut on materials up to 12″ thick
Saw easily swivels up to 60″ in either direction, allowing for precise angled cuts
The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
Built-in coolant system enables faster cuts and extends the life of the saw blades
Mechanical Specifications:
Shipping Dimensions: 96″ x 41″ x 56 1/2″ H
Shipping Weight: approx. 1,000 lbs.
Contact us for special pricing and availability
FOB Factory
