Description

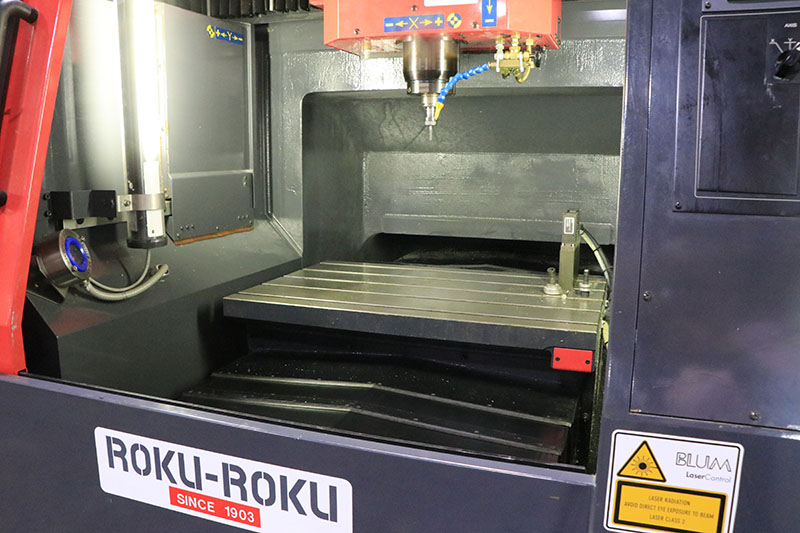

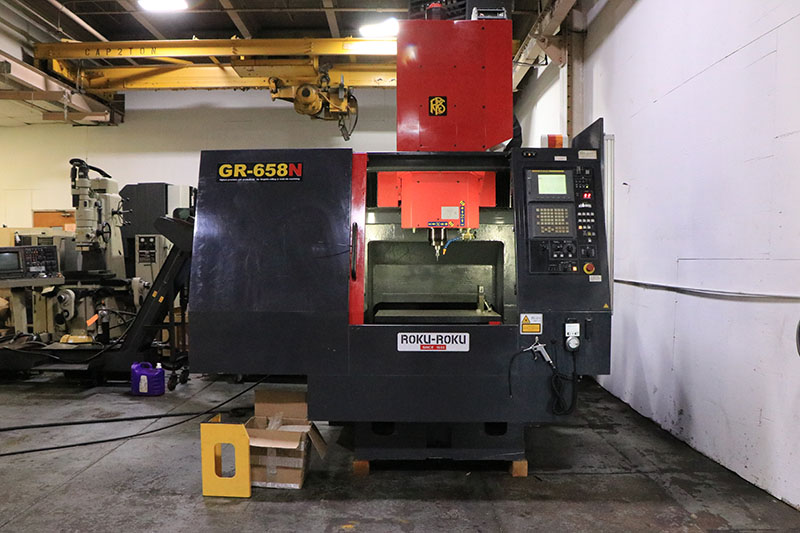

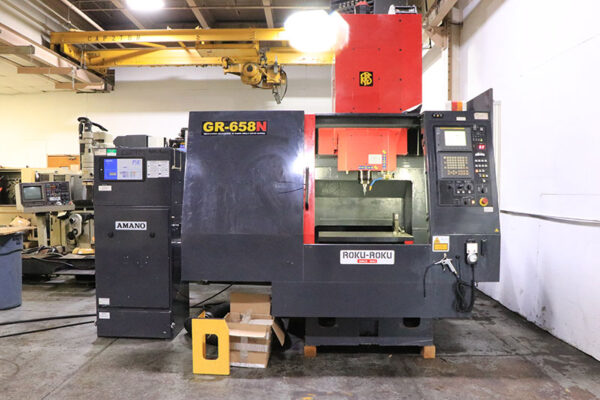

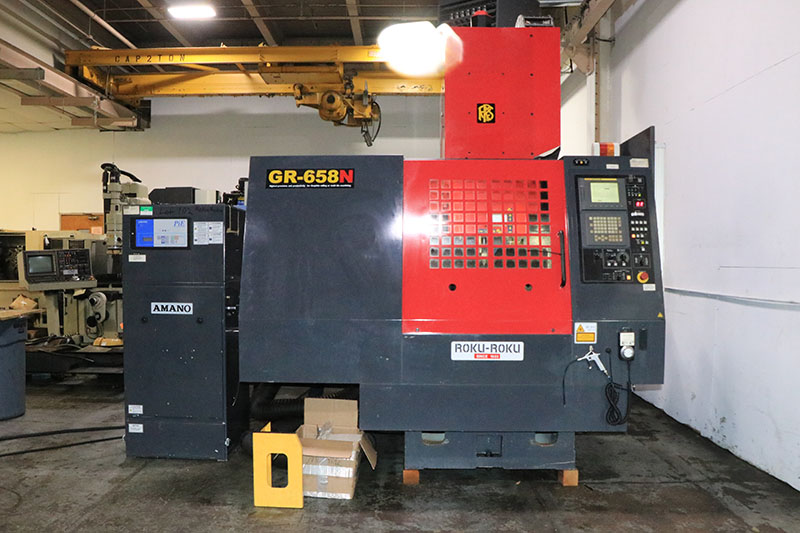

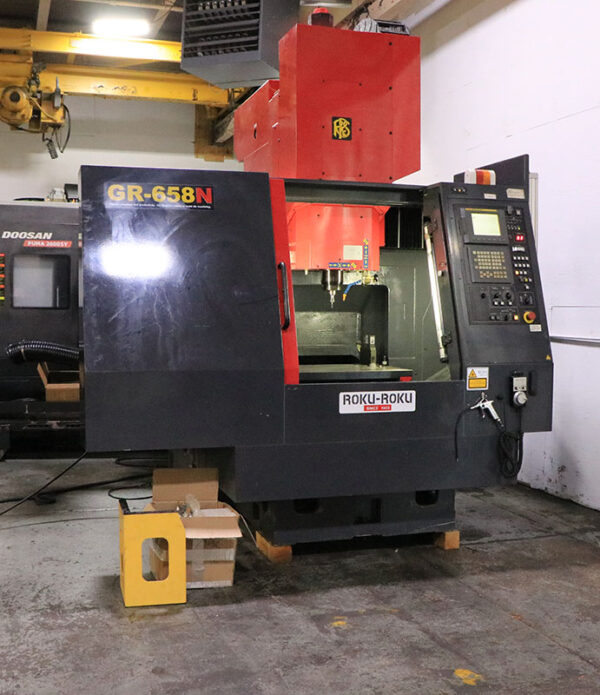

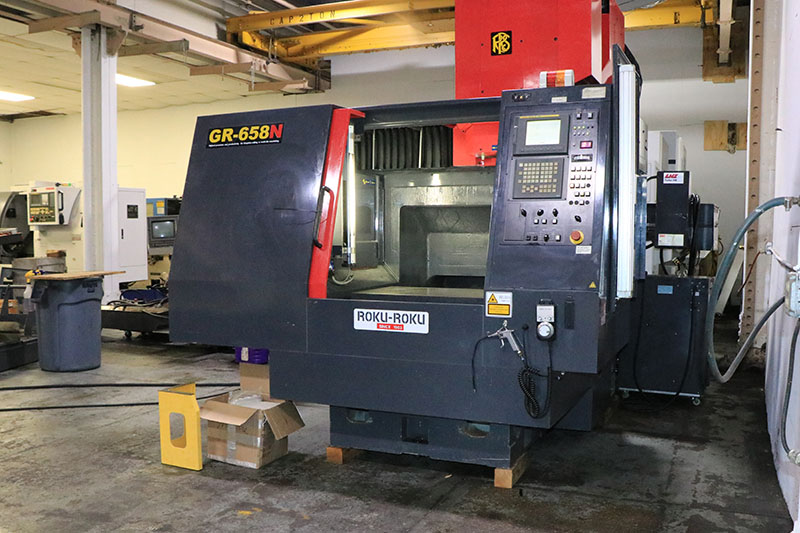

Roku Roku 23″ x 15″ High-Precision High-Speed Graphite Milling Machine, GR-658N
Inventory # 9930-P

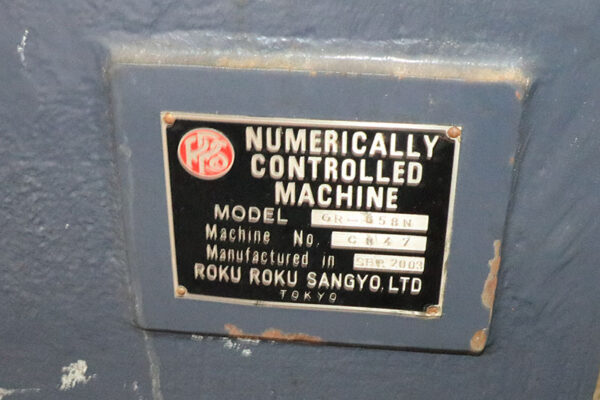

Model: GR-658N
S/N: C047
Specifications:
Travel:
X-Axis: 23.62″
Y-Axis: 19.685″
Z-Axis: 15.748″
Distance from Spindle Nose to Table: 7.87″ – 23.62″ (200mm – 600mm)

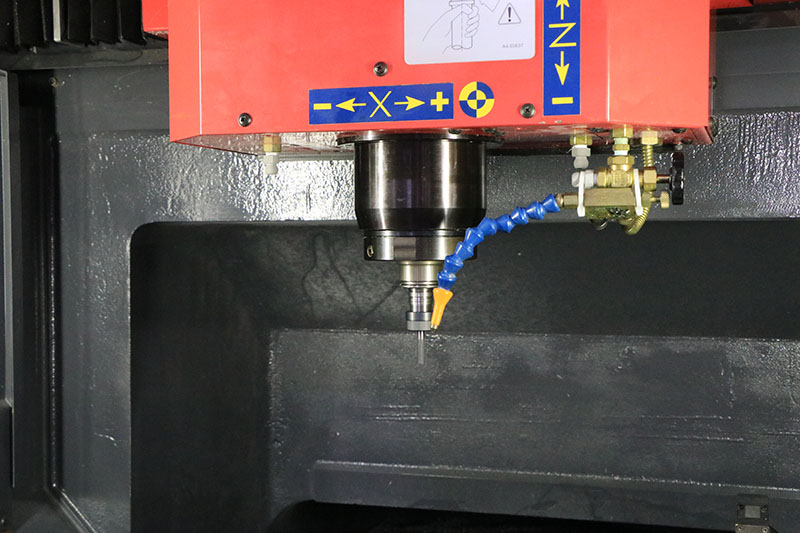

Spindle Speed: 32,000 RPM
Spindle Taper: HSK E40
Tool Capacity: 12 ATC
Rapid Traverse Rates: 787 IPM

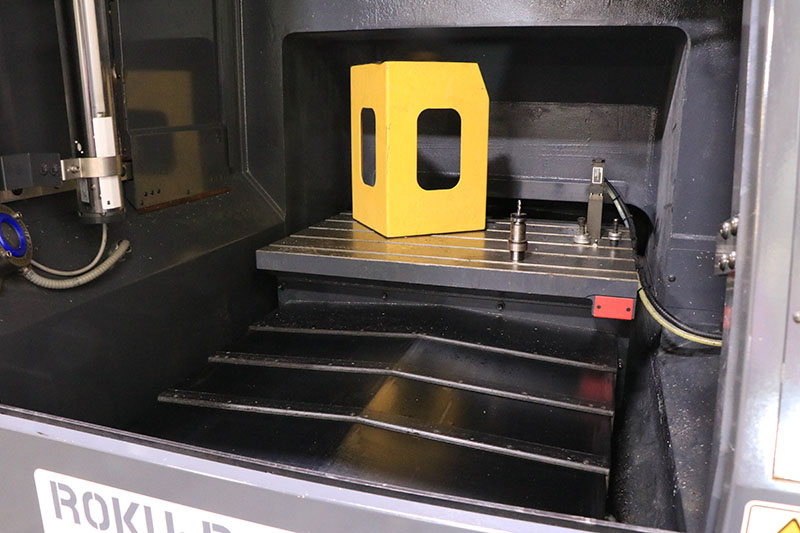

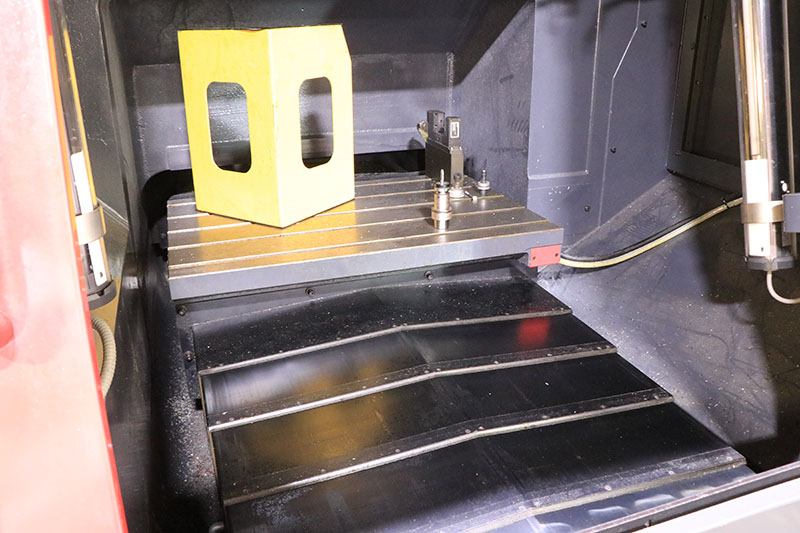

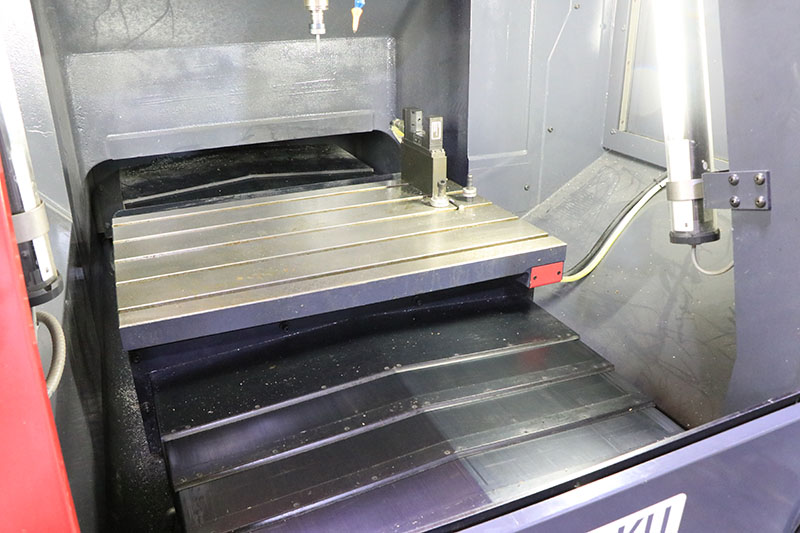

Table Size: 19.685″ x 29.53″
Table Load Capacity: 1,500 lbs.
Motor: 8 HP
Equipment Included:

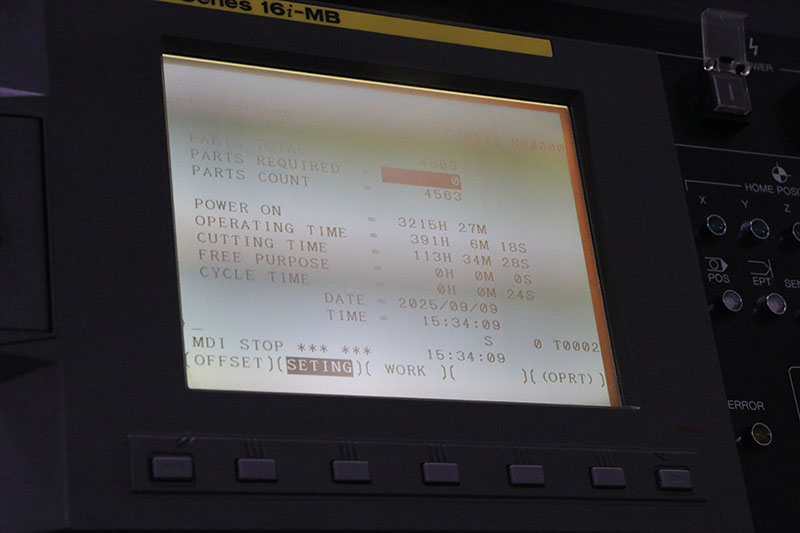

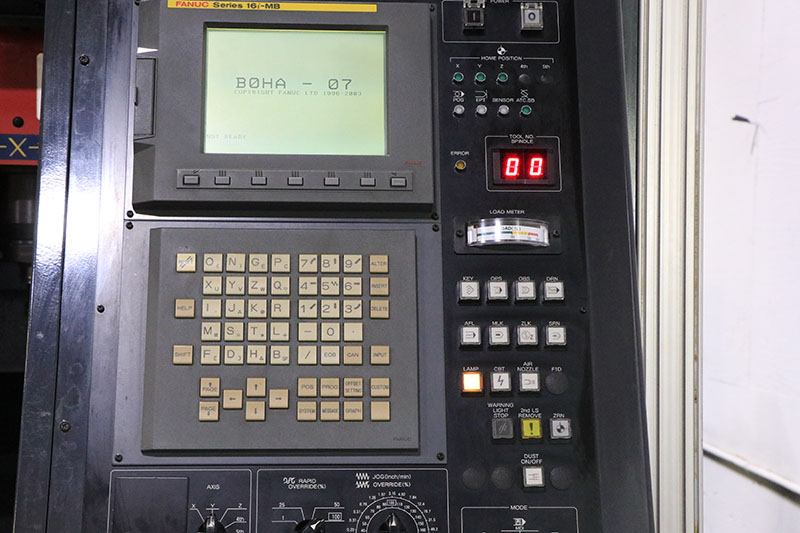

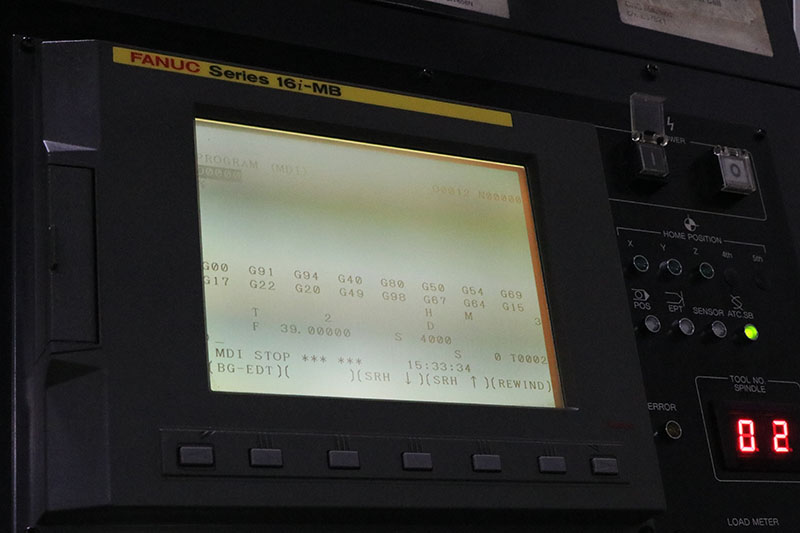

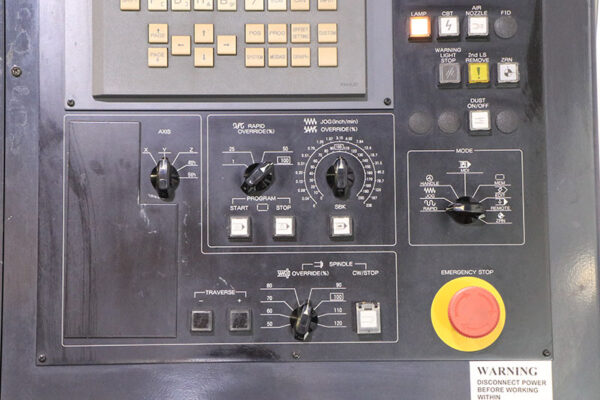

Fanuc Model 16i-M Control

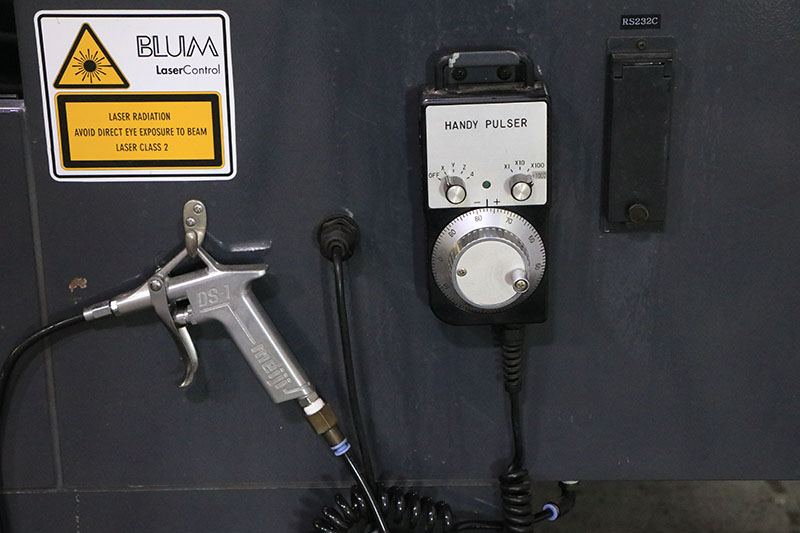

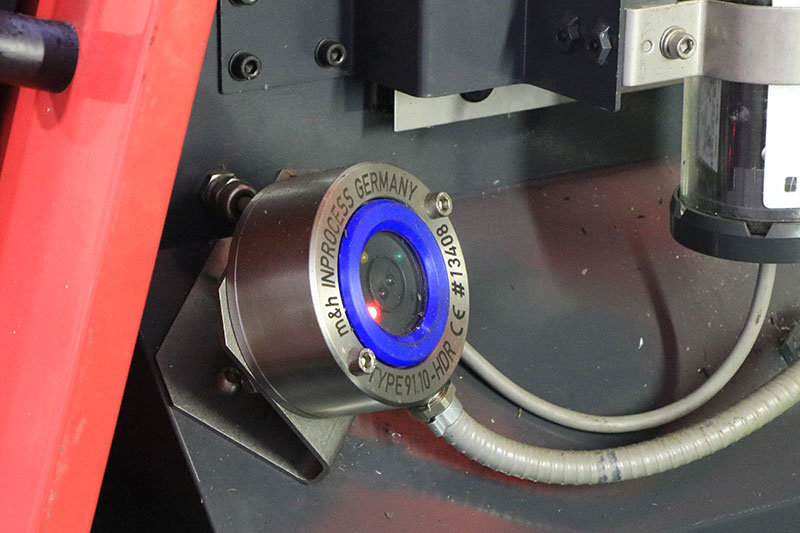

Blum Probe System

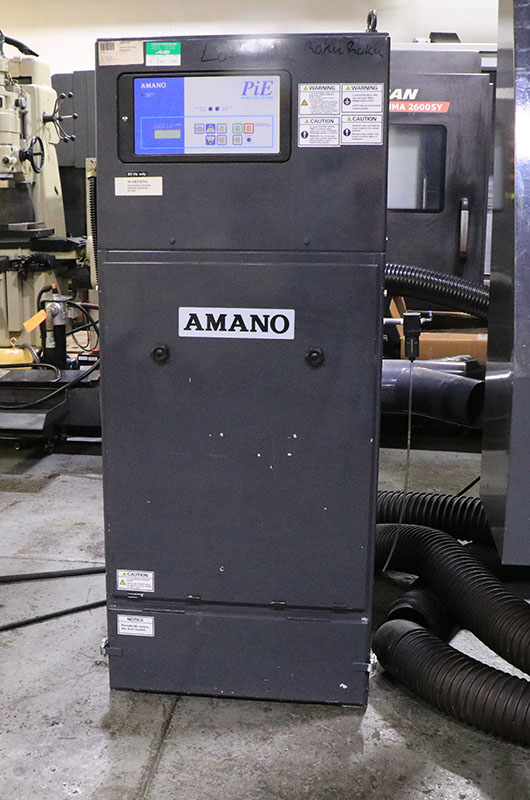

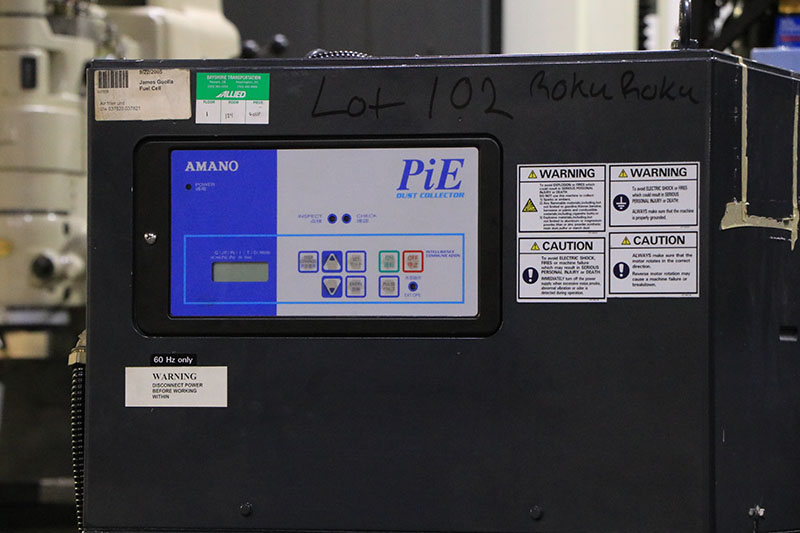

Amono Model PiE-30M Dust Collector
12 Tool Capacity Tool Changer
Mechanical Specifications:
Dimensions: 90″ x 93″ x 114″ H
Weight: approx. 8,000 lbs.
FOB Harrison, NJ 07029 Warehouse
THIS MACHINE CAME OUT OF A FORTUNE 500 TOOL ROOM & WAS USED TO CUT ALUMINUM & PLASTIC – INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
