Description

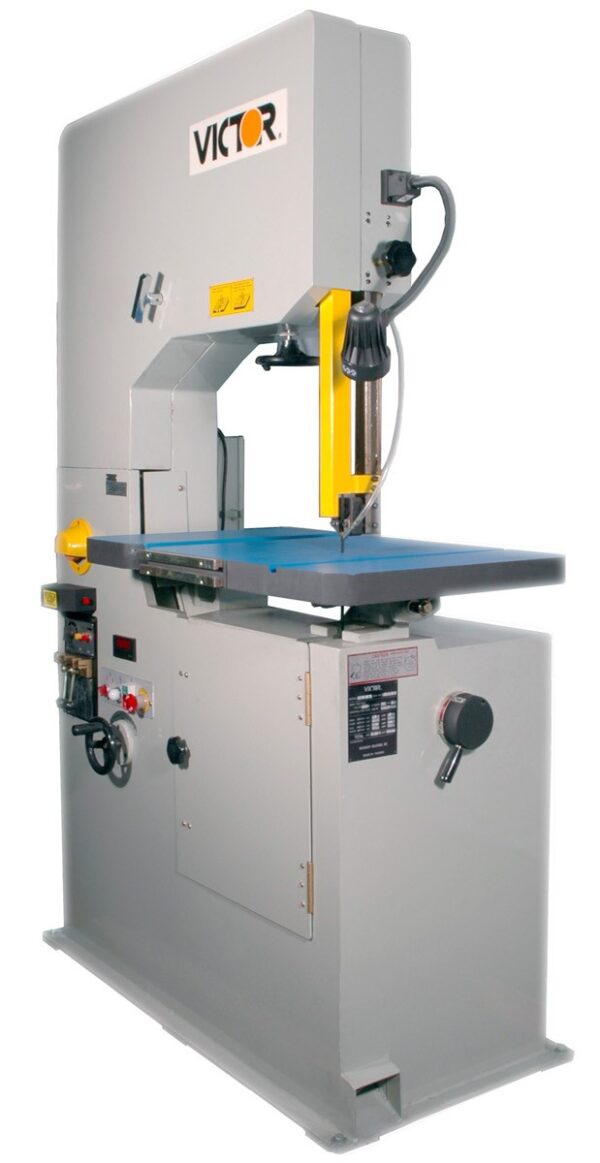

Victor 24″ Vertical Band Saw, DCM-6TS
Inventory # 2142
Model: DCM-6TS with T-Slot Table
Specifications:
Cutting Size:
Throat: 23 1/16″
Height Under Guide: 11.81″
Table Size: 23 1/2″ x 19 1/2″ with T-Slot, Auxiliary 8.6″ x 19 1/2″
Table Inclination: (4-Way) 15°
Height of Table: 40″
Saw Blade Speed (Variable): Low: 65 – 265 FPM, High: 400 – 1,600 FPM
Wheel Diameter: (2) 16 1/2″, (1) 12″
Length of Saw Blade: 156 5/16″
Width of Blade: Min. 1/8″ – 5/8″ Max.
Motor: 2 HP / 220v / 3ph (Optional 440v for additional charge)
Standard Features:
Machine frame is completely enclosed, steel construction. Sturdiness design guarantees highest efficiency and quiet operation

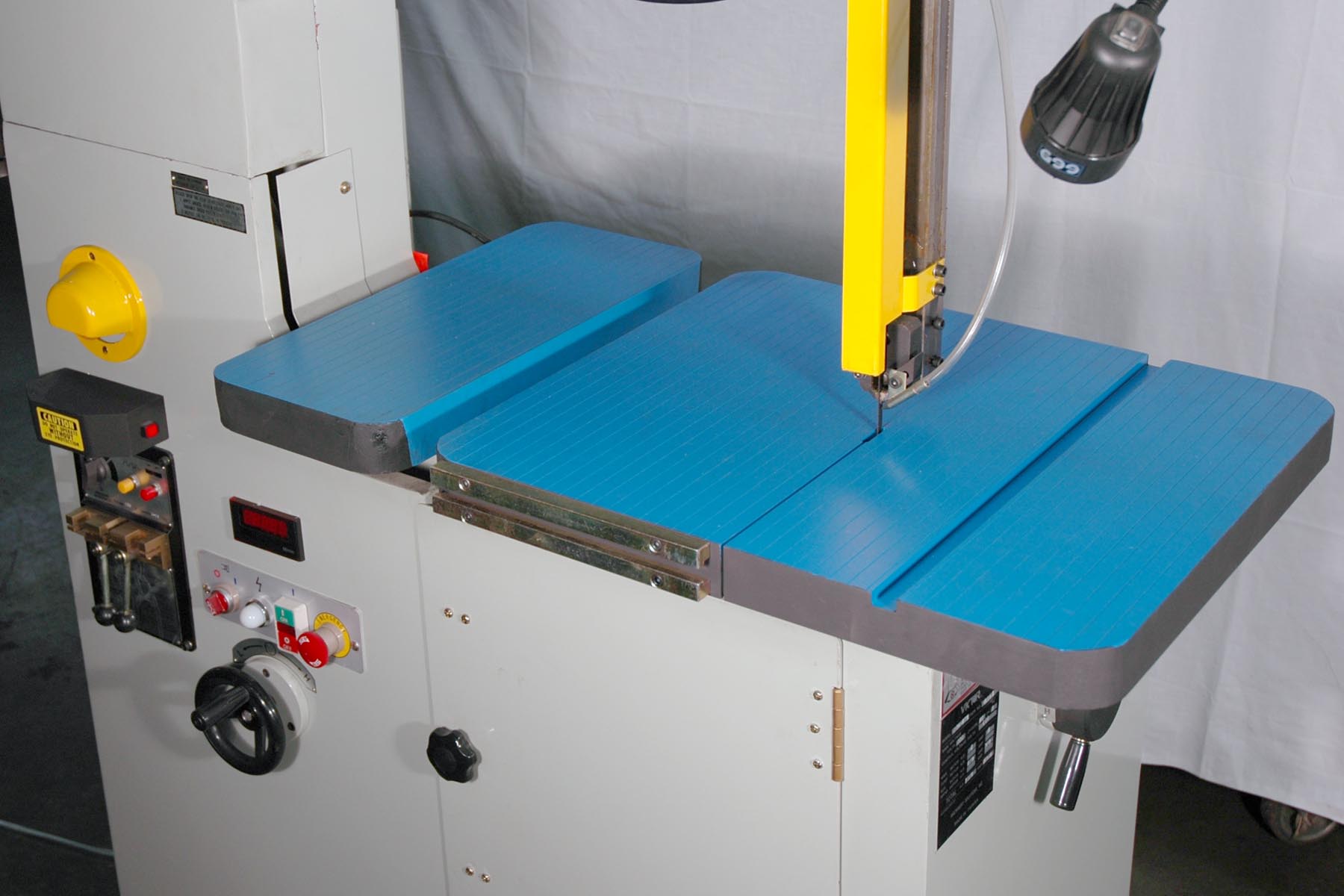

4-Way tilting heavy cast iron table with T-slot
2-Speed transmission is powered by enclosed gears running in a continuous bath of oil with an infinite vari-speed control unit
Convenient blade speed tachometer display

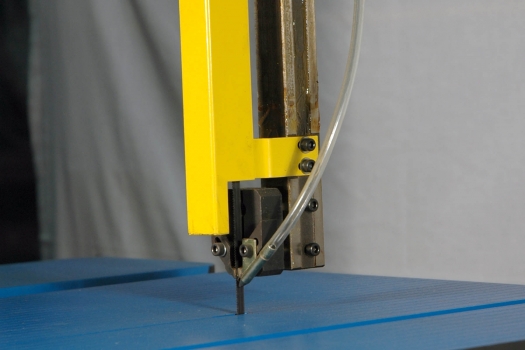

Easy, quick, adjustable blade guides firmly support the blade
Upper/lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing
Butt welder and annealing unit provide easy welding work
Built-in work light
Standard Accessories:
Saw Blade Cutter
Saw Blade Welder
Saw Blade Grinder
LED Blade Speed Display
Air Nozzle
Halogen Work Light
Standard Saw Blade – 1 Piece
Mechanical Specifications:
Dimensions: 56″ x 30″ x 85″ H
Weight: approx. 1,220 lbs.
Contact us for pricing and availability
FOB Factory
Optional Accessories:

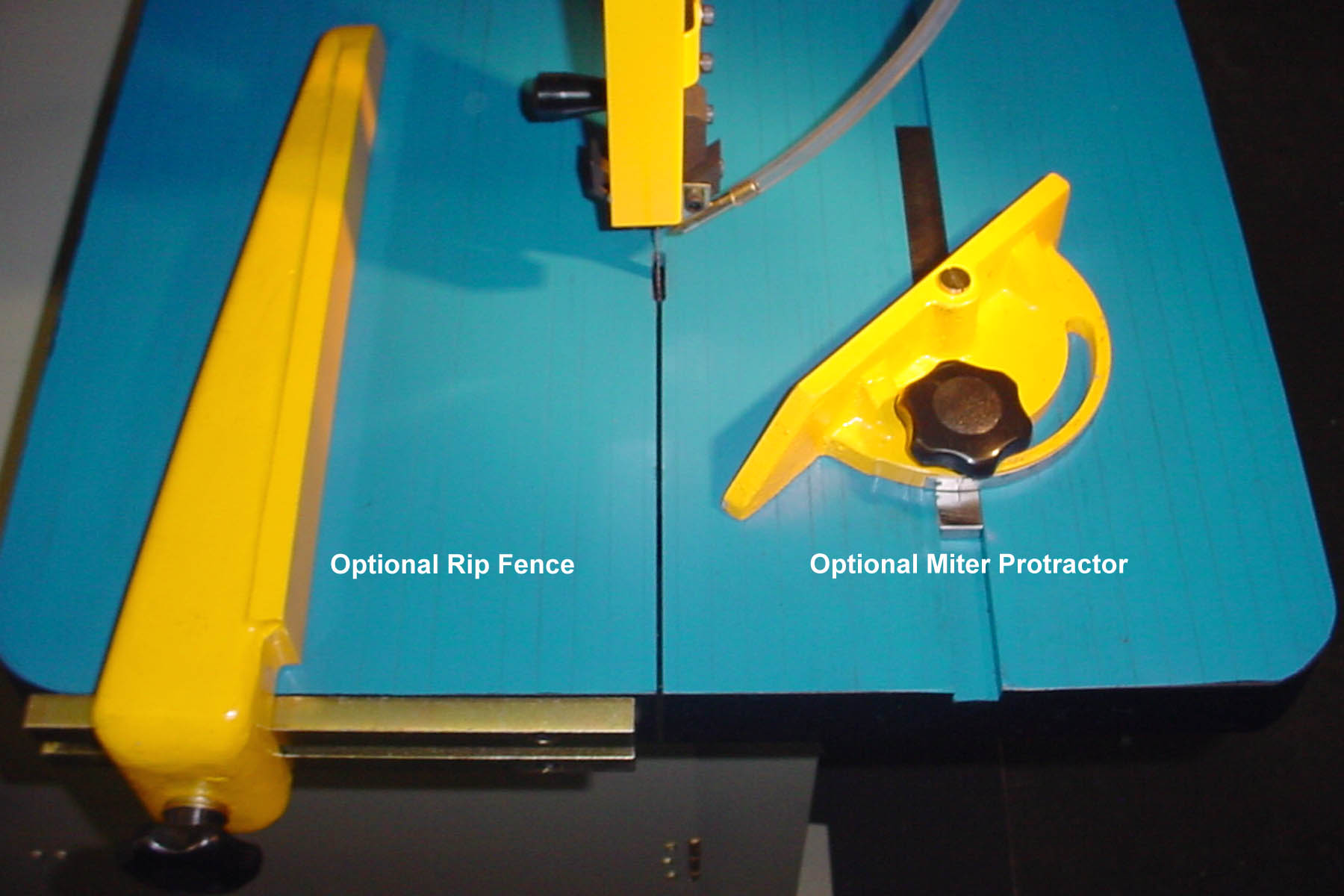

Rip Fence
Miter Protractor
Higher Blade Speed
440 Volt Conversion
