U.S. Industrial 8′ x 200 Ton CNC Hydraulic Press Brake, USHB200-8

Shipping: Add to Cart to Calculate

SKU: USHB200-8

Inventory #: 6523

Category:

Condition:

Type:

Brand:

Description

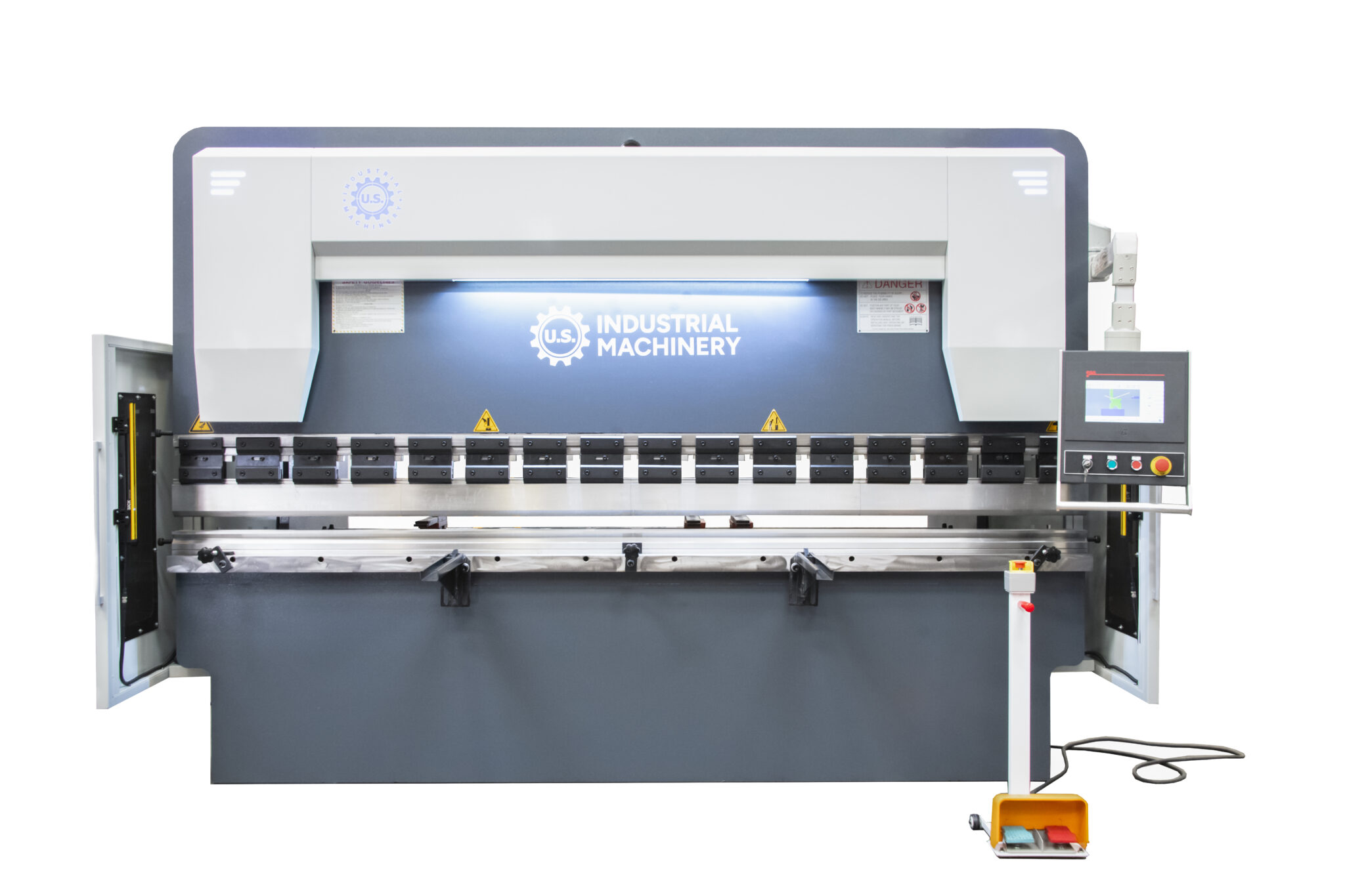

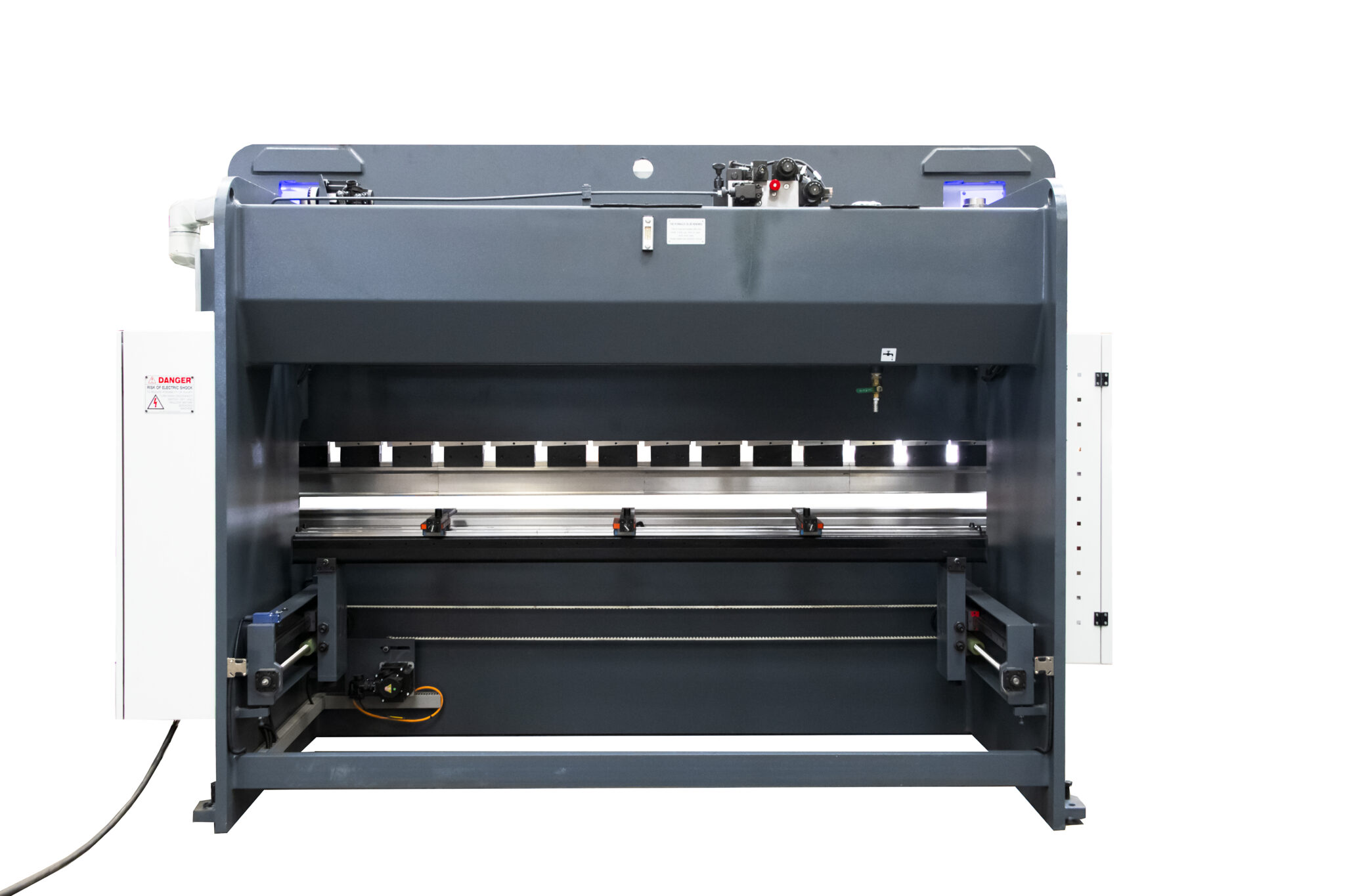

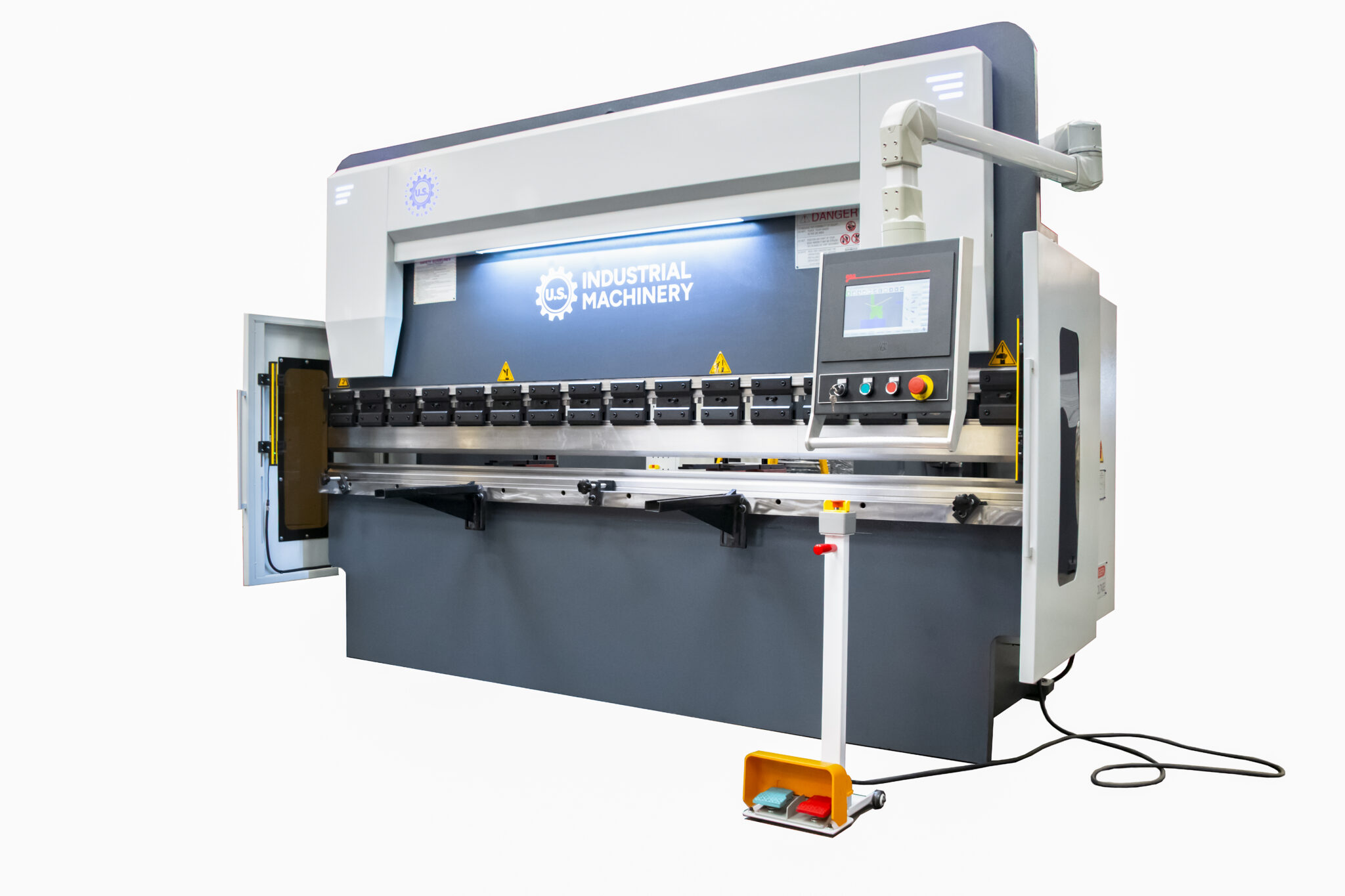

U.S. Industrial 8′ x 200 Ton CNC Hydraulic Press Brake, USHB200-8

Inventory # 6523

Model: USHB200-8

Specifications:

Working Pressure: 200 Tons

Length of Working Table: 98.4″

Distance Between Housings: 78.4″

Throat Depth: 12 1/2″

Stroke Adjustment of Ram: 2 3/4″

Ram Travel: 7″

Open Height: 17 1/2″

Rapid Ram Travel Speed: 2.4″/Sec.

Rapid Ram Retreat Speed: 2″/Sec.

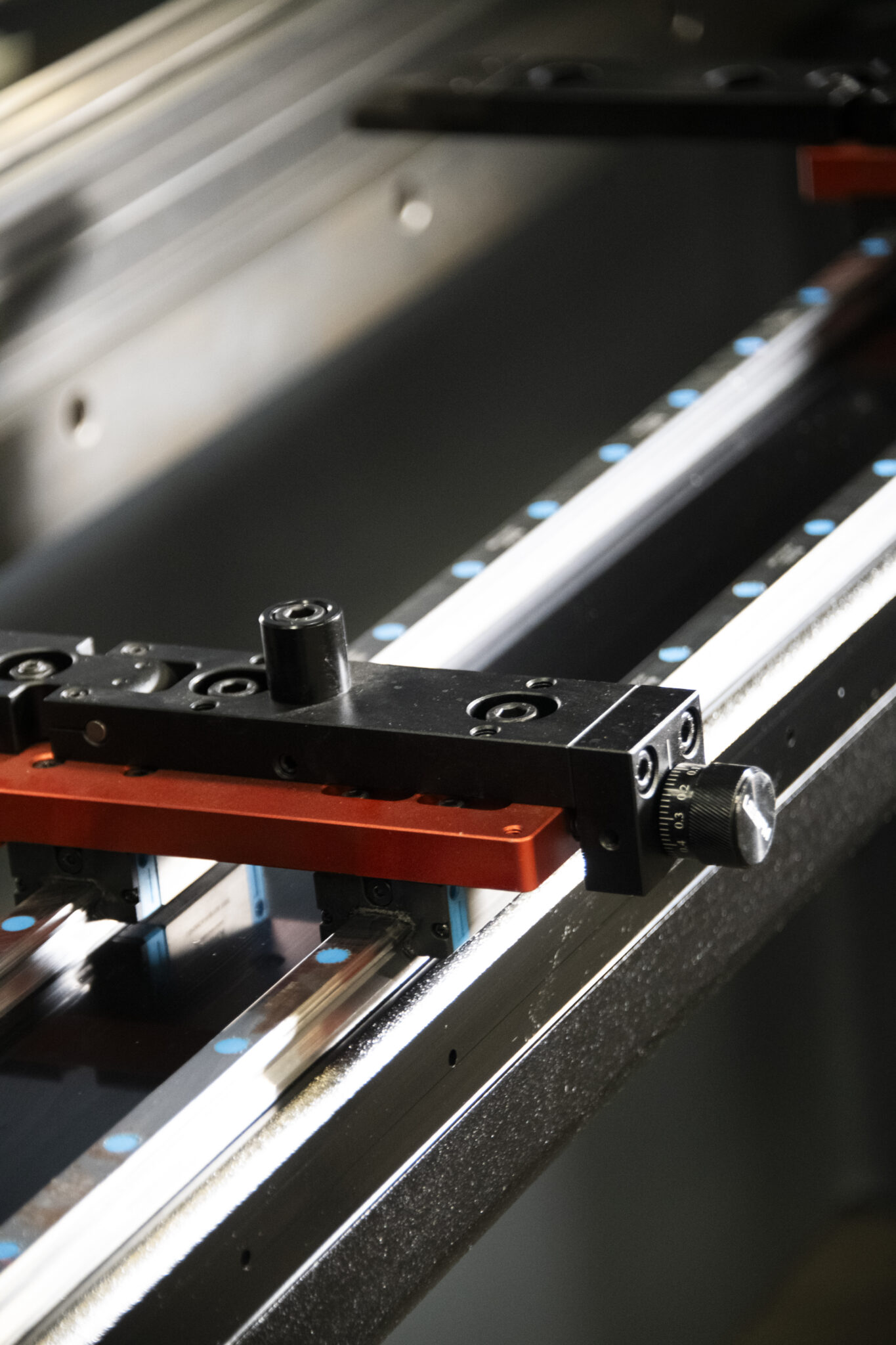

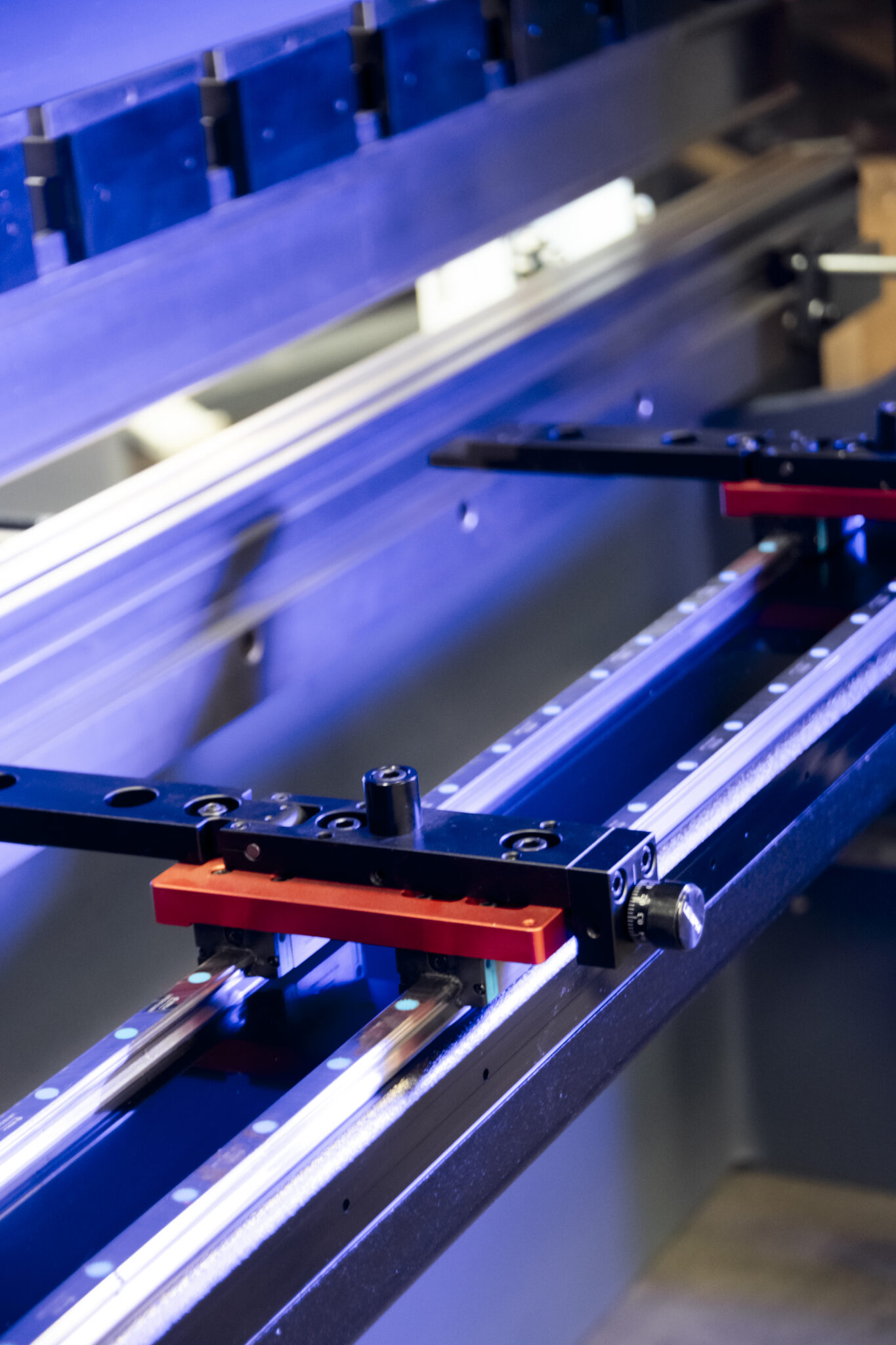

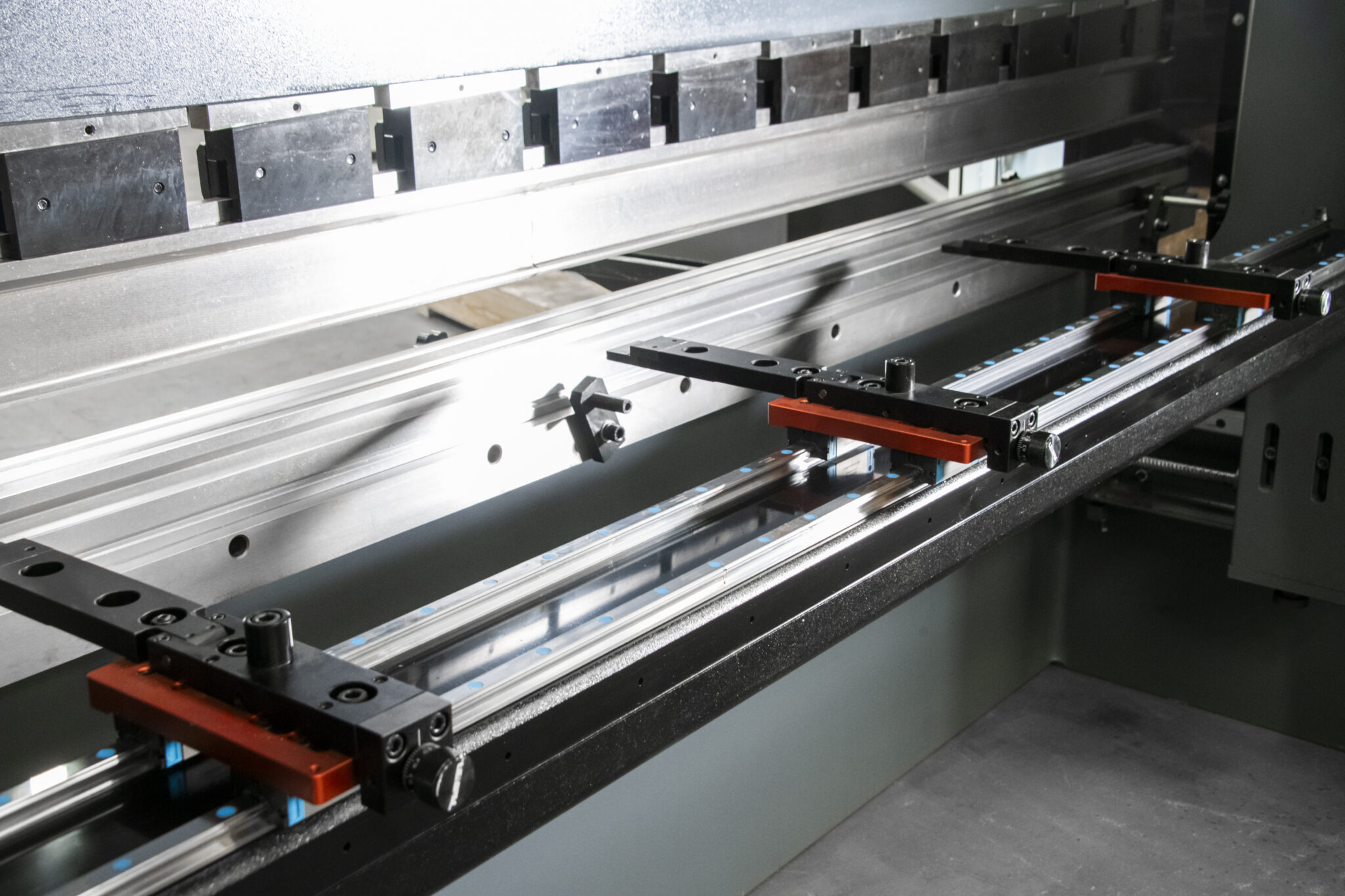

Back Gauge Travel: 24″

Pressing Speed: Dependent on Tool Load

Hydraulic Oil Capacity: 71 Gallons

Motor: 20 HP / 230v, 460v / 3ph

Standard Features:

Ram deflection adjustment

Mechanical ram depth control

Massive torsion bar for parallelism

Forged heavy duty cylinder and cylinder body

Three speed ram

Rapid approach, bending cycle, and rapid retreat

Bottom time delay

All steel construction

Inching, single cycle, and continuous operation

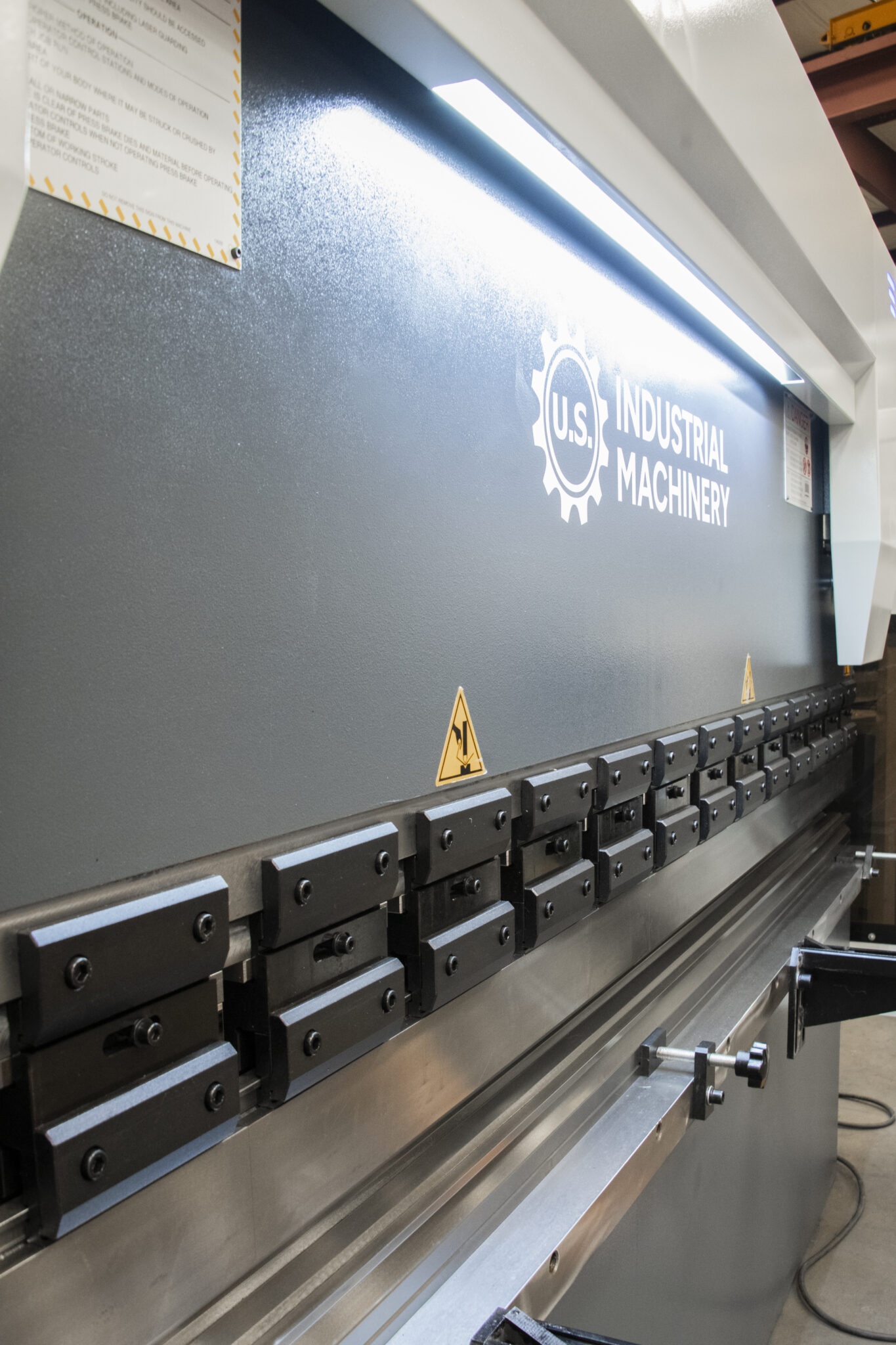

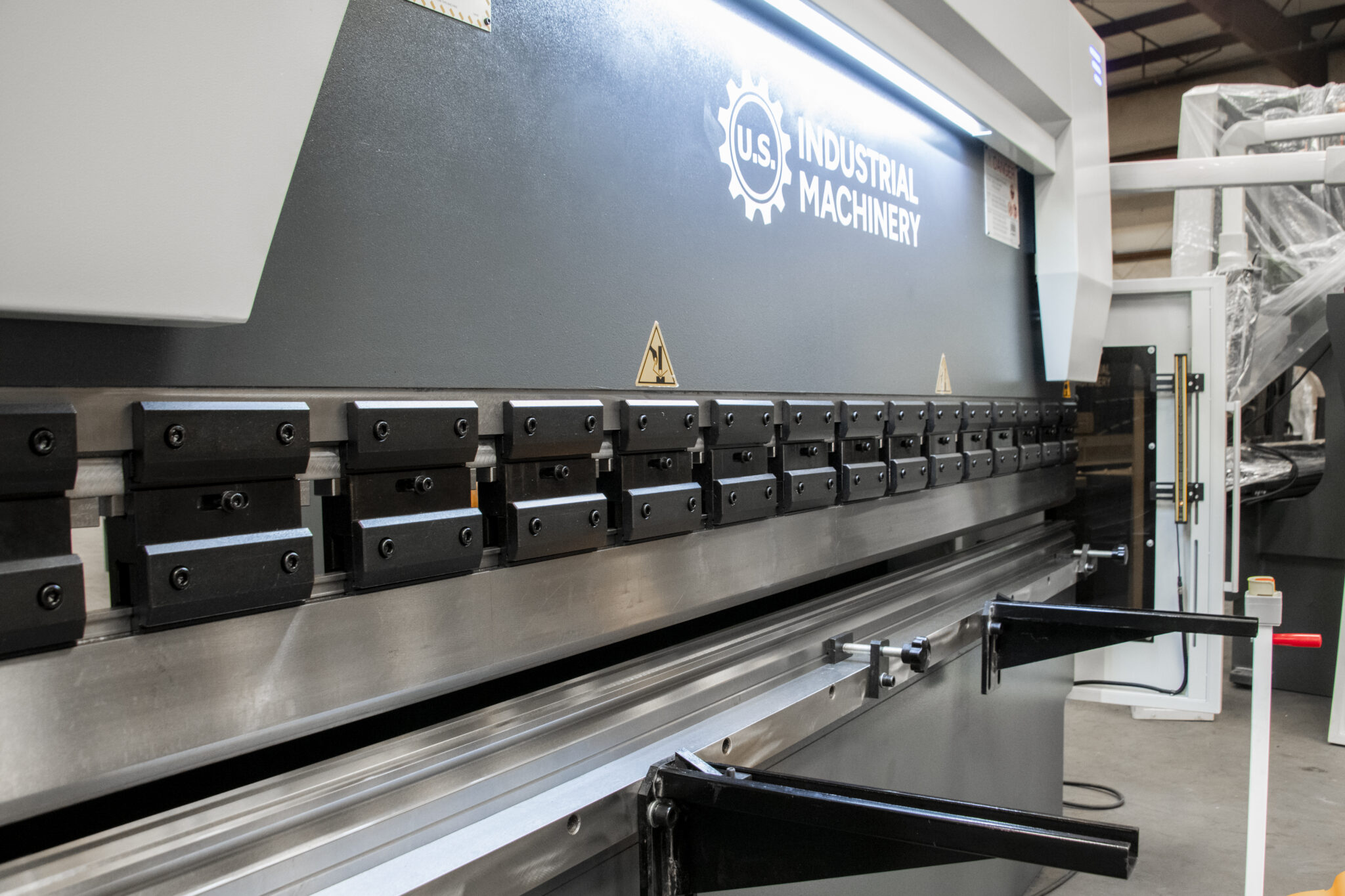

Ram takes standard American Tang tooling (1/2″ x 5/8″)

Space between ram tool clamps allows for deep box bending

Bed has slot for standard American Tang tooling

Bed also holds tooling with capture clamps

Free goose neck punch and multi-opening die for up to 90° forming in 10 gauge mild steel

Mechanical Specifications:

Dimensions: 120″ x 64″ x 101″ H

Weight: approx. 22,046 lbs.

Optional Equipment Included:

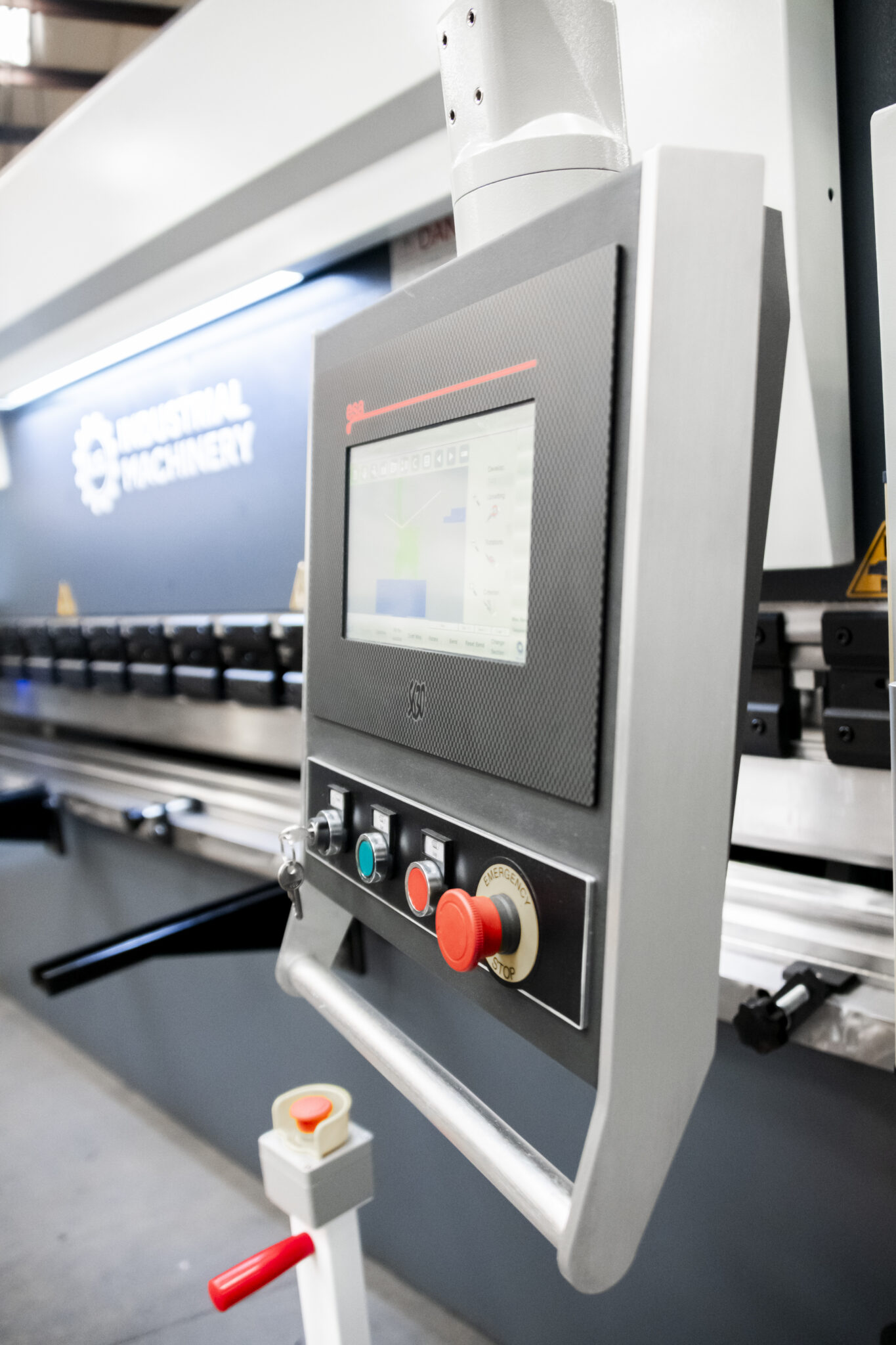

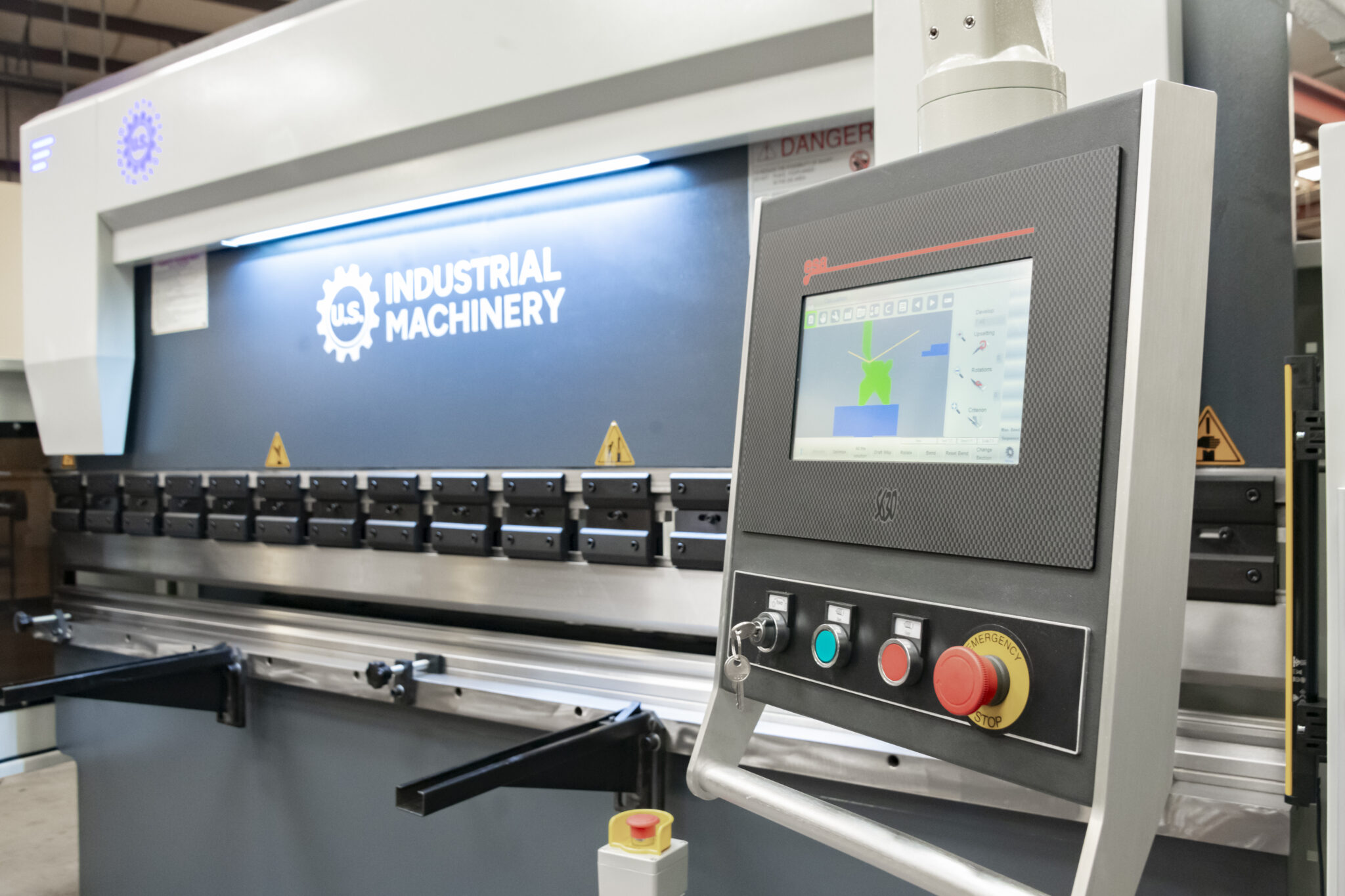

CNC 2-Axis Color Graphic Control: Controls both bend angle and back gauge position. Comes with 6″ LCD screen. Code and graphic programming included

CNC Controlled Mechanical Auto Crown

Sick Model 4000 Light Curtain System

Contact us for special pricing and availability – Special Order Only

FOB Factory

Please Note: Machines ship drained of all hydraulic fluid. End user is responsible for purchasing and filling the machine with Exxon Mobil NUTO-H46 hydraulic fluid, or equal

Additional information

Weight 22120 lbs
