Tennsmith 48" x 22 Gauge Box And Pan Brake, U48-22
Tennsmith 48" x 22 Gauge Box And Pan Brake, U48-22

Tennsmith 48″ x 22 Gauge Straight Bending Hand Brake, S48-22

$695.00


Shipping: Add to Cart to Calculate

Make Offer

SKU: S48-22

Inventory #: 4611

Categories: , ,

Condition:

Type:

Brand:

Product Description

Tennsmith 48″ x 22 Gauge Straight Bending Hand Brake, S48-22

Inventory # 4611

Model: S48-22

Made in USA

Description:

Tennsmith’s model S48-22 is a lighter capacity version of their 4′ bench brakes for economical alternatives in working 22 gauge and lighter materials

The bench-mounted hand brakes are rugged, dependable USA made tools that won’t break your budget. Model S48-22 is suitable for box and pan or straight bending in up to 22 gauge mild steel

The brake features a removable apron angle and apron inset permitting 1/4″ reverse bends in lighter materials. The upper leaf and nose bar have a wide range of adjustment for radius bending

Specifications:

Capacity, Mild Steel: 22 Gauge

Bending Length: 48 1/4″

Max. Lift of Beam: 7/8″

Front-to-Rear Beam Adjustment: 1/4″

Min. Reverse Bend: 5/16″

Min. Flange in Capacity Material: 3/8″

Mechanical Specifications:

Shipping Weight: approx. 220 lbs.

Contact us for special pricing and availability

FOB Factory

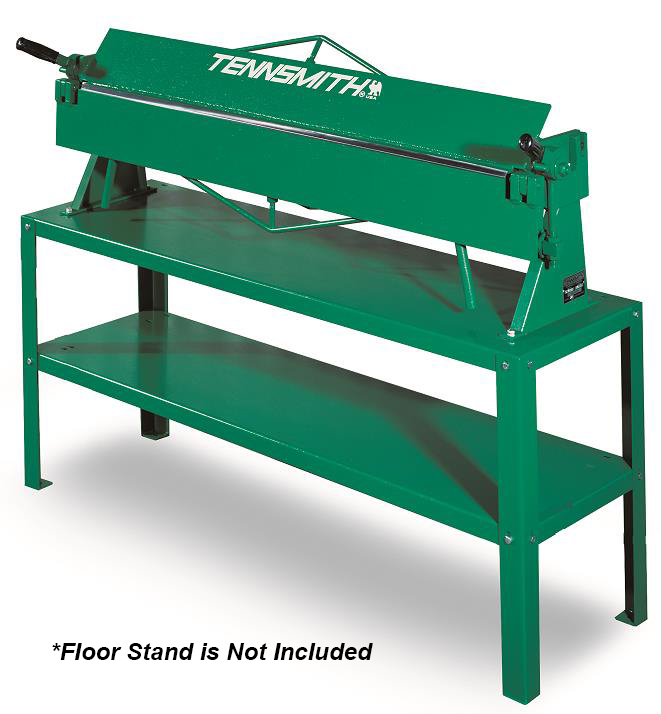

Please Note: Picture is Shown with Optional Floor Stand: + $245.00

Additional Information

Weight220 lbs
