Sharp 22″ x 160″ Precision Lathe, 22160B

Shipping: Add to Cart to Calculate

Make Offer

SKU: 22160B

Inventory #: 5824

Categories: ,

Condition:

Type:

Brand:

Product Description

Sharp 22″ x 160″ Precision Lathe

Inventory # 5824

Model: 22160B

Specifications:

Capacity:

Swing Over Bed: 22″

Swing Over Gap: 31″ , 12″

Swing Over Cross Slide: 13.2″

Center Height: 11″

Distance Between Centers: 160″

Bed Width: 15 3/4″

Bed Length: 183″

Headstock:

Spindle Nose Type: D1-11 Camlock

Spindle Bore: 4 1/2″

Spindle Speed Range: 10 – 1,000 RPM (12 Steps)

Spindle Bore Taper: MT-7

Center Taper: MT-5

Threads and Feeds:

Longitudinal Feeds: 0.002″ – 0.032″/rev. (18)

Cross Feeds: 0.001″ – 0.0094″/rev. (17)

Inch Threads: 2 – 56 TPI (44)

Metric and Module Threads: 0.5mm – 14mm (24)

DP Threads: 4 -56mm (36)

Leadscrew Pitch, Diameter: 4 TPI, 1 1/2″

Carriage:

Cross Slide Travel: 11.8″

Compound Rest Travel: 7.8″

Compound Width: 6″

Tailstock:

Quill Travel: 6 1/2″ (Graduated)

Quill Diameter: 3″

Quill Taper: M.T. # 5

General:

Main Motor: 15 HP

Specificy Voltage Required: 220v or 440v / 3ph

Standard Features:

D1-11 Camlock

4 1/2″ Spindle Bore

Direct Selection for Inch/Metric Threads

One-Piece Cast Meehanite Bed

Quick-Change Gearbox

12-Speed Gear Head (10 – 1,000 RPM)

Standard Equipment:

Rapid Traverse on Longitudinal

4-Jaw 16″ Chuck

Coolant system

4-Way Tool Post

Halogen Work Light

20″ Face Plate

4″ – 11 1/2″ Steady Rest

4-Way Carriage Stop

Splash Guard

16″ Chuck Guard

Tailstock

Follow Rest

Tool Kit includes Machine Manual, Half Nut Wrench, Allen Wrenches, Screwdrivers, Oil Can, Grease Gun, Rear Way Cover Bracket, Indicator Pin and Can of Paint

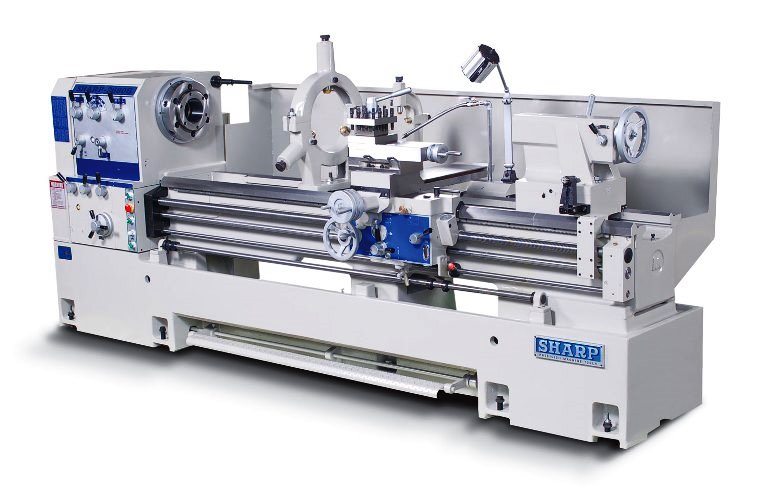

Note: Stock Photo May Show Machine with Optional Equipment

Mechanical Specifications:

Weight: approx. 10,626 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight10626 lbs
