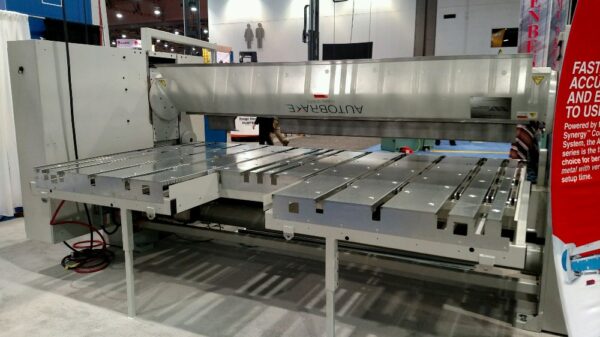

Roper Whitney 10′ x 9 Gauge CNC Autobrake with 61″ Backgauge, AB1009K

Shipping: Add to Cart to Calculate

SKU: AB1009K

Inventory #: 7169

Categories: ,

Condition:

Type:

Brand:

Description

Roper Whitney 10′ x 9 Gauge CNC Autobrake with 61″ Backgauge, AB1009K

Inventory # 7169

Model: AB1009K

Made in USA

Specifications:

Capacity:

Mild Steel: 9 Gauge

Stainless Steel: 11 Gauge

Max. Bending Length: 126″

Bending Bars: 0.787″, 0.390″, 0.250″

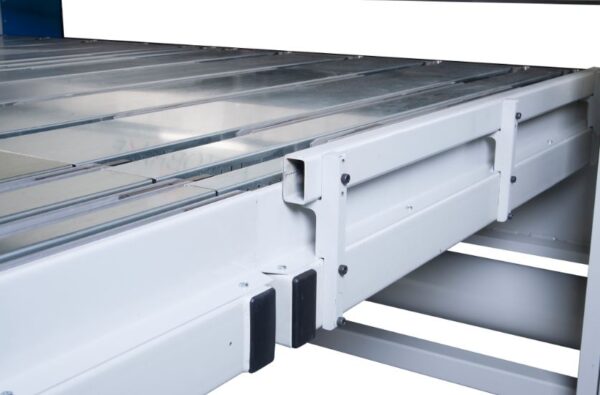

Backgauge Depth: 61″

Clamping Beam Opening: 7.9″ H

Clamping Beam Straight Bar Tooling: 30°

Folding Beam Adjustment: 3.14″

Crowning of the Folding Beam: 5 – point 0″ – .030″ adjustment

Working Height: 35″

Max. Box Depth: 6.3″

Backgauge Servo Motor: 3/4 HP

Clamping Beam Motor: 5.4 HP

Bending Beam Motor: Dual 5.4 HP

Standard Features:

Provides accuracy and repeatability when forming up to 10′ long 9 gauge or lighter materials

It is a high speed solution to make multiple bends while maintaining a high quality level in the end product

The Synergy control offers high speed versatility to an end user. It offers multiple methods of programming from simple line-by-line to draw-to-auto program

The Autobrake design is a plate and weldment steel construction, delivering superior performance and features in a simplified rigid design

Clamping and hemming capabilities come standard and are already included in the software. Clamping and hemming power is delivered to the clamp jaws by a series of spring washers to provide variable clamping pressures with a shock-absorbing end stop

The Autobrake comes standard with a rotating Kombi beam. This unique tooling assembly adds to the machine’s straight and box folding capabilities to produce more complex shapes in less time

Mechanical Specifications:

Dimensions: 180″ x 100″ x 83″ H

Weight: approx. 18,000 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 18100 lbs
