Republic Lagun 10″ x 27″ Universal Tool and Cutter Grinder, TCG-1016

Shipping: Add to Cart to Calculate

SKU: TCG-1016

Inventory #: 6651

Categories: ,

Condition:

Type:

Brand:

Description

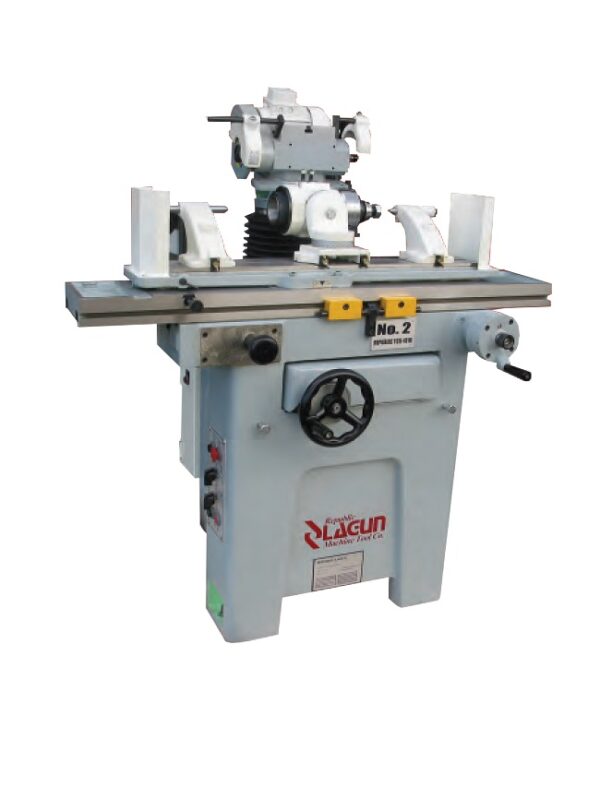

Republic Lagun 10″ x 27″ Universal Tool and Cutter Grinder, TCG-1016

Inventory # 6651

Model: TCG-1016

Specifications:

Swing Over Table: 10″

Distance Between Centers: 27 1/2″

Distance Between Tailstock and Workhead: 22 3/4″

Workhead Hold Tapers: ASA # 50 One End; # 5 M.T. or # 12 B & S Other End

Table Work Surface: 5.315″ x 37″

Table T-Slot: 0.565″

Longitudinal Table Travel: 15 3/4″

Cross Travel of Saddle: 10″

Table Swivel Graduations: +/- 60°

Table Graduation on End: +/- 10°

Vertical Movement of Wheel Head: 10″

Wheel Head Tilt: +/- 15°

Wheel Head Swivel: 360°

Wheel Spindle Centerline to Table Top: 2″ – 12″

Wheel Spindle Centerline to T-Slot Center: 6 1/2″ – 16 1/2″

Grinding Wheel Spindle Speed: 2,600, 3,700, 6,200 RPM

Grinding Wheel Spindle Drive: 2 HP / 220 V, 440 V / 3 PH

Standard Features:

Highest quality meehanite casting with outstanding rigidity and vibration dampening

Tilt wheelhead for easy clearance setting. Wheelhead is designed to tilt +/- 15°. It can also be swiveled 360° on the horizontal plane. These features make it very easy to set rake and relief angles and provide a wide angle of grinding. Grinding wheels can be mounted on both ends

Table slideways are hardened and precision ground. Table is mounted on anti-friction slideway ball bearings, controlled by table cable on take-up reels for backlash-free operation. Fingertip control of table movement is by coarse and fine feed table feeds knobs on right and left side and rear

Universal workhead can be swiveled at any angle horizontally and vertically. Both ends have a taper hole

Machine comes equipped with 53 items of standard equipment and 2-door steel storage cabinet with shelves

Complete 3/60/220/440 volt electrics in nema-type enclosure and operating controls convenient to operator

Compact footprint

Standard Equipment:

Workhead and wheel head

Two tailstocks, with centers (left hand and right hand tailstocks with centers)

Grinding wheel guards

Grinding wheel mounts and flanges

Assortment of grinding wheels

Table mounted wheel dresser

Set of leveling pads and service tools

Two door steel storage cabinet for tools, wheels, flanges, guards, etc.

Mechanical Specifications:

Floor Space: 61″ x 68 1/2″

Dimensions: 57 1/2″ x 57 1/2″ x 59 1/2″ H

Weight: approx. 2,560 lbs.

FOB Factory – Contact us for Pricing and Availability
