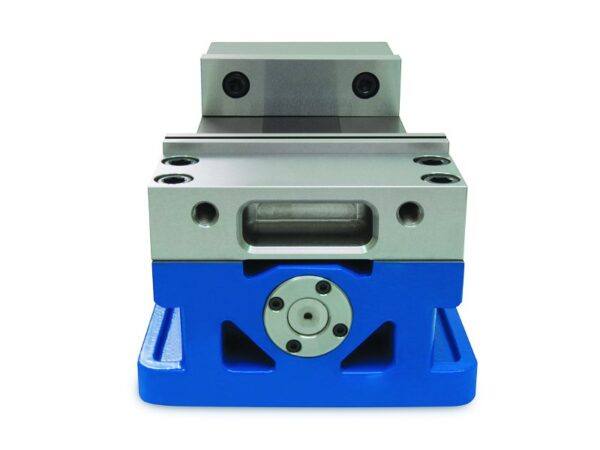

Kurt 6″ “Pull Type” Vise, 9″ Opening

Inventory # 7213

Model: HD690

Made in USA

Description:

The HD690 is the first 6″ Pull Type vise with a 9″ Opening

Specifications:

Jaw Width: 6”

Jaw Opening: 9″

Jaw Depth: 1.45″

Overall Dimensions: 18.32″ L x 7.33″ W x 4.86″ H

Overall Weight: 75 lbs.

Features:

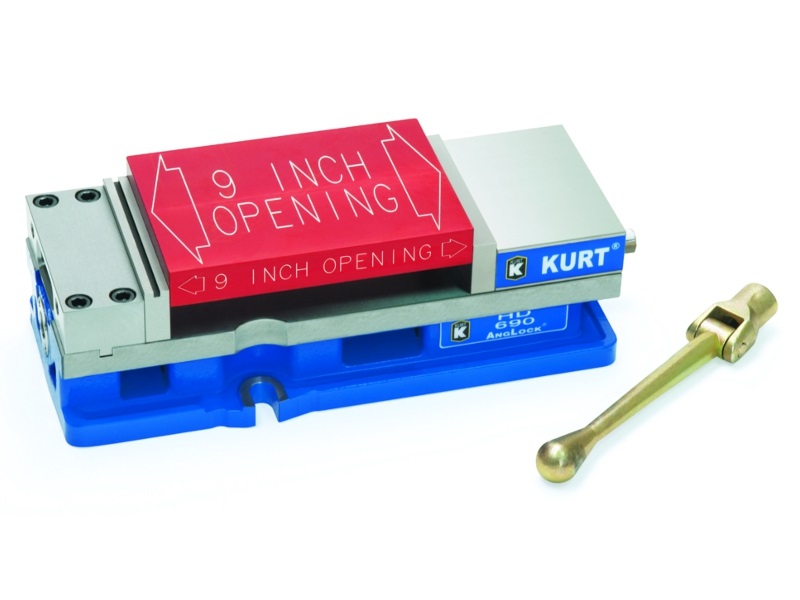

A full 9″ opening between jaws with the standard jaw plates

Wider, more stable stationary jaw makes for less stationary jaw deflection

Stationary has 4 bolts from the top which reduces stress in the body so the vise stays flatter

No need to remove the vise body from the table for cleaning

Narrower body width allows for more vises in the same work envelope

Taller body equals less deflection under clamping loads

Bolts and locates directly on standard grid plates: 40mm, 50mm and 2″

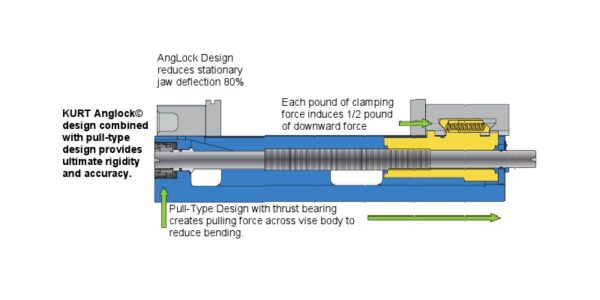

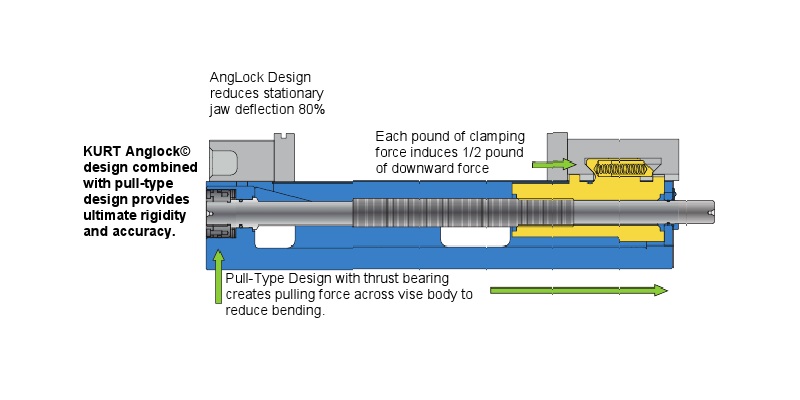

“Pull-type” body design reduces stress in the body resulting in more accurate clamping

HD platform quick change movable jaws makes holding the odd shaped part easier

Groove Lock® workstop and jaw included

Uses sine keys for alignment

Optional: Swivel base available, part #D50-4-SA – Contact us for pricing

Body height matched ±0.0005″

FOB Factory – Normal Lead-Time is 2 – 4 Weeks from Date of Order. Please Contact us to Verify Availability
