Description

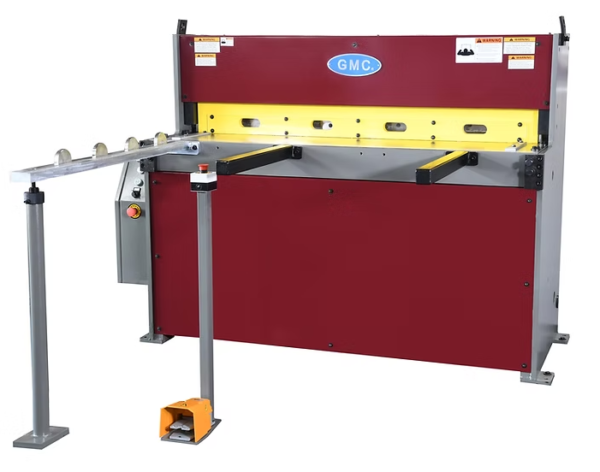

GMC 4′ x 10 Gauge Hydraulic Shear, HS-0410MD
Inventory # 5155
Model: HS-0410MD
Specifications:
Cutting Capacity:
Mild Steel: 4′ x 10 Gauge
Stainless Steel: 4′ x 14 Gauge
Minimum Capacity: 24 Gauge
Blade Length: 52″
Strokes per Minute: 16-20
Throat Depth: 16″
Work Table Height: 30 1/2″
Front Support Arm: 24″
Back Gauge: 26″
Blade Rake Angle: 1.5°
Oil Tank Capacity: 10 Gallons
Main Motor: 5.5 HP / 220v, 440v / 3ph (Pre-Wired 220v)
Standard Features:
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet hydraulic system
Adjustable stroke from 16-20 spm
High-grade carbon/chrome alloy steel blades, hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Jog, single, continuous auto-operation modes
One-year warranty for parts
Standard Equipment:

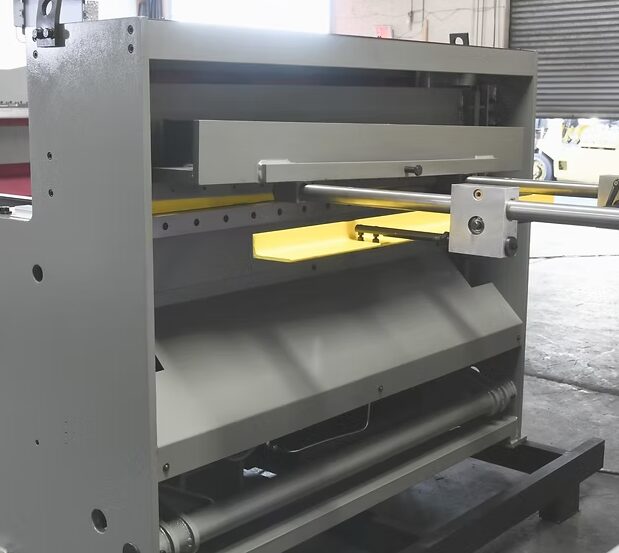

26″ Manual Back Gauge with Inch/Metric Dual Scale and One-Side Operated Hand Wheel

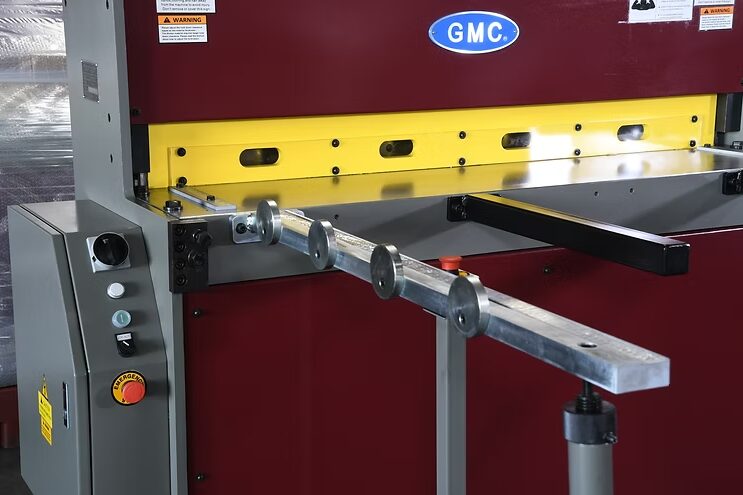

60″ Long Squaring Arm with Inch/Metric Scale
Two 24″ Front Support Arms
Two 14″ Side Gauges with Inlaid Inch/Metric Dual Scale
Spring Independent Hold-Downs
Full-Length Finger Guard
Removable Safety Foot Pedal Control
One Set of Blades
Mechanical Specifications:
Dimensions: 68″ x 35″ x 52″ H
Weight: approx. 3,050 lbs.
FOB Factory – Contact us for availability
