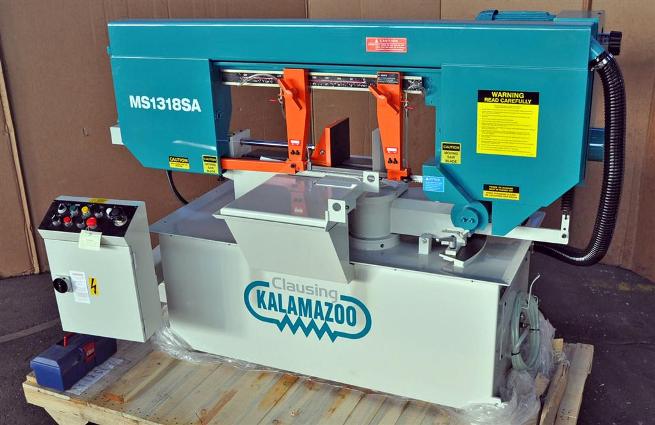

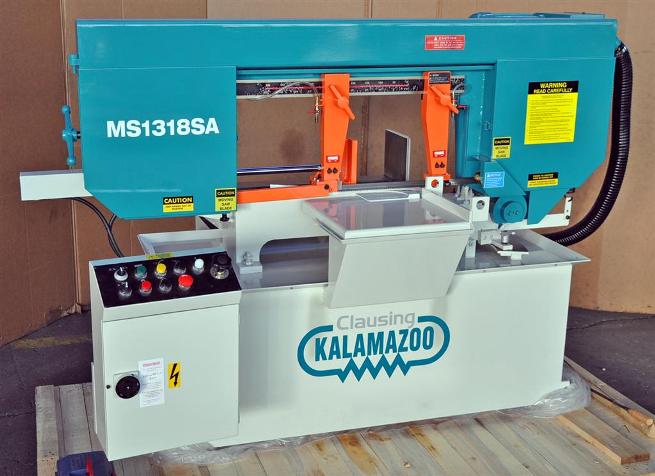

Clausing Kalamazoo 13" Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA
Clausing Kalamazoo 13" Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SAClausing Kalamazoo 13" Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SAClausing Kalamazoo 13" Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SAClausing Kalamazoo 13" Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA

Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA

$11,935.00 $11,195.00

Shipping: Add to Cart to Calculate

Make Offer

SKU: MS1318SA

Inventory #: 5160

Categories: ,

Condition:

Type:

Brand:

Product Description

Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA

Inventory # 5160

Model: MS1318SA

Specifications:

Cutting Capacity:

Round:

@ 90°: 13″

@ 45°: 11 1/2″

@ 60°: 8.7″

Square:

@ 90°: 10.6″

@ 45°: 10 1/2″

@ 60°: 8.7″

Rectangular:

@ 90°: 18 1/2″ x 10.6″

@ 45°: 10 1/2″ x 10 1/2″

@ 60°: 8.7″ x 8.7″

Blade Speeds: 102 – 377 FPM (Variable)

Blade Size: 1″ x .035″ x 13′ 7″

Bed Height: 33″

Standard Features:

Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at the end of the cut

Full stroke machine vise for tight clamping of any material from operator’s panel

Operator’s panel pivots allowing operator to control the saw from the rear of the machine

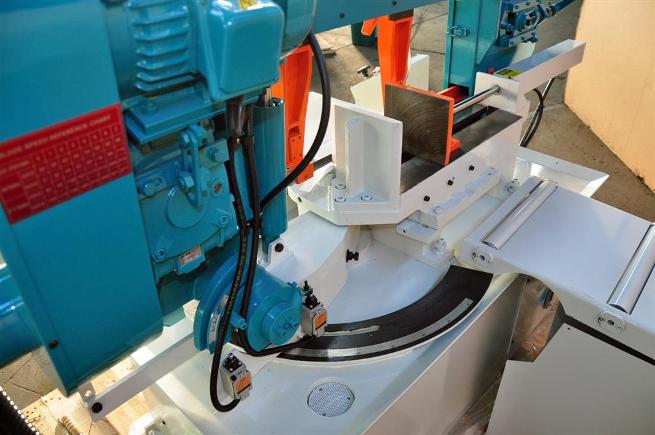

Swivel saw head allows the operator to accurately pivot head for angle cuts from 0°, for a 90° to 60° cut

Carbide blade guides provide excellent stability for the saw blade

Variable blade speed

Power chip brush removes chips from the blade extending blade life

Integrated coolant system

Cast iron moveable guide arms provide rigidity and stability for an accurate cut

Standard Equipment:

In-Feed Roller Table, 24″

Discharge Table, 17″

Adjustable work stop

Power chip brush removes chips from the blade extending blade life

Integrated coolant system

Flushing hose

Tool box with tools

Operator’s manual

Two year limited warranty

Mechanical Specifications:

Dimensions: 75″ x 34″ x 55 1/2″ H

Shipping Weight: approx. 1,850 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight2000 lbs
