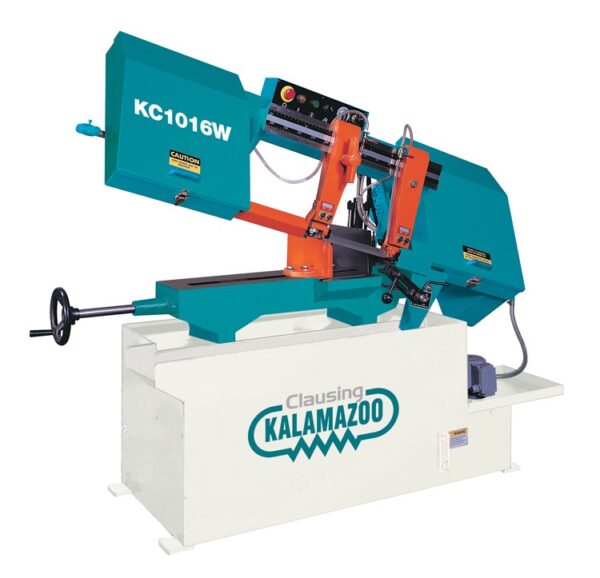

Clausing Kalamazoo 10″ Wet Cutting Horizontal Band Saw, KC1016W

Shipping: Add to Cart to Calculate

SKU: KC1016W

Inventory #: 4974

Categories: ,

Condition:

Type:

Brand:

Description

Clausing Kalamazoo 10″ Wet Cutting Horizontal Band Saw, KC1016W

Inventory # 4974

Model: KC1016W

Specifications:

Cutting Capacity:

@ 90°:

Round: 10″

Rectangular: 9″ x 14 1/2″

@ 45°:

Round: 9″

Rectangular: 9″ x 9″

Band Wheel Diameter: 15″ Flanged, Cast Iron

Blade: 1″ x .035″ x 11′

Bed Height: 25″

Blade Speeds: 75, 121, 190, 305 FPM (4 Speed)

Motor: 2 HP / 230v, 460v / 3ph OR 1.5 HP / 110v, 220v / 1ph (Please Specify Desired Motor at Time of Order)

Standard Features:

1.5 HP – 2 HP drive motors with magnetic starter and overload protection

Magnetic starter with overload protection

4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground

Totally enclosed transmission

Heavy-duty hydraulic cylinder with precision ground hinge support

Pan shaped base with built-in coolant and hydraulic system

Cast iron bed

Cast iron quick acting 0° – 45° vise with manual leadscrew clamping system

Two additional bearing to support blade from the top

Recirculating coolant system with applicaton through both guides

Blade brush

Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material

Adjustable stock stop

Simplified control switches mounted on saw head

Anti-slip hand wheel

Easy blade change with front access at waist level

1″ wide blade

Tools

Operation and parts manual

Two year limited warranty

Mechanical Specifications:

Shipping Dimensions: 67″ x 31″ x 48″ H

Shipping Weight: approx. 950 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1050 lbs
