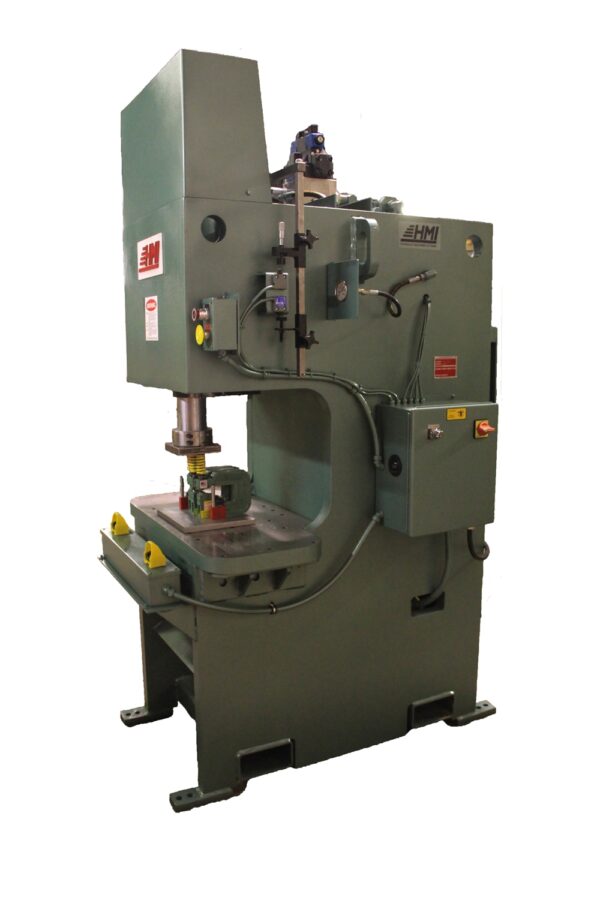

Betenbender HMI 165 Ton Hydraulic C-Frame Press

Shipping: Add to Cart to Calculate

SKU: 16514

Inventory #: 6915

Categories: , ,





Betenbender HMI 165 Ton Hydraulic C-Frame Press

Inventory # 6915

Model: 16514

Made in USA


Throat Depth: 14″

Throat Height: 18″

Press Platen Size: 36″ x 14 1/2″

Rated Capacity: 165 Tons

Max. Diameter Through Max. Thickness: 15/16″ – 9/16″

Max. Stroke Length: 8″

Cylinder Bore Diameter: 13″

Table Height: 37″

Die Block Height: 43.1″

Ram Speed 1/2″ Down, 1/2″ Up: 20″

Ram Diameter: 3″

Motor: 20 HP / 220v / 3ph

Standard Features:

Large heavy duty design of the press frame to limit the deflection

Press bed bolted on, not welded, to prevent distortion. Can be easily removed for regrinding or adding more tapped holes

Large rectangular tubes used at base of machine to give safe, instant portability. Oil reservoir is located vertically between the side plates to keep the machines foot print as small as possible

Hydraulic system is equipped with a wire mesh strainer on the suction side and a 10 micron filter on the return side to keep the system clean

Pump, motor, valve and reservoir are all easily accessible for maintenance

Large press bed to accommodate a variety of tooling other than just punching

Punch package comes standard with unit

Reservoir filled with oil

Remote foot control, cycle can be stopped and reversed at any point

Lock out – Tag out accommodations

Operators manual

Mechanical Specifications:

Dimensions: 40″ x 37″ x 73″ H

Weight: approx. 2,150 lbs.

Contact us for special pricing

FOB Factory – Approximate 8 – 12 Week Lead-Time

Additional information

Weight 2150 lbs
