Betenbender 10′ x 3/16″ Hydraulic Shear

Shipping: Add to Cart to Calculate

SKU: 10' x 3/16"

Inventory #: 6551

Categories: ,

Condition:

Type:

Brand:

Description

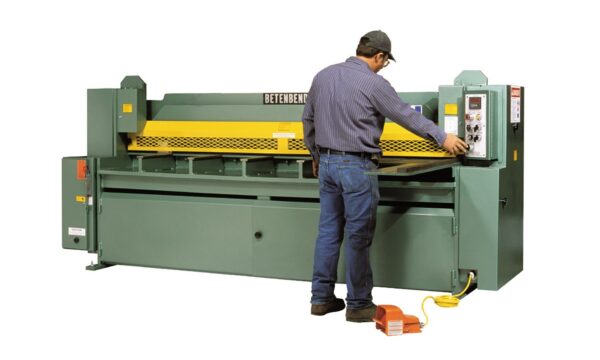

Betenbender 10′ x 3/16″ Hydraulic Shear

Inventory # 6551

Model: 10′ x 3/16″

Made in USA

Description:

It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven hydraulic shears are designed to do exactly that

Betenbender designs simplicity an safety into its shears with an advanced hydraulic system and flexible operation. They’re easy to operate, easy to maintain and able to withstand the rigors of today’s production demands

Specifications:

Capacity: 3/16″ Mild Steel

Knife Length: 124″

Squaring Arm Length: 30″

Rake Angle per Rated Capacity: 1/4″

Strokes per Minute: 30

Number of Hold Down Pins: 19

Hydraulic Pressure: 2,500 PSI

Motor: 10 HP / 208 – 230v, 460v / 3ph

Standard Features:

Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110 volt foot switch lets you interrupt the cutting stroke at any point in its cycle

Easy Material Handling: A sturdy back gauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4 foot squaring arm with a recessed scale makes for fast, easy measurement

Modified High Carbon, High Chrome Reversible Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials

Electrical System: Meets NFPA 79 and ANSI B11.4 requirements

Standard Equipment:

Single piece top and bottom, HCHC shock resistant knives with four cutting edges

4′ squaring arm with inlaid scale

36″ power back gauge with LED read out, inch/metric

All hydraulic fluids included

All steel construction

American made hoses and fittings

American made motor and valves

Disconnect switch

Hour meter

Hydraulic self-compensating hold down bar assembly

Light beam gauge (shadow line)

Linemaster foot switch

Manual rapid blade gap adjustment (3/8″, 1/2″, 5/8″, 3/4″)

Manual swing up back gauge

NEMA electronics

Power adjust variable rake

Safety switch for front guard

Mechanical Specifications:

Floor Space: 145″ x 55″

Weight: approx. 9,100 lbs.

Contact us for special pricing

FOB Factory – Approximate 6 – 8 Week Lead-Time

Additional information

Weight 9100 lbs
