Baileigh 16 Gauge Power Hammer, MH-19
Baileigh 16 Gauge Power Hammer, MH-19

Baileigh 16 Gauge Power Hammer, MH-19

$23,495.00 $21,995.00

Shipping: FREE SHIPPING

Make Offer

SKU: MH-19

Inventory #: 6431

Categories: , ,

Condition:

Type:

Brand:

Product Description

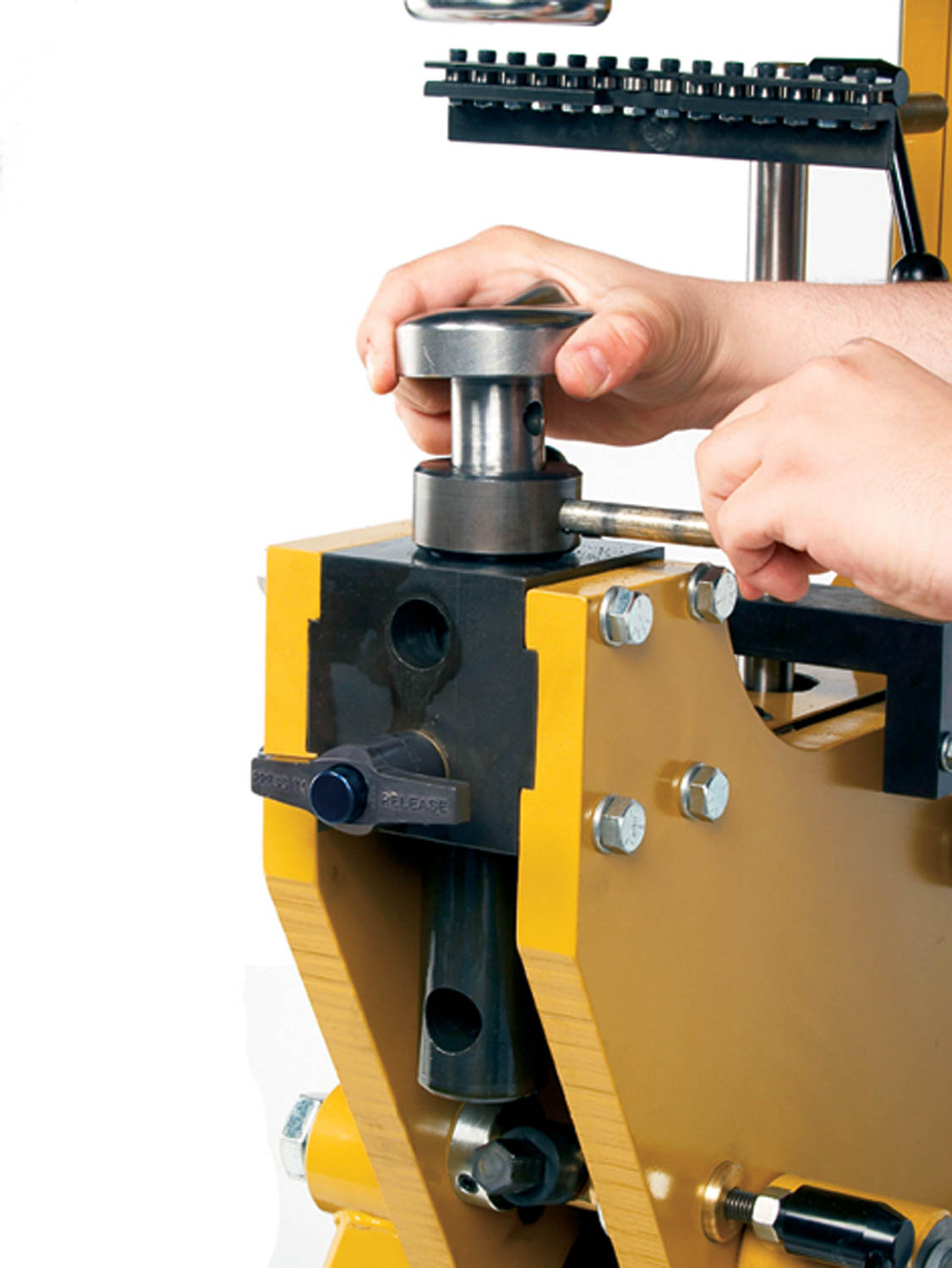

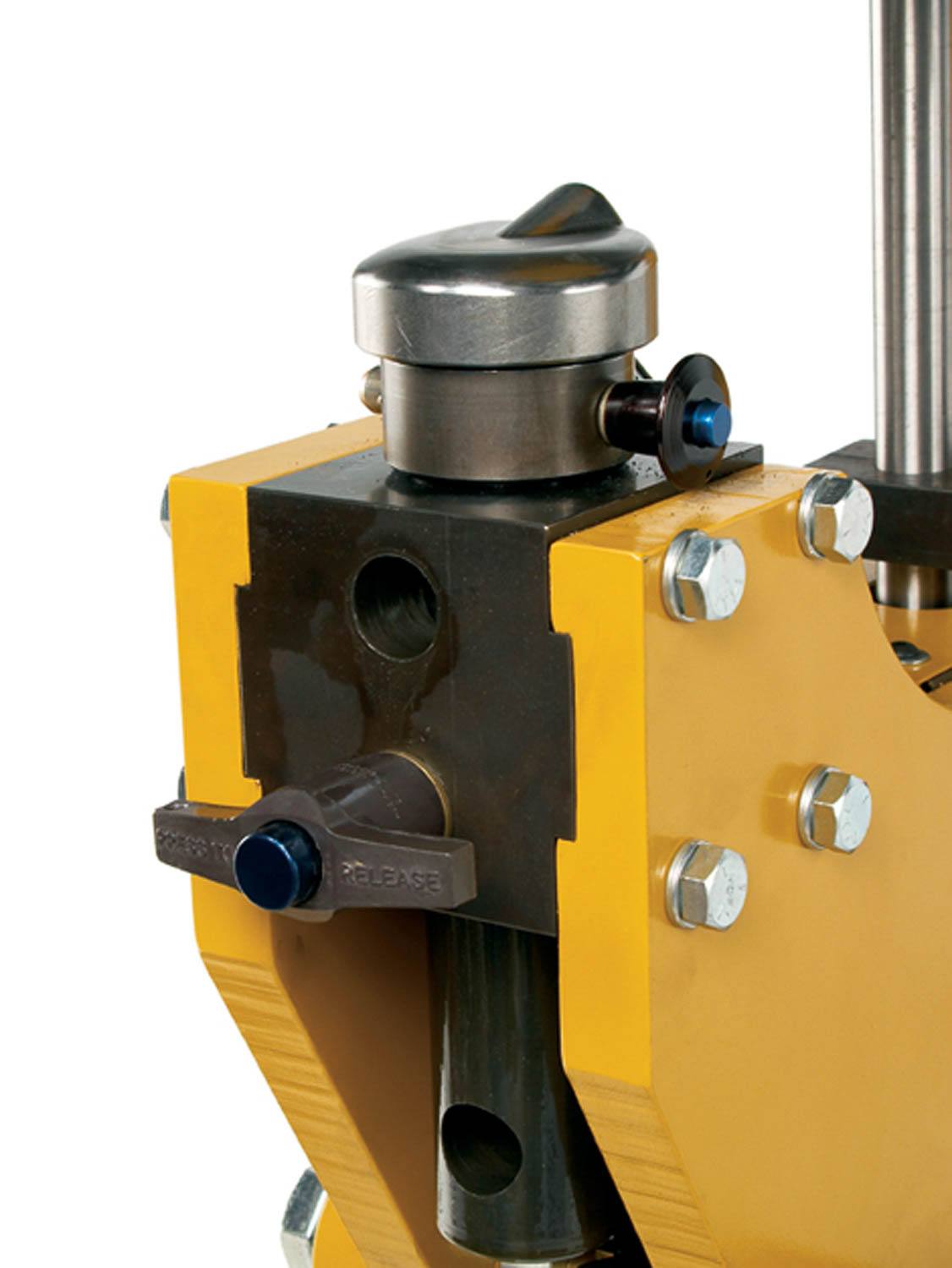

Baileigh 16 Gauge Power Hammer, MH-19

Inventory # 6431

Model: MH-19

Made in USA

Description:

The MH-19 is truly a do-it-all machine. The MH in MH-19 stands for multi-hammer because it does multiple things, but unlike other combination machines that you see, the MH-19 does them all well. There truly is nothing that this machine can’t do

When operating in the rigid mode, there is no “give” between the die heads. Used for short stroke shaping, flanging. Tooling designs and profiles are endless, but some of the options are mechanical shrinking, stretching dies, flanging dies, and louvers

The spring setup with “throw the die” causes a dead blow hammering effect. When in this mode the total amount of pressure applied when the dies hit the metal is increased exponentially. This mode would be used for aggressive shrinking and planishing, many different tooling profiles can be used

Specifications:

Capacities:

Mild Steel: 16 Gauge

Aluminum: 12 Gauge

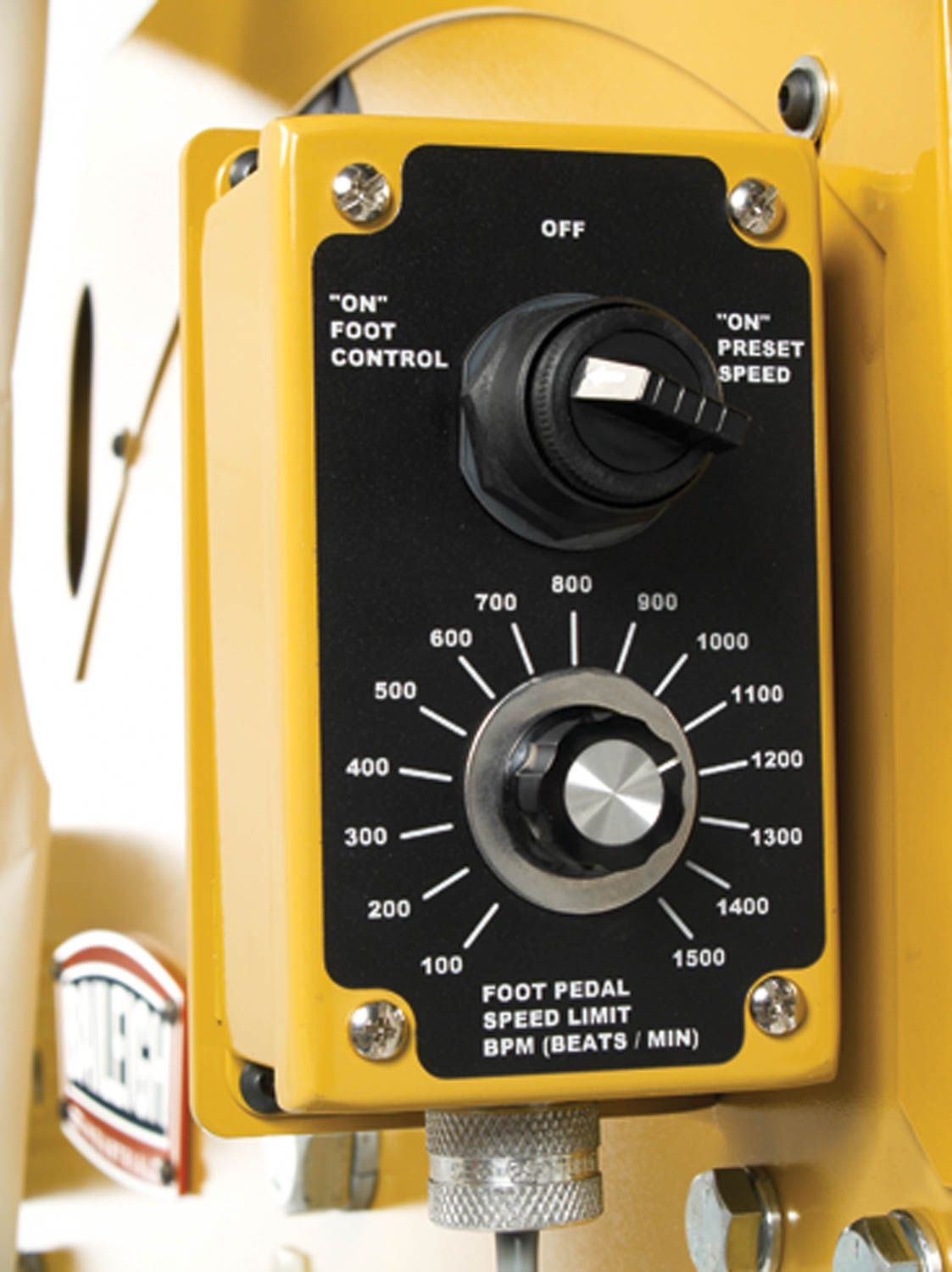

Speed: 0 – 1,500 Beats/min.

Length of Stroke Adjustment: .177″ – .550″

Throat Depth: 19″

Tooling Height Adjustment: 2″

Power: 220v / 1ph

Mechanical Specifications:

Shipping Dimensions: 60″ x 60″ x 84″ H

Shipping Weight: 1,600 lbs.

Contact us for special pricing and availability

FOB Factory

Additional Information

Weight1600 lbs
