Milltronics Partner 3-Axis Vertical CNC Milling Machine with Centurion 6 Control

$26,500.00


Shipping: Add to Cart to Calculate

In stock

Make Offer

    SKU: 9229 - MB20-A, Series C

    Inventory #: 9229

    Categories: ,

    Condition:

    Type:

    Brand:

    Description

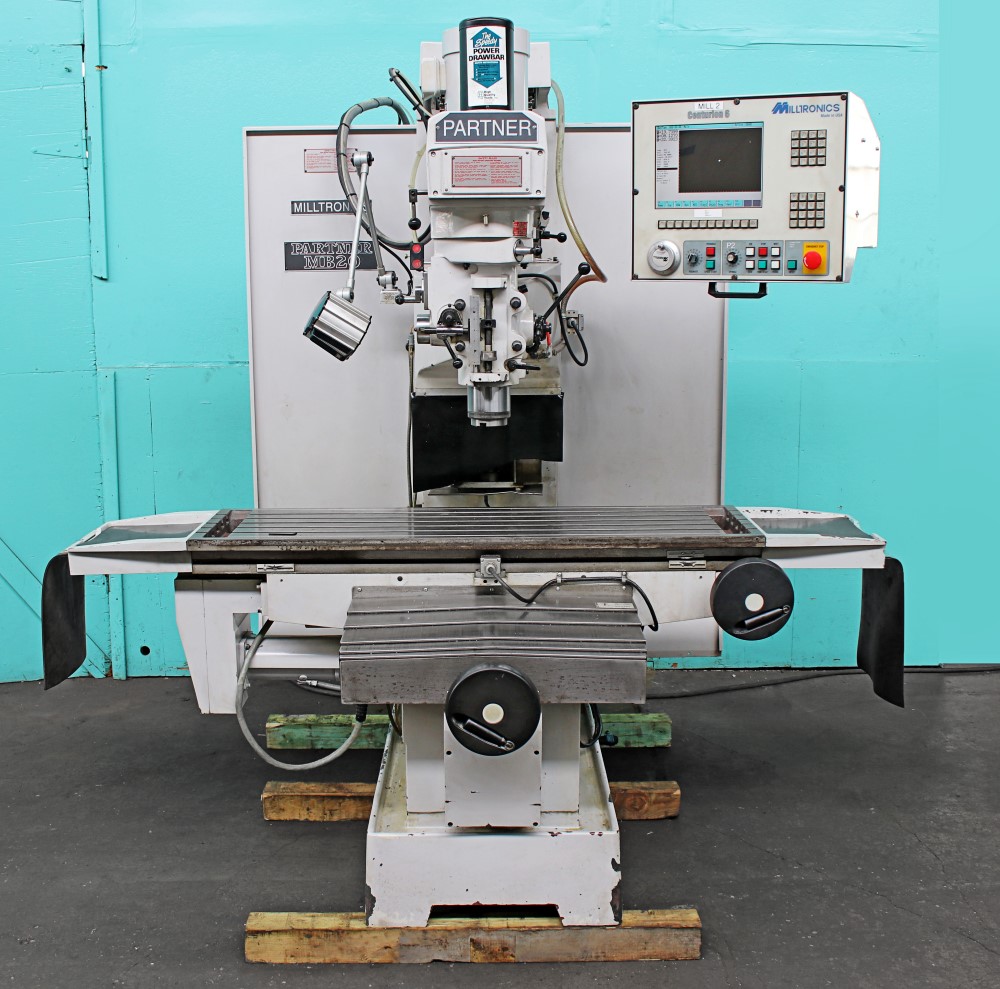

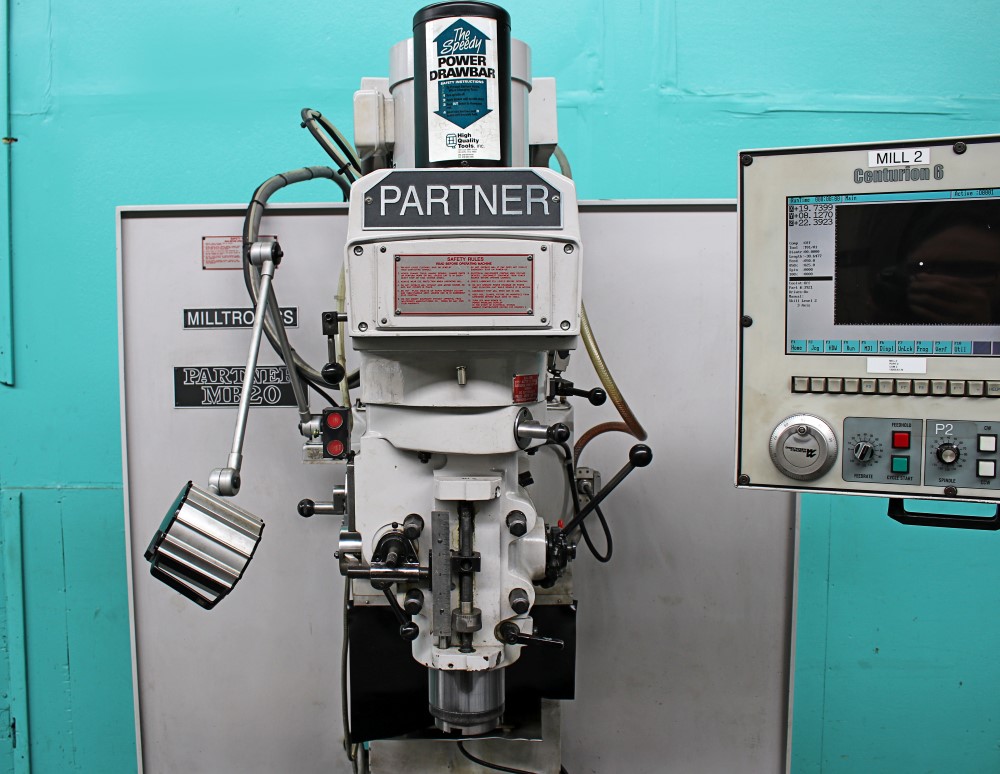

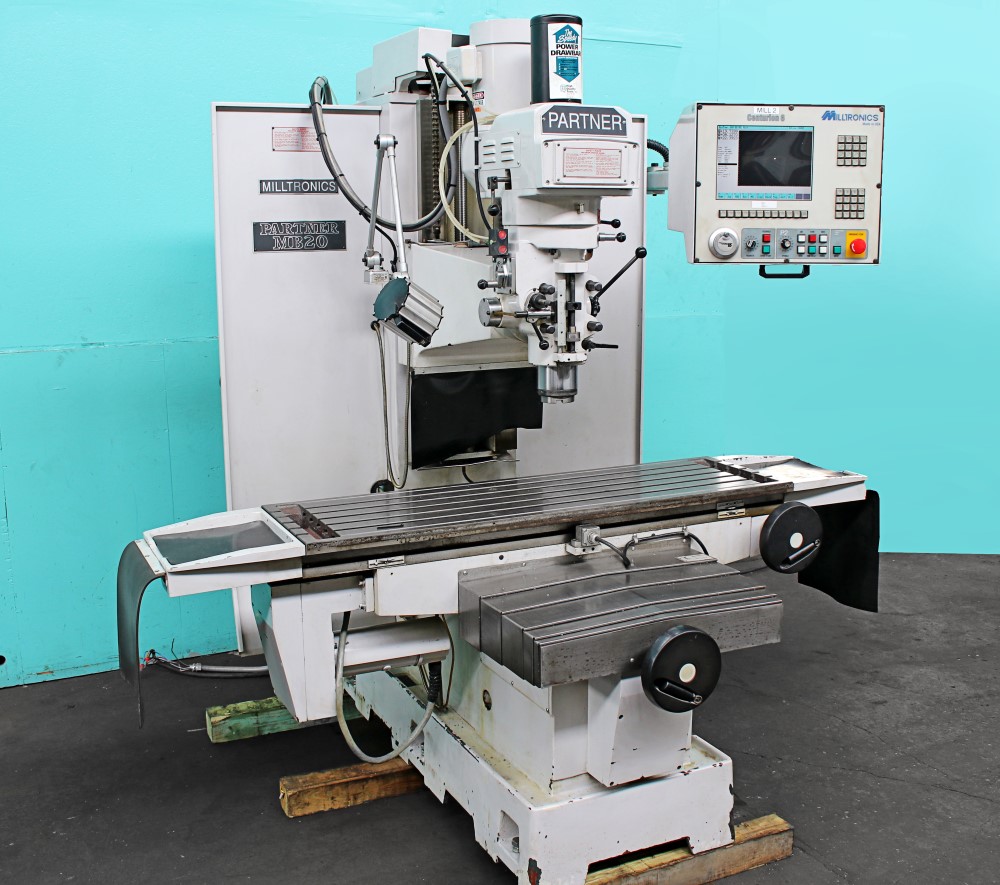

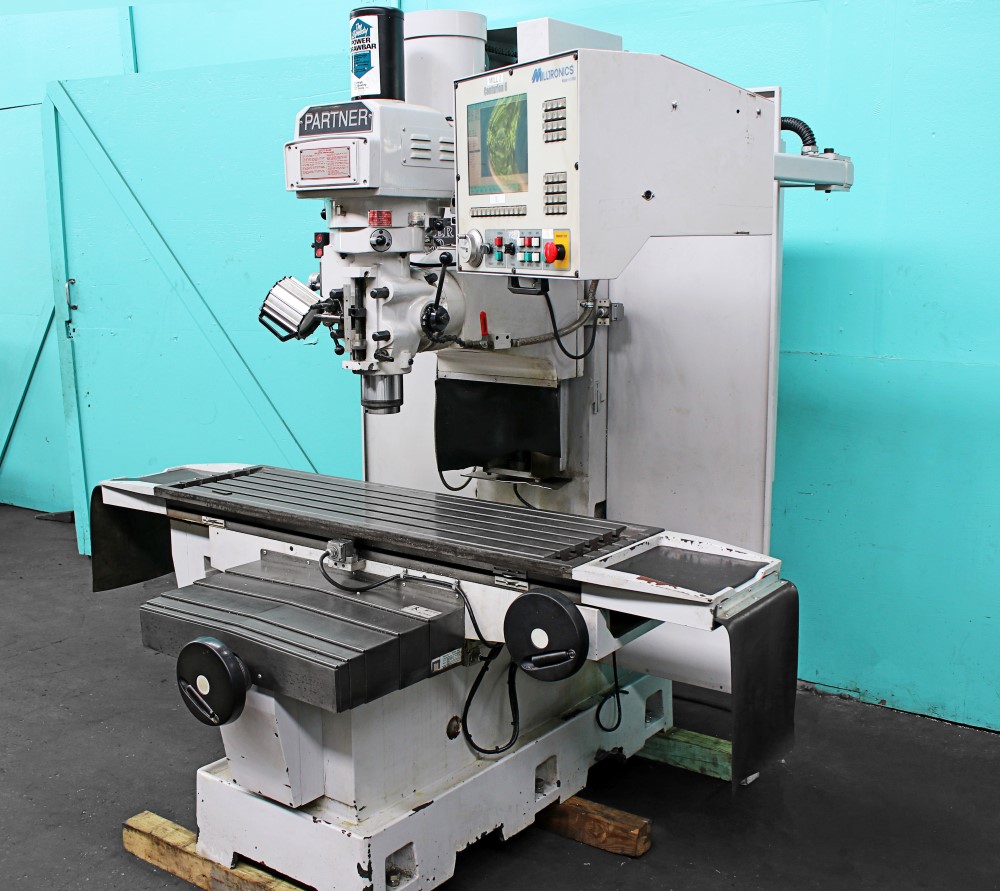

    Milltronics Partner 3-Axis Vertical CNC Milling Machine with Centurion 6 Control

    Inventory # 9229

    Model: MB20-A Series C

    S/N: 5273

    Made in USA

    Specifications:

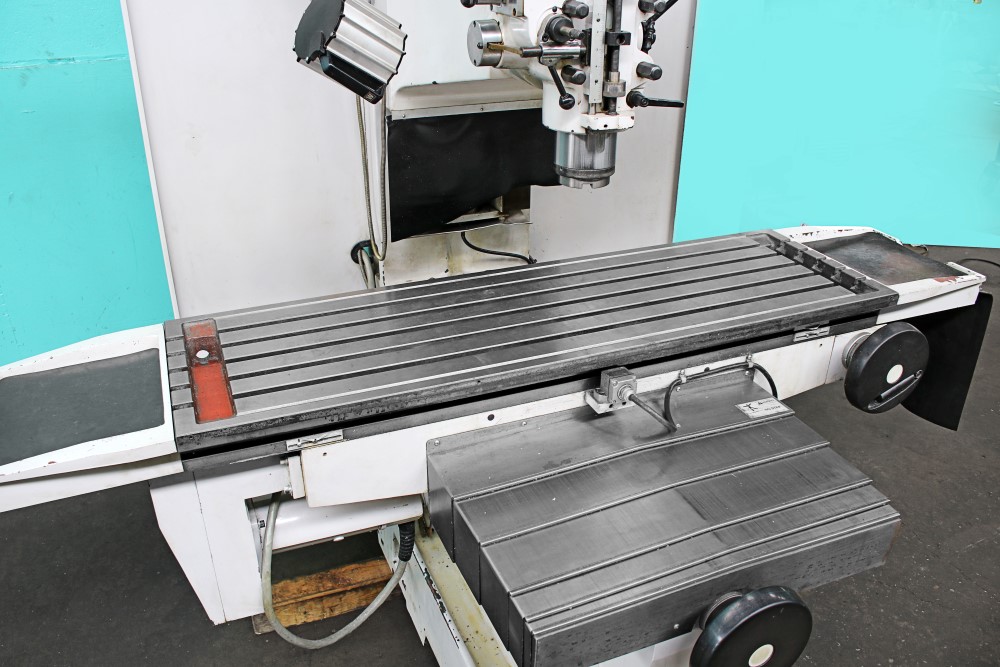

    Table Size: 54″ x 16″

    Travels:

    X-Axis: 40″

    Y-Axis: 20″

    Z-Axis: 24″

    Quill Travel: 6″

    Rapid Traverse: X,Y: 500 ipm; Z: 300 ipm

    Maximum Feedrate: 300 ipm

    Throat Distance Spindle-To-Column: 21″

    Spindle to Table Top: 3 3/4″ – 27 3/4″

    Max. Table Load: 2,500 lbs.

    T-slots: (5) .63″

    Spindle Speeds:

    Low: 60 – 500 rpm

    High: 500 – 4,000 rpm

    Spindle Taper: Cat 40

    Motor: 7.5 HP / 240v, 440v / 3ph

    Equipment Included:

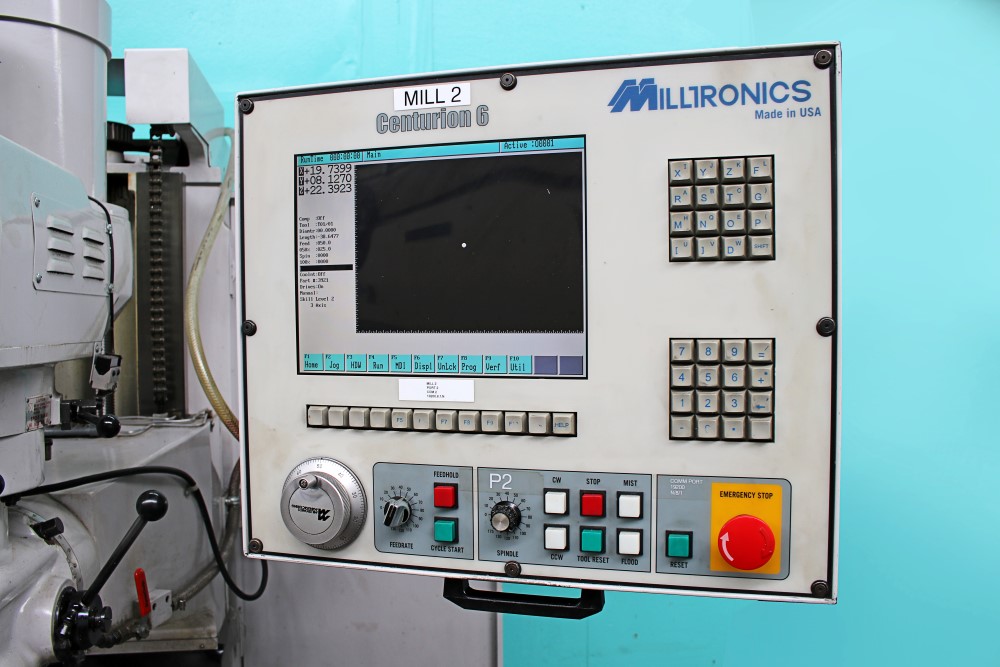

    Centurion 6 CNC Control

    Speedy Power Draw Bar

    Work Light

    Mechanical Specifications:

    Dimensions: 83″ x 85″ x 85″ H

    Weight: approx. 7,000 lbs.

    New Replacement Cost: $54,900.00

    FOB Our Baltimore, MD Warehouse

    Additional information

    Weight 7500 lbs
