Lucas Precision CNC Horizontal Boring Mill, WFC 10

Shipping: Add to Cart to Calculate

Make Offer

    SKU: WFC 10

    Inventory #: 8235

    Categories: ,

    Condition:

    Type:

    Brand:

    Description

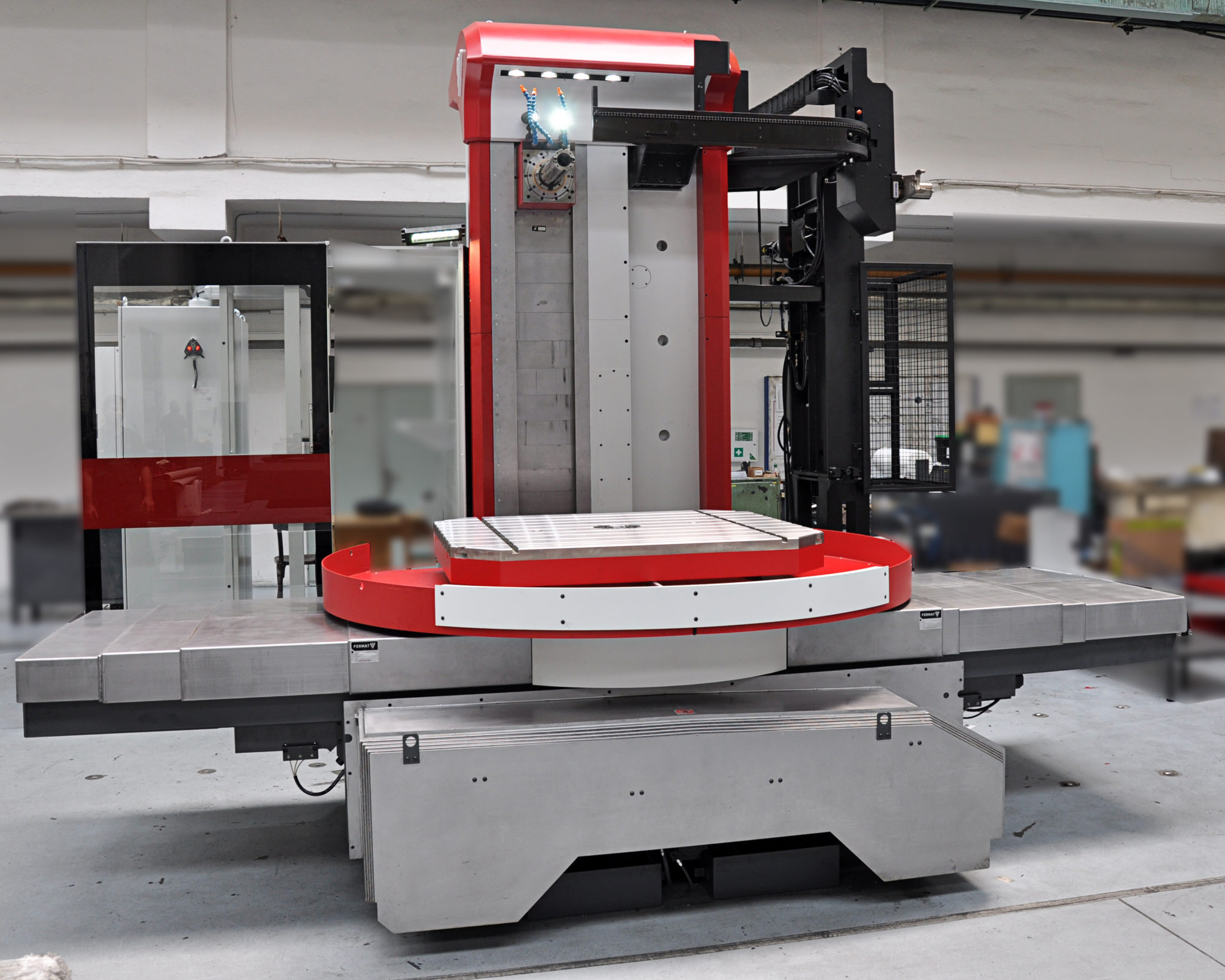

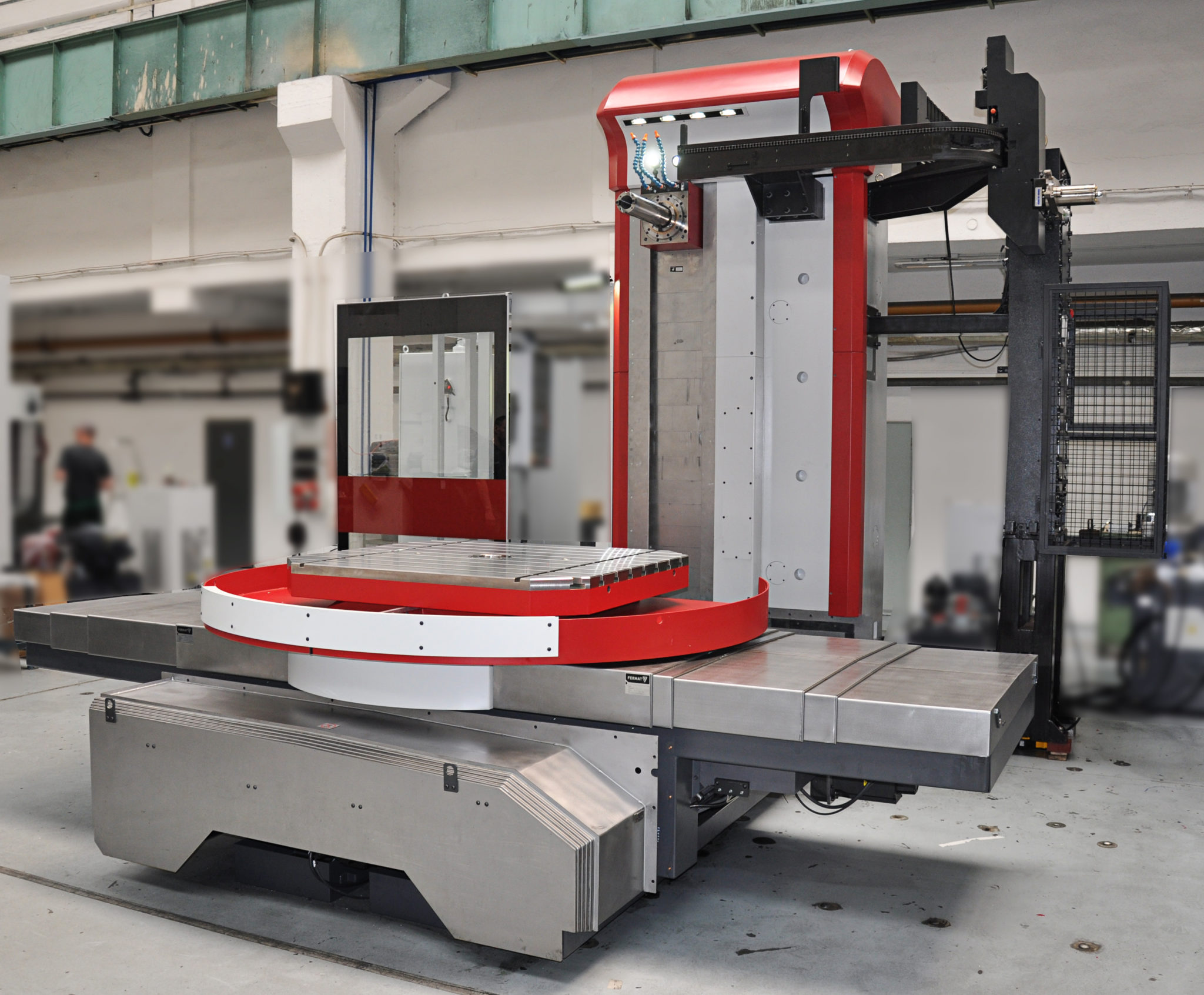

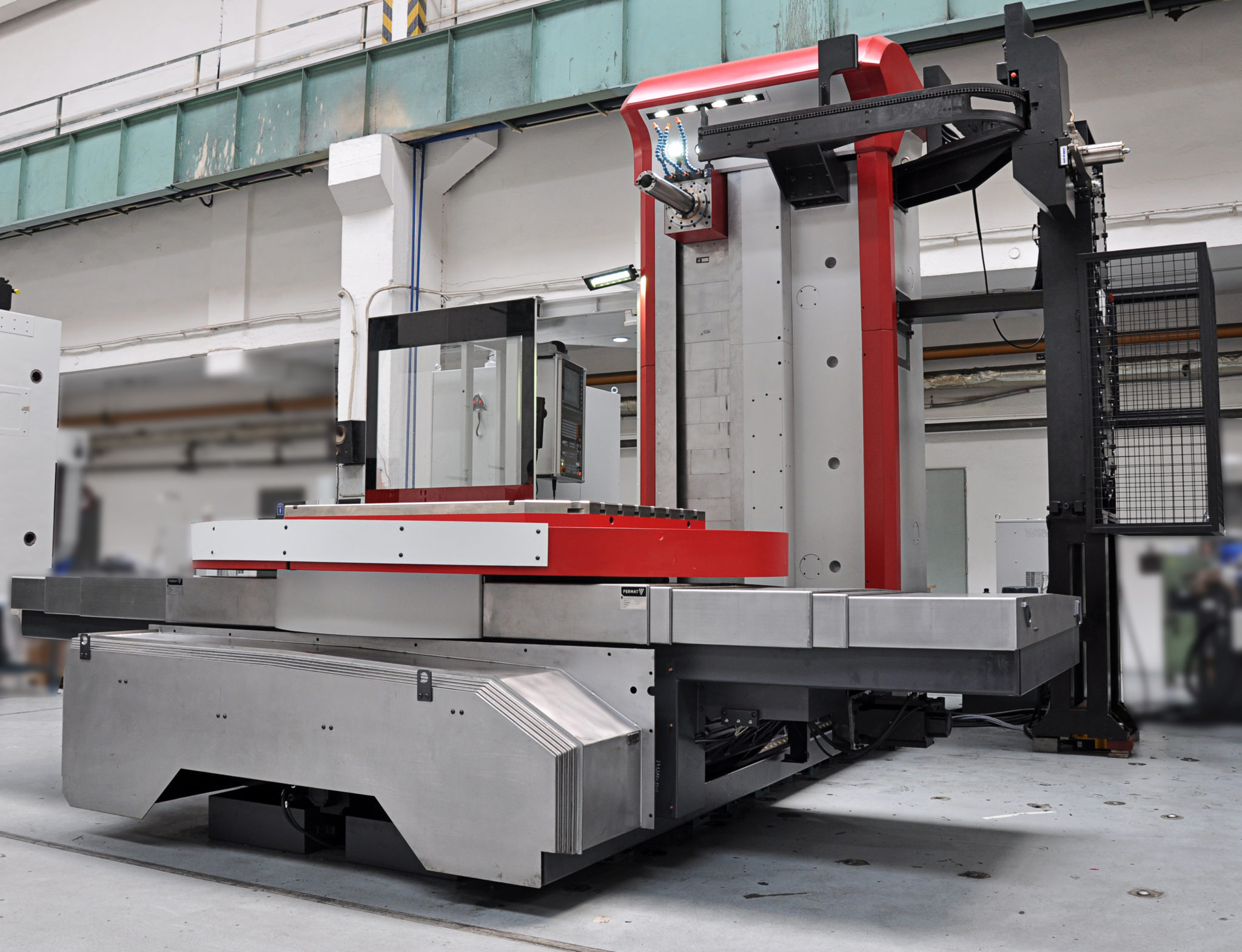

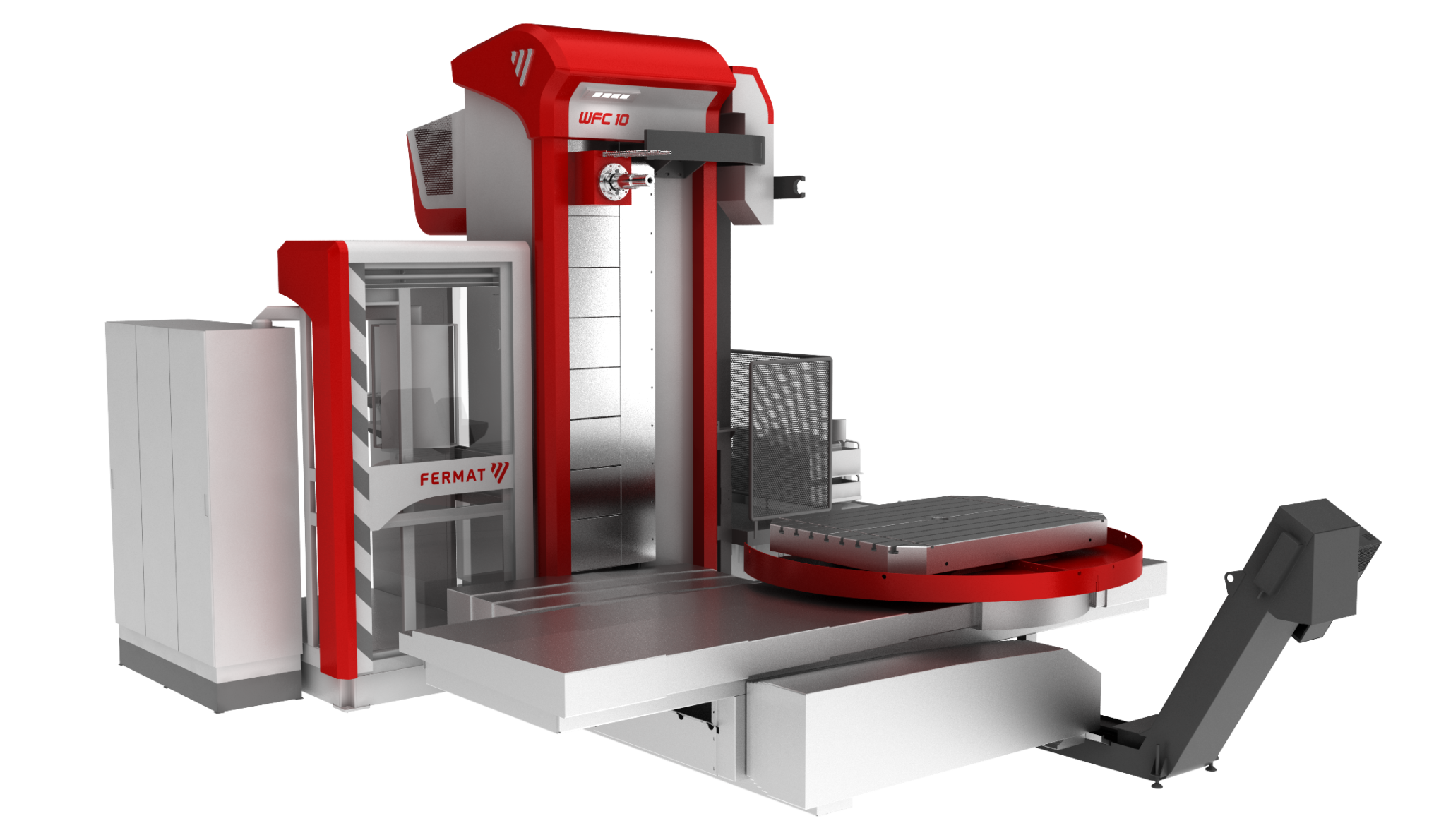

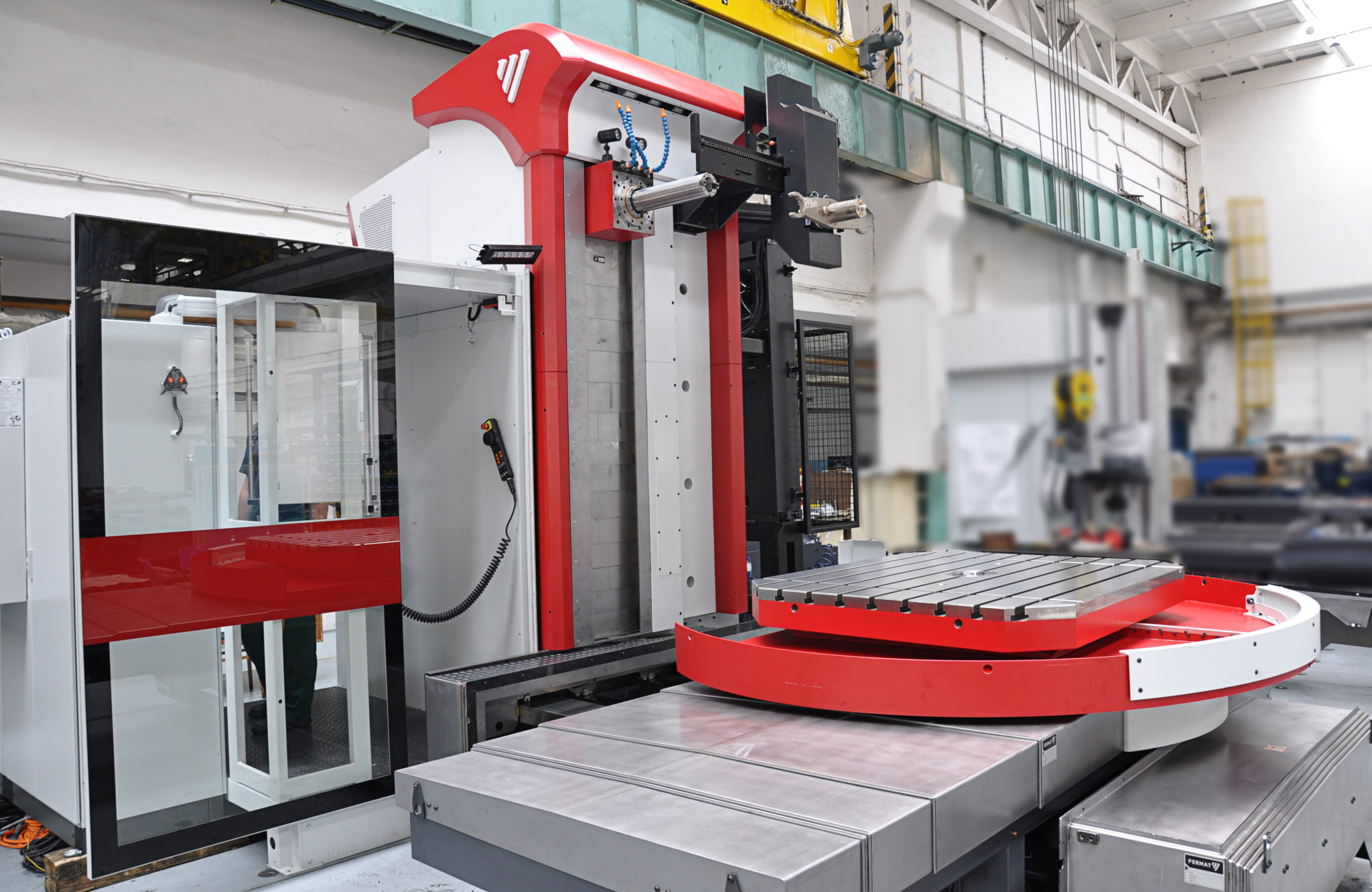

    Lucas Precision CNC Horizontal Boring Mill, WFC 10

    Inventory # 8235

    Model: WFC 10

    *Aside from the standard horizontal boring mill setup, a highspeed milling configuration is offered as well

    Description:

    The WFC 10 CNC machine is a model of horizontal boring mill equipped with a spindle diameter of 100mm (3.93″). It is the smallest horizontal boring machine from the Fermat-Lucas Precision production suitable for machining of smaller and medium sized work pieces up to 5,000 kg (11,023 lbs.)

    WFC 10 is built in a standard configuration with a fixed column, moveable spindle and crosswise moveable rotary table. The combination of operator friendly, high cutting performance and lower cost makes the WFC 10 CNC very popular

    Specifications:

    Diameter of Spindle: 3.93″ or 4.33″

    Taper of Spindle: ISO50 / BT50 / CAT50

    Range of Spindle Speed: 3,000 RPM (4,000 RPM)

    Main Power (CNC Heidenhain or Siemens CNC): 26 HP / 39 HP

    Max. Torque (CNC Heidenhain or Siemens CNC): 701′ /lbs. / 1,052′ /lbs.

    Main Power (CNC Fanuc): 29.5 HP / 35 HP

    Max. Torque (CNC Fanuc): 607′ /lbs. / 716′ /lbs.

    X Cross Travel of Table: 49″ / 79″

    Y Vertical Travel of Headstock: 49″ / 67″ / 79″

    Z Longitudinal Travel of Column: 49″

    W Spindle Travel: 29″

    Rapid Feed X, Y, Z – Box Guideways: 315″ /Min. (Opt. 551″ /Min.)

    Rapid Feed X, Y, Z – Linear Guideways: 315″ /Min. (Opt. 787″ /Min. or 1,181″ /Min.)

    Rapid Travel W: 315″ /Min.

    Rapid Feed B: 2 RPM (Opt. 4 RPM)

    Max. Table Load: 118 lbs. / 197 lbs.

    Table Size: 39″ x 44″ / 49″ x 55″ / 55″ x 63″ / 49″ x 71″

    Contact us for special pricing and availability

    FOB Factory
