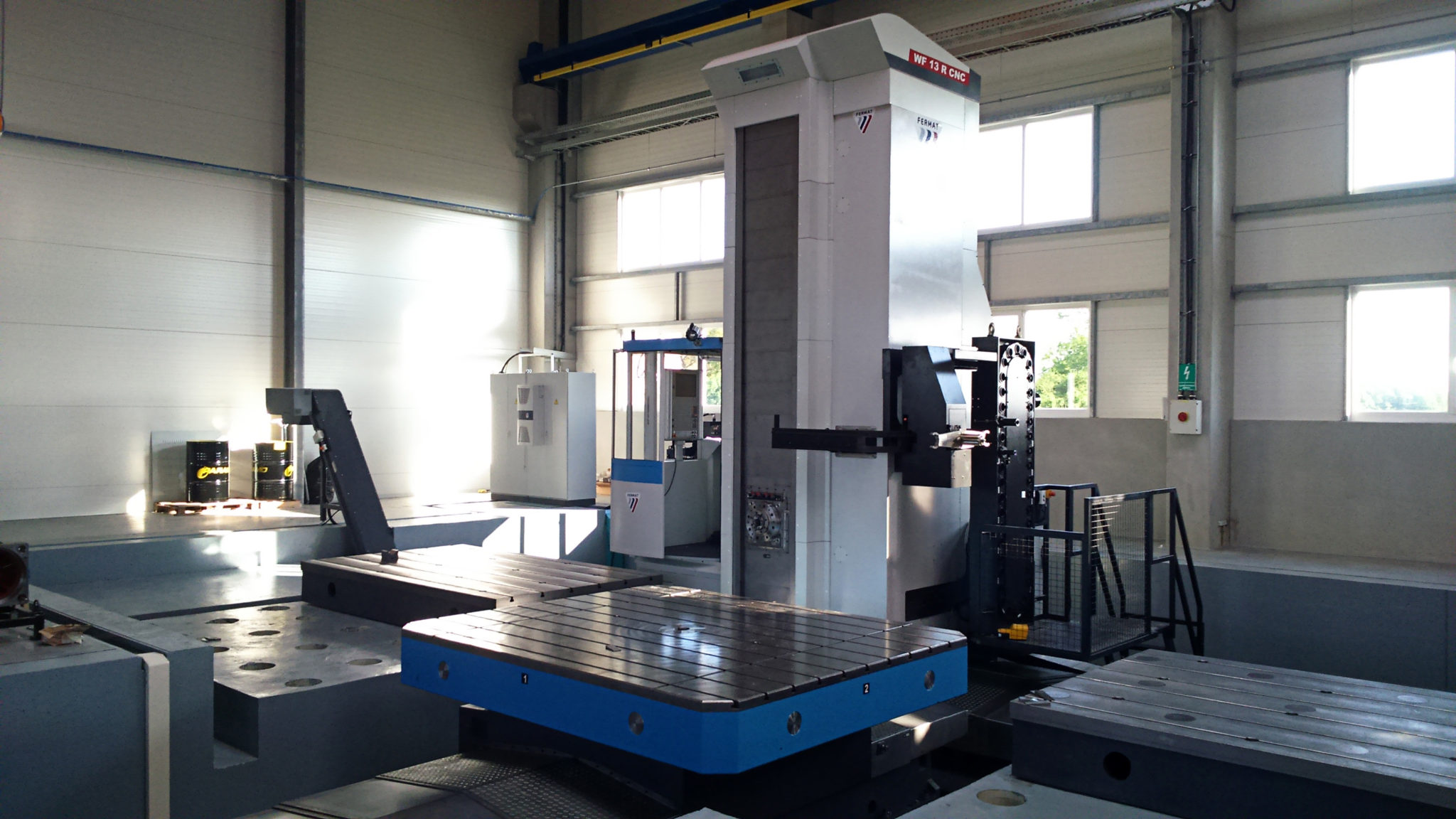

    Lucas Precision CNC Horizontal Boring Mill, WF 13R

    Inventory # 8234

    Model: WF 13R

    Description:

    A floor type horizontal boring mill WF type is designed for precise and highly efficient coordinate boring, drilling, milling, and cutting of threads of big and heavy work pieces up from cast iron, cast steel, and steel. The machine can be equipped with floor plates and/or rotary table(s) according to machine requirements

    Specifications:

    Diameter of Spindle: 5.11″ / 5.9″

    Taper of Spindle: ISO50 / BT50 / CAT50

    Range of Spindle Speed: 3,000 RPM (4,000 RPM)

    Main Power (CNC Heidenhain or Siemens CNC): 55 HP

    Max. Torque (CNC Heidenhain or Siemens CNC): 1,548′ /lbs.

    Main Power (CNC Fanuc): 50 HP

    Max. Torque (CNC Fanuc): 1,742′ /lbs.

    X Cross Travel of Column: 157″ – 866″

    Y Vertical Travel of Headstock: 79″ / 98″ / 118″ / 138″

    Z Ram Travel: 28″

    W Spindle Travel: 29″

    Rapid Feed X, Y: 787″, 472″

    Rapid Feed Z, W: 394″

    Rotary Table (Optional):

    Table Size: 63″ x 71″ / 71″ x 87″ / 71″ x 102″ / 79″ x 94″

    V Longitudinal Travel of Table: 79″ – 118″

    Rapid Feed, V Axes: 472″ /Min.

    Rapid Feed, B Axes: 2 RPM

    Contact us for special pricing and availability

    FOB Factory
